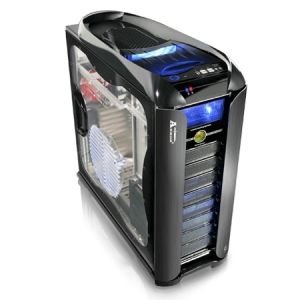

ThermalTake Armor+ Aluminium Chassis w. Liquid Cooling Inc. Side Window w. 23cm Fan, no PSU - Black

IMG 1 of 1
No Longer Available
Part Number:
83673
(?) Brand:
ThermalTake Web Site
Manuf No:
VH600LBWS
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VH600LBWS, CASEVH600LBWS, CASE-VH600LBWS



Patent Information
Country Patent No.
Taiwan
M324401
D122247




Optimized design for both liquid cooling and air cooling system
Sliding hood on top for easy LCS maintenance
10 PCI slots design for quad-graphic card configuration
Tool free design for 5.25 device and PCI slot.
Sliding motherboard tray
Independent thermal management for CPU, VGA & HDD.
Cable management system for better cable routing and internal air flow
Evolutionary adjustable PSU supporting bridge
MicroATX, ATX, Extend-ATX supported



Organized HDD cable management
Support up to 14
drive bays
(7 5.25 and 7 3.5 device)
Sliding Motherboard tray



High efficiency HDD cooling module
23 cm fan installed for extra VGA cooling
Swappable HDD module/ Fan module
Swappable VGA fan holder
Removable HDD cage
7 Modularized HDD tray
7 5.25 slot-in to
lock device.
10 Screwless PCI slots
with preserved
screw holes
Extra bottom space for better expandability. (After HDD/Fan module removed)
Adjustable PSU
supporting bridge


  With the pre-integrated liquid cooling system (radiator, pump, tank, water-block, tube) in the chassis, user can minimize installation time while provide best cooling performance on the CPU and other heat source.

Refill Reservoir: Transparent reservoir contains 350 c.c.
of liquid capacity,
easy to refill
Silent VR Fan: Adjustable 120x120x25mm
blue LED fan, (1600~2400RPM)
P500 Pump:
"Flow rate : 500L/hr, can easily handle extra water blocks for GPU, memory, HDD or chipsets.
Motorsports Radiator:
Dimple Tube Technology with louvered fin radiator greatly increases the surface area for added cooling capability
Flow TX:
Clearly shows the movement of the coolant
Quick Connector: Automatic non-spill valves, robust material one hand operation
CPU Water Block:
Pure copper waterblock designed with brazing technology



Bottom (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA or
120 x 120 x 25 mm Fan, 1300rpm, 17dBA



Front (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA or
120 x 120 x 25 mm Fan, 1300rpm, 17dBA

VGA (intake) :
140 x 140 x 25 mm Fan (optional)
,or 120 x 120 x 25 mm Fan,
140 x 140 x25mm,
1000 rpm, 16dBA
120 x 120 x25mm,
1300 rpm, 17dBA




Model
VH600LBWS
Case Type
Super tower w/liquid cooling system
Dimension (H*W*D)
600 x 245 x 625 mm (23.6 x 9.6 x 24.6 inch)
Net Weight
20.8kg (45.9lb)
Side Panel
Transparent window
Sliding Motherboard Tray
Yes
Cable Management

Yes

Sliding hood
Yes
Adjustable PSU bridge
Yes
Material
Front door: Aluminum/ Chassis: 1.0mm SECC
Color
Black
Cooling System

- Front (intake) :
140 x 140 x 25mm blue LED fan, 1000rpm, 16dBA or
120 x 120 x 25mm fan
- Rear (exhaust) :
120 x 120 x25 mm TurboFan, 1300rpm, 17dBA
- Side (intake) :
230 x 230 x 20mm blue LED fan, 800rpm, 15dBA
- Bottom (intake) :
Two 140 x 140 mm fans (optional) or
Two 120 x 120mm fans (optional)
- VGA (intake) :
140 x 140 x 25mm fan (optional)
or 120 x 120 x 25mm fan (optional)

Motherboards
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX)
Drive Bays
-5.25 Drive Bay
-3.5 Drive Bay
-3.5 Drive Bay(Hidden)

7( 3 occupied by LCS Module )
1(Converted from one 5.25 drive bay)
7
Front I/O
e-SATA connector x 1, USB2.0 x 4, IEEE 1394 Firewire x 1, HD Audio
Expansion Slots
10
Liquid Cooling System Application
Liquid Cooling System:
- Three 5.25 Drive Bay design:
liquid cooling system built inside
- Quick Disconnect Connector:
Automatic non-spill valves, robust material one hand operation
- Performance Motorsports radiator:
(A) Dimension of radiator : H 153 x W 120 x T 28 mm
(B) Adjustable 120mm blue LED silent fan (1600~2400RPM)
- P500 liquid pump :
Powerful DC 12V liquid pump (500L/hr)
- All copper water block:
For Intel P4 775/478 and AMD AM2/K8
- Flow TX:
Flow meter for liquid cooling system
- Reservoir:
Contains 320 c.c. of liquid capacity
- Water tube:
Transparent UV tube (3/8") , industrial-grade rubber tube
(3/8", pre-assembled)
