| Features |

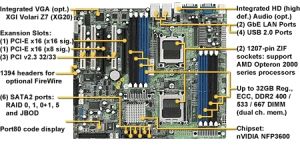

| A 2P performance server/workstation in an ATX form factor? YES. The Thunder n3600B (S2927) offers support for dual AMD Opteron 2000 Series processors, up to (8) DDR2 Registered DIMMs, dual Gigabit Ethernet ports, has built-in audio and video, and support for PCI Express x16 cards in an SLI configuration. Other great features include SATA2/3G with RAID, built-in POST code display, remote management (IPMI 2.0) option and multiple PCI slots for expansion flexibility. |
| Processor |
Dual 1207-pin sockets support AMD Opteron (Rev. F) 2000 series processors
Uses the standard 3 1/2"/ 89mm socket connector
Up to 1.0 GHz Hyper-Transport link support |
| Chipset |
nVIDIA NFP3600; SMSC SCH5017 |
| Memory |
Dual channel memory bus
(8) 240-pin DDR2 DIMM sockets for up to 32GB
Supports reg., ECC, DDR2 400/533/667 DIMMs |
| Expansion Slots |
(1) PCI-E x16 (x16 signal; PCI-E1)
(1) PCI-E x16 (x8 signal; PCI-E2)
(3) PCI v2.3 32-bit/33MHz slots (PCI 1~3)
Total of five usable expansion slots |
| Integrated I/O Interfaces |
(1) Floppy connector
(4) USB v2.0 ports (via cable)
(1) COM port (via cable)
Tyan 2 x 9-pin front panel pin header |
| Back Panel I/O Ports |
(1) Stacked PS/2 mouse and keyboard ports
(1) COM1 connector
(1) 15-pin VGA port (optional)
(3) Audio jacks (from bottom: line out <green>, line in <blue>, MIC <pink> (optional)
(2) Double-decked USB 2.0 ports and one RJ45 10/100/1000 Base-T port with link/activity LED |
| Integrated Audio |
Realtek ALC262 audio CODEC
HD Audio (High-Definition Audio) supported
2 x 5 pin header for front panel audio connector
CD-in connector |
| Integrated PCI IDE |
Single channel master mode supports up to two IDE devices; support for ATA-133/100/66/33 IDE drives and ATAPI compliant devices
|
| Integrated Serial ATA Controller |
(3) SATA2 host controllers embedded
(6) SATA2 ports at 3.0Gb/s per direction per ch.
Serial ATA 2.0 specification compliant
nVIDIA MediaShield supports for RAID 0, 1, 0+1, 5, and JBOD
HDD LED connector
|
| System Management |
SMSC SCH5017 w/ 2x EMC6D103
2x CPU fan and 2x 4-pin system fan headers, w/tachometer input and w/ auto fan control
Temperature & voltage monitoring
Watchdog timer support
Port 80 code display LED |
| Integrated LAN Controllers |
Two NFP3600 integrated MAC with two Marvell 88E1116 single port Gigabit Ethernet PHY
- Integrated TCP Offload Engine (TOE)
- IEEE802.3 compliant, WOL/PXE support
- Pin header for front panel LAN LED |
| Integrated PCI 1394 |
VIA VT6307/6308 PCI FireWire (1394) controller
Two 1394 ports (via cable) |
| BIOS |
AMI BIOS on 8Mbit Flash
Supports ACPI 2.0
PnP, DMI 2.0, WfM 2.0 Power Management |
| Power |
EPS 12V support, onboard 4-phase VRD
Universal 24-pin + 8-pin power connectors
4-pin auxiliary power connector |
| Form Factor |
ATX footprint (12" x 10.2"; 305mm x 259mm) |
| Regulatory |
FCC Class B (Declaration of Conformity)
CE (Declaration of Conformity)
|
| |
