| MAIN |
|
| Product Type |

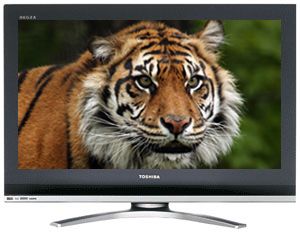

DIGITAL LCD TV
|
| Screen Type |
32
|
| Aspect Ratio |
16:9
|
| Dynamic Contrast Ratio |
8000:1
|
| Panel Contrast Ratio |
2000:1
|
| Brightness |
500cd/m2
|
| Resolution |
1366 x 768
|
| Viewing Angle (Degrees) |
178
|
| Panel Response Speed (ms) |
8
|
| SIGNALS |
|
| Receiving System |
|
|
Digital
|
DVB-T
|
|
Analogue
|
PAL I, BG, DK, SECAM BG, NTSC M, B/G 4.43
|
| Colour System |
PAL, SECAM, NTSC 3.58/ 4.43
|
| Video Signal |
480i/480p (60Hz), 576i/576p (50Hz), 720p (50/60Hz), 1080i (50/60Hz), 1080p (50/60Hz) through HDMI^
|
| RGB Signal* |
|
|
VGA: 640 x 480/ (60/75Hz)
|
Yes
|
|
SVGA: 800 x 600/ (60/75Hz)
|
Yes
|
|
XGA: 1024 x 768/ (60/70/75Hz)
|
Yes
|
|
W-XGA: 1280 x 768/ (60/75Hz)
|
Yes
|
|
W-XGA: 1360 x 768/ (60Hz)
|
Yes
|
|
S-XGA: 1280 x 1024/ (60/75Hz)
|
Yes (Compressed)
|
| VISUAL |
|
| Major Technology |
Meta Brain Pro
|
| Colour Management |
3D
|
| Comb Filter |
3D Y/C (PAL & NTSC)
|
| AUDIO |
|
| Sound System |
SRS WOW
|
| Stereo System |
Nicam B/G, I, D/K, & German Stereo B/G, D/K
|
| Speaker System |
Jet Slit Speaker
|
| Speakers |
Main (6 x 12cm) x 2
|
| Audio Output (10% RMS) |
10W x 2
|
| CONNECTION |
|
| Antenna Input |
1 (Digital & Analogue)
|
| EXT 1 |
Input: Component Video + Composite Video + RCA Audio
|
| EXT 2 |
Input: S-Video + Composite Video + RCA Audio
|
| EXT 3 |
Input: HDMI + RCA (Audio Common Use with PC Input)
|
| EXT 4 |
Input: HDMI
|
| PC Input |
D-Sub 15-Pin + RCA Audio (Audio Common use with HDMI)
|
| Digital TV Output |
Composite Video + RCA Audio
|
| Digital Audio Output |
Optical (Dolby Digital/PCM) + Coaxial (Dolby Digital/PCM)
|
| Headphone |
3.5mm Mini Jack
|
| FEATURES |
|
| Teletext |
Yes
|
| Electronic Program Guide |
7-Day ***
|
| On Screeen Display |
|
|
Digital
|
English
|
|
Analogue
|
English/ French/ Persian/ Russian/ Simplified Chinese/ Malay/ Vietnamese/ Thai/ Arabic
|
| Hotel Mode** |
Yes
|
| Swivel Stand |
15o Left & 15o Right
|
| GENERAL |
|
| Automatic Voltage Regulator |
220-240V 50Hz
|
| Power Consumption (W) |
175
|
| Standby Power Consumption (W) |
< 1
|
| Dimension (W x H x D) mm without Stand |
800 x 545 x 116
|
| Dimension (W x H x D) mm with Stand |
800 x 592 x 285
|
| Weight (Net) kg without Stand |
15.2
|
| Weight (Net) kg with Stand |
16.5
|
| OPTIONAL ACCESSORIES |
|
| Wall Mount Bracket |
WAL11C/WAL12
|
| WARRANTY |
|
| 2 years Parts & Labour warranty **** (37"/ 96cm or above - pick up and return within 15km of a Toshiba Authorised Service Centre) |
| ^ The HDMI input is designed for best performance with 1080i (50/60hz), 1080p (50/60hz) high performance video signal, but will accept and display 480i, 480p, 576i, 576p, 720p (50/60hz) and VGA signals. |
| * These signal formats are converted to match the number of pixels of the panel. Small text may not be displayed properly. |
| ** Hotel Mode is designed for use in hotels only. |
| *** Subject to the availability of service from braodcasters. |
