Foxconn BlackOps Motherboard

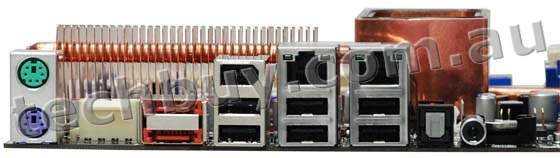

BLACKOPS delivers the ultimate in computing power for todays' most demanding applications, and enables greater agility and control through specialist hardware and BIOS features. Based on the Intel X48 chipset and supporting processors up to 2000MHz FSB (via overclocking), BLACKOPS is designed for high-performance computing 3* PCIe x16 Gen2.0 slots with CrossFireX support enable powerful graphics configurations, whilst unique enthusiast features such as the 4in1 Quantum Cooler enable air/water/LN2 cooling of NB, SB and VRM areas. The highly-configurable Quantum BIOS reveals a huge range of performance settings and tuning capabilities, and coupled with the robust 8 phase Digital PWM, enthusiasts can take their PC to new overclocking heights! The dedicated SONAR daughter card provides high-quality 7.1 channel HD audio, whilst Dual Gigabit LAN, eSATA, FireWire, USB2.0 and SATA RAID are all integrated onboard. Special accessories include the Quantum Flow GPU cooling system, for improving air-flow around graphics cards, and the Quantum Lap motherboard tray for easier access to the motherboard when on the testing bench..

Dual Channel DDR3 1600
Supports Dual Channel DDR3 1600/1333/1066/800MHz, 8GB Max. memory which unlocks more performance when overclocking CPU with memory, by removing the bottleneck between memory and system bus.

ATI CrossFireX support
3* PCIe x16 slots (2* x16, 1* x4 bandwidth) with ATI CrossFireX support.
ATI CrossFireX technology harnesses the power of two ATI graphics cards simultaneously to deliver ultra-smooth 3D graphics with more graphical detail than ever before. Ideal for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

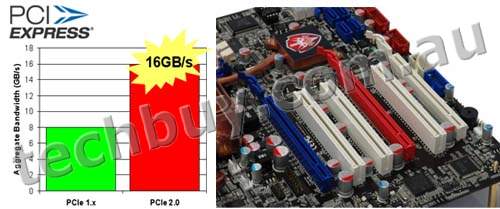

PCIe Generation 2.0 support
PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth, 8GB/s in each direction. PCIe Gen2.0 is backwards compatible, and so existing PCIe Gen1 cards can be plugged into Gen2.0 slots. PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth, 8GB/s in each direction. PCIe Gen2.0 is backwards compatible, and so existing PCIe Gen1 cards can be plugged into Gen2.0 slots.

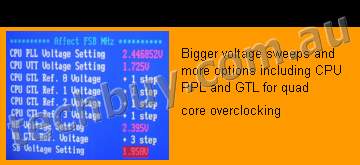

Quantum BIOS
Quantum BIOS provides new features and enhancements for overclocking including context-driven menus, more detailed memory configurations and enhanced quad-core overclocking support

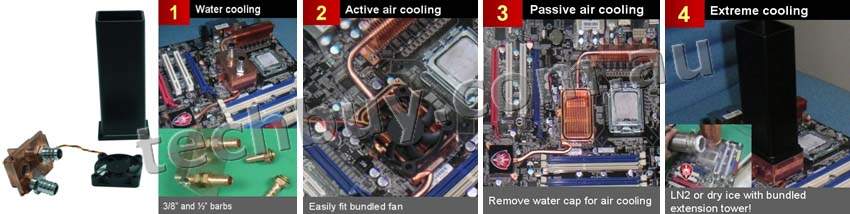

4in1 Quantum Cooler
The unique all-copper modular designed 4in1 Quantum Cooler enables effective cooling of the NB, SB and VRM areas. Swap out the NB parts to configure it for air, water or more extreme forms of cooling!

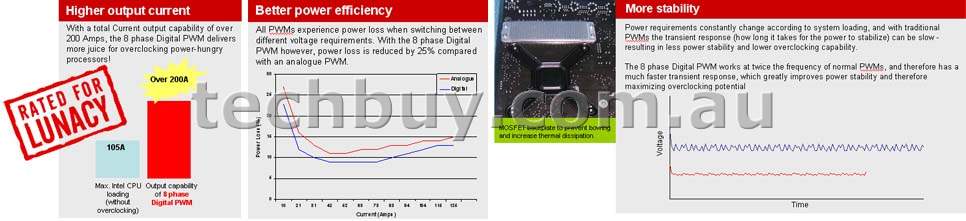

8 phase Digital PWM
8 phase Digital PWM provides more robust power delivery, standing up to the demands of enthusiasts and overclockers. This finely-tuned digital power management system operates with better power efficiency, a faster and more stable response to changes in power consumption, and higher output current capability to support extreme overclocking.

SONAR Audio
The SONAR daughter card provides professional quality audio for games, movies and other multi-media content. Separating audio circuitry from the motherboard improves signal quality and eliminates interference from power regulation components.
The integrated Realtek ALC885 provides 8 channels of High Definition Audio (HDA) with an impressive 106dB SNR (Signal to Noise Ratio).

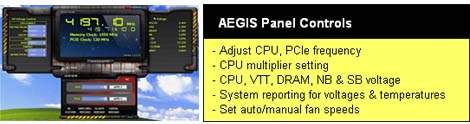

AEGIS Panel
AEGIS Panel is a Windows based innovation tool to provide monitoring system information about fan speeds, temperatures, voltages CPU Clock, etc. It also quick and easy overclocking options, with a range of frequency and voltage adjustments.

100% SOLID Capacitor & Ferrite Choke Design
Foxconns 100% SOLID Capacitor design improves component reliability, by replacing electrolytic capacitors with solid versions; this removes the risk of capacitor failure damaging the PCB and surrounding components, whilst improving overall system performance and stability. Solid capacitors are much more durable than standard electrolytic versions, typically lasting around 6 times longer and withstanding higher operating temperatures.

Ferrite Choke
Ferrite Choke design improves power delivery to the motherboard. By using an iron-oxide core, the Ferrite Choke design can hold energy at a higher frequency than traditional iron cores, resulting in less power loss, and more stability and performance capability for your system, especially when under heavy loading.

Unique accessories for enthusiasts
Quantum Lap makes it easy to get to grips with your new system configuration, straight out of the packaging! Assemble the 4 screw legs and set-up your system with ease on the Quantum Lap motherboard tray.

Quantum Flow is a highly configurable and effective VGA cooling solution, which greatly improves airflow around multi-GPU systems loweringgraphics card operating temperatures by around 5C.

The 120mm blue-LED fan with custom mounting bracket is easy to install either by screw-mounting or using the double-sided tape included.
