| CPU & Chipset Features |
   LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Quad-core processors in LGA775 package. Its excellent for multi-tasking, multi-media and enthusiastic gamers with 1600/1333/1066 MHz FSB. Intel Quad-core Processor is one of the most powerful CPU in the world.
|
  Intel X48 Chipset
The Intel X48 Express Chipset is the latest chipset designed to support the next generation 45nm CPU in high-end desktop and workstation platform; and up to 8GB of dual-channel DDR3 1066/800 MHz or DDR2 800/667 MHz memory architecture. It also supports 1600/1333/1066/800 FSB (Front Side Bus), fully dual PCI Express x16 graphics and multi-core CPUs.
  PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
|
| Graphics Technology |
ATI CrossFire Technology
 ATIs CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATIs Catalyst Control Center to rule your CrossFire system.
|
| Memory Feature |
  Dual-Channel DDR3 1800(O.C.)/1333 MHz
The motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/1800(O.C.)/1600/1333/1066/800MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 17 GB/s. Furthermore, the supply voltage for the memory is reduced from 1.8 V for DDR2 to just 1.5 V for DDR3. This voltage reduction limits the power consumption and heat generation of DDR3 which makes it an ideal memory solution.
|
| ROG Exclusive Features |

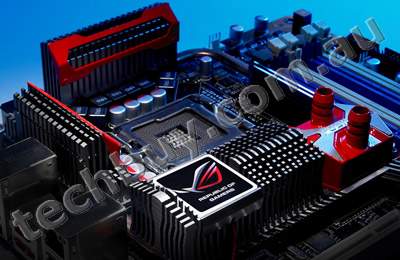

 Fusion Block SystemH2O ready: Water-cooling ready for optimal heat dissipation. The Fusion Block System is a more efficient thermal solution than competing followers with complicated looks. It is a hybrid thermal design that combines the ROGs renouned heatpipe design with the additional ability to connect to a water cooling system. By taking the entire integrated solution into design consideration , with a single connection, user can enjoy exceptional thermal improvement to north bridge, south bridge, and even VRM. We also provide a super optional thermal kit that is used on NB and MOS to improve in heat dissipation. The Fusion Block System is the most versatile, the most efficient, and the most advanced thermal system there is on a motherboard. |

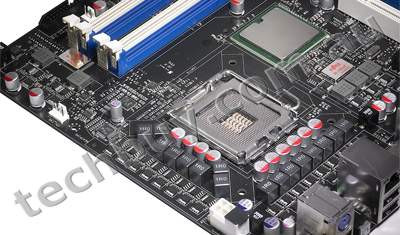

 Extreme EngineNext-generation dynamic multi-phase power management Maximum OverclockingThe Extreme Engine ensures stable power supply under the most demanding load to mission-critical components such as the processor, the system memory and the north bridge on the motherboard. The special power design of the Extreme Engine menas users have the option to venture into high voltage options in the BIOS, allowing for even higher performance enhancements. The "Extreme" ROG motherboard with the Extreme Engine even armed with high-performance ML-Caps, ensuring extra edge during extreme overclocking. Maximum Heat DissipationWith the power efficiency as high as 96%, ASUS ROG motherboards with the Extreme Engine produces less energy loss and less heat. The intelligent power phase can be changed on the fly, yeilding even more heat dissapation. |
 Speeding HDD
Less wait, more game!
Ever wish you could save time waiting for loading games as well as accessing massive data? Speeding HDD allows gamers to achieve HDD transfering speed almost twice as fast as before! And more than just speed, setting it up is just as quick and simple without all troublesome procedures. Very much like dual-channel memory or SLI/Crossfire setup, gamers only need to connect 2 hard disks in the marked SATA connectors, and system would automatically do the rest!
Doubling the hard disk performance is never this easy and affortable. No more waiting for game loads, and get in the action faster with Speeding HDD!
|
 iROG
Intelligent multiple control at hand
The iROG is a special IC which enables several ROG highlitghted functions that gives users full disposal of the motherboard at any stage! This design allows advanced user control and management to be processed purely at a hardware level. iROG greatly increases fun during overclocking for PC enthusiasts and it offers system maintainence and management with more control and efficiency. |
 BIOS FlashBack
Two BIOS ROM. Two BIOS settings. Twice the overclocking flexibility.
Overclockers prayer to have BIOS flexibility is answered! With the new BIOS Flashback, PC enthusiasts can overclock with even more confidence. BIOS Flashback gives overclockers the ability to save two versions of the BIOS simultaneously. Very much like the "SaveGame" function, one BIOS can be used for the overclocking adventure, while the other BIOS is to be stored with any previous version. BIOS Flashback brings the ultimate convenience to overclockers! |
 CPU Level Up
A Simple click for instant upgradeEver wish that you could have a more expansive CPU? Upgrade your CPU at no additional cost with ROGs CPU Level Up! Simply pick the processor you wanted to OC to, and the motherboard will do the rest! See the new CPU speed and enjoy that performance instantly. Overclocking is never as easy as this. |
 Extreme Tweaker
One stop performance tuning shopExtreme Tweakers is the one stop shop to fine-tune your system to optimal performance. No matter if youre looking for frequency adjustment, over-voltage options, or memory timing settings, theyre all here! |
 Voltiminder LED
Friendly reminder on the intentional madness
In the pursuit of extreme performance, overvoltage adjustment is critical but risky. Acting as the "red zone" of a tachometer, the Voltiminder LED displays the voltage status for CPU, NB, SB, and Memory in a intuitive color-coded fashion. The voltiminder LED allows quick voltage monitoring for overclockers.
|
 COP EX
OC in confidence
The COP EX allows overclockers to increase chipset voltages without the worries of overheating. It can also be used to monitor and save an overheating GPU. The COP EX allows more freedom and less constraint for maximum performance achievement.
|
 Loadline Calibration
Stable and optimal power for sustainable CPU overclock
Maintaining ample voltage support for the CPU is critical during overclocking. The Loadline Calibration ensures stable and optimal CPU voltage under heavy loading. It helps overclockers enjoy the motherboards ultimate OC capabilities and benchmark scores.
|
| |
| Sound with Clarity |
|
|
 Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
|
| ROG EZ DIY Features |
External LCD Poster
 Debug and read system problems with an new external look!
The new LCD Poster now posts critical POST information in an ever friendly and flexible external display. When system malfunction occurs, the LCD Poster automatically detects device failure and translates the errors on the LCD during POST. Unlike other competing 2 digit displays, users wont need to read "gibberish" to find out whats wrong.
|
Onboard Switch
 No more shorting pins or moving jumpers
With an easy press during overclock, this exclusive onboard switch allows gamer to effortlessly fine-tune the performance without having to short the pins or moving jumpers! |
EL I/O
 Connect in the dark!
Todays users demand more than good performance-they demand more heart touching services like user-friendly features. The motherboard comes with the EL I/O, an impressive design that increases convenience in connecting devices on the back I/O. The cool EL lights up your I/O panel under your desk, in the dark, or in a LAN Party. No more jamming devices into the wrong connectors! when youre in the dark!
|
Q-Fan Plus
 Optimized quietness and cooling for more devices!
The Q-Fan function automatically detects temperature and adjusts fan speed accordingly to achieve quiet and efficient cooling. With Q-Fan Plus, special temperature sensor cable is provided to detect temperature on any device. When used with a optional fans, you may activate Q-Fan function on up to 3 additional devices of your choice!
|
ASUS Q-Connector
 Make connections quick and accurate
The Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.
|
 ASUS EPU 6 EnergySystem Level Energy SavingThe new ASUS EPU - the worlds first power saving engine, has been upgraded to a new 6 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card, memory, chipset, hard drives and CPU cooler/system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money.
|
| Rich Software Bundled |
|
|
| ASUS Unique Features |
 Fan Xpert
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
|
Q-Shield
 Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI). |
AI Nap
 Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
|
AI NOS
 Boost performance when you need it the most!
Applications such as 3D games and video editing demand a huge chunk of system resource. Inject "nitrous oxide" into your CPU! The patented AI NOS (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS reacts much faster to satisfy your unending need for speeds .
|
 ASUS O.C. Profile
Conveniently store or load multiple BIOS Settings
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings
|
 EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
|
C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again. |
| |
 MyLogo3
Personalize your system with customizable boot logo
The ASUS MyLogo 3 is the new feature present in the motherboard that allows you to personalize and add style to your system with customizable and animated boot logos.
|
 Stack Cool 2
The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
|
 Dual Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.
|
 SATA on the Go
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
|
 IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
|
 High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. |
| Quality & RoHS |
 100% High-quality Japan-made Conductive Polymer Capacitors!
This motherboard uses all high-quality Japan-made conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
|
 GreenASUS The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment. |
