All stock codes associated to this product
EPITC2P32LPAF, EPI-TC2P32LPAF, 11EPITC2P32LPAF, 11EPI-TC2P32LPAF

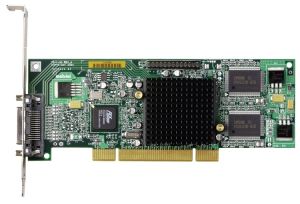

Expressly designed for thin computing and other mission-critical systems, Epica series graphics cards have innovative, new, server-based software from Matrox to manage multi-display configurations in remote sessions. The cost-effective Matrox Epica TC2 graphics card supports up to 2 digital or analog monitors at a time. For maximum compatibility and flexibility, Epica cards are designed for the PCI slots found in most modern PCs and have low-profile form factors to fit in an even wider variety of systems. For greater reliability, Epica cards also have passive (fanless) cooling and a single Matrox-designed graphics chip to control all displays. By helping to manage large amounts of information, Matrox multi-display technology can improve productivity and reduce errors in thin-computing environments.
- Matrox Remote PowerDesk Epica and Matrox Remote PowerSpace server-based software to remotely manage multi-display sessions
- Support for Microsoft RDP, Citrix ICA for Windows, and Linux desktop remote connection software
- Matrox DualHead to use 2 monitors at a time (in "independent" or "stretched" mode)
- PCI card compatible with all PCI and PCI-X slots
- Low-profile form factor to fit in a wider variety of systems
- Passive cooling (heat sink with no fan) for silent operation and extra reliability
- Expected power consumption of 10.07 watts or less
- Display driver for Microsoft Windows 2000, Windows XP, Windows XP Embedded (XPe), Windows Vista XDDM and Linux
- Easy-to-use Matrox PowerDesk driver interface
- Matrox Clone to view a copy of one display on the other display
- Support for displays with special aspect ratios
Hardware included
- Matrox Epica TC2-Lite graphics card (with factory-installed ATX bracket)
- LFH60-to-DVI dual-monitor adapter cable (1-foot)
- 2 DVI-to-HD15 connector adapters
- Separate low-profile bracket
Software included
- Matrox display drivers for Microsoft Windows 2000, Windows XP, Windows XPe, Windows Vista XDDM and Linux to be installed on the client
- Matrox Remote PowerDesk desktop management software for Windows Client XPe and Linux Client to be installed on the server side
- Matrox Remote PowerSpace virtual desktop management software for Windows Client XPe and Linux Client to be installed on the server side
Maximum resolutions (per display)
- Digital: 1280 x 1024
- Analog, main display: 2048 x 1536
- Analog, secondary display: 1600 x 1200
- Part number: EPI-TC2P32LPAF
- Card type: PCI, 32-bit, 66 MHz, compatible with all PCI and PCI-X slots (not PCIe slots)
- Graphics memory: 32 MB
- Bracket connector: LFH-60
- Card form factor: LP (Low-Profile)
- Bracket form factor: ATX
- EMC certifications: Class B - CE, ACA, CSA, FCC, VCCI
- Card size: 6.6" x 2.5"
(Card size = length, not including bracket and bracket connector x height, including slot connector. Card width is within specifications for a single card of the given type.)
