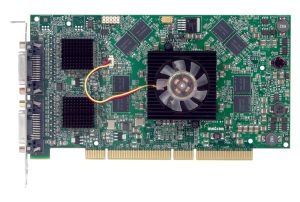

IMG 1 of 1
1 image(s) are available
for this product
Note: physical product may
vary from images displayed.
No Longer Available
or quickly purchase this product

Part Number:
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
Shipping Weight:
2 KG (Includes product packaging)

For Ultra-Wide Screen Projection

Delivering high quality digital and analog output, along with key features such as edge-overlapping, the Matrox PJ-4OLP can be combined with edge-blending technologies for the seamless delivery of digital content across two, three or four projectors.

  • Support for up to 4 digital or analog projectors at a time
  • Edge-overlap support across 2, 3 or 4 projectors
  • Flexible support for 2 x 1, 3 x 1, 4 x 1 and 2 x 2 configurations
  • 66 MHz PCI interface (compatible with all PCI and PCI-X slots) for PJ-4OLP display controller
  • 256 MB graphics memory
  • Dual 400 MHz 10-bit RAMDACs
  • Matrox UltraSharp Display Output Technology
  • Industry leading MTBF and robust driver support
  • OpenGL and Microsoft DirectX

Hardware included

  • Matrox display controller
  • Necessary cables and connectors

Software included

  • Matrox display driver for Microsoft Windows XP x64, Windows XP and Windows 2000
  • Matrox PowerDesk (driver interface and utilities)
Single output (Analog/Digital)
SVGA: 800 x 600
XGA: 1024 x 768
SXGA: 1280 x 1024
SXGA+: 1400 x 1050
WXGA: 1366 x 768
WSXGA+: 1680 x 1050
UXGA: 1600 x 1200
Max Dual, Triple and Quad output resolutions
3200 x 1200 (2 x 1) dual analog/digital
4800 x 1200 (3 x 1) triple analog/digital
6400 x 1200 (4 x 1) quad analog/digital

* Custom resolutions also supported. Contact Matrox for more information.

Minimum system requirements

  • System: PCI
  • 256 MB RAM
  • 600 MHz CPU
  • Microsoft Windows XP x64 (64-bit), Windows XP, or Windows 2000 operating system
  • 300W system power supply
  • CD-ROM

Product Information

  • Dimensions: 7.5" x 4.2" (D x H)
  • EMC certifications: Class A - ACA, CE, CSA, FCC, VCCI
  • Part numbers: PJ-4OLPF
