Product DetailsGo BackEmail to FriendPrint
Motherboards -> AMD Socket AM2+ -> ASUS

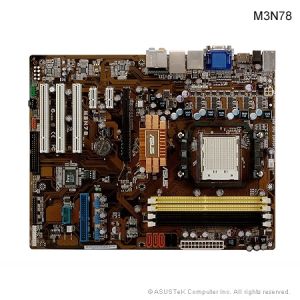

ASUS M3N78 Motherboard
AM2+, GeForce 8200, HT 5200, 4x DDR2-800, PCI-Ex16, 5x SATA-II, eSATA, RAID, GigLAN, 8Chl, DVI+VGA, HDMI, ATX
Cart
Quantity:
Add ASUS M3N78 Motherboard
AM2+, GeForce 8200, HT 5200, 4x DDR2-800, PCI-Ex16, 5x SATA-II, eSATA, RAID, GigLAN, 8Chl, DVI+VGA, HDMI, ATX to your wishlist
Click here to write a review on ASUS M3N78 Motherboard
AM2+, GeForce 8200, HT 5200, 4x DDR2-800, PCI-Ex16, 5x SATA-II, eSATA, RAID, GigLAN, 8Chl, DVI+VGA, HDMI, ATX

Large image is available
Product May Vary From Image

Our Price:
$146.60
RRP:$199.00
You Save:$52.40

Techbuy Part No:88609
Usually Ships: Same Day Details
Brand:ASUS Web Site
Manuf No:M3N78
Shipping Weight:2 KG How Much?
Date Added:26/8/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

M3N78

  • AMD AM2+ Quad-Core CPU/AM2 CPU Support
  • AMD 140W CPU Support
  • NVIDIA GeForce 8200 Chipset
  • Hybrid SLI Support
  • HyperTransport 3.0 and PCIe 2.0 Ready
  • HDMI/Full HD Support
  • Smooth Blu-ray / HD DVD Playback
  • Multi Displays Support
AMD Socket AM2+ Phenom FX / Phenom / Athlon Support
This motherboard supports AMD AMD Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus.
AMD  Socket AM2 Athlon /Sempron  CPU Support
This motherboard supports AMD Socket AM2 Athlon/Sempron processors. It features 2000/1600 MT/s HyperTransport-based system bus, dual-channel un-buffered DDR2 800 memory support, and AMD Cool 'n' Quiet Technology.
Native DDR2 1066
This motherboard supports native DDR2 1066. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.
*DDR2 1066 is supported by some of the AM2+ CPUs only. Refer to www.asus.com for the supported CPU models.
HyperTransport 3.0 Support
Provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment.
Dual channel DDR2 1066
This motherboard is the first AMD platform with native DDR2 1066 support. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.
*DDR2 1066 is supported by some of the AM2+ CPUs only. Refer to www.asus.com for the supported CPU models.
AMD Cool n Quiet! Technology
M3N78 supports AMD Cool n Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment.
NVIDIA GeForce 8200
NVIDIA GeForce 8200 offers the latest support of Hybrid SLI Technology, DirectX10 graphics features, HD video playback with HDMI/DVI output. It also supports HyperTransport 3.0 interface, PCI Express 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMDs latest AM2+ and multi-core CPUs to provide excellent system performance.
Hybrid SLI Support
Hybrid SLI technology is a unique hybrid multi-GPU technology. It includes two primary features: GeForece Boost and HybridPower. GeForece Boost turbo-charges performance of discrete graphics cards when combined with the motherboard GPUs. HybridPower unleashes graphics performance for demanding 3D applications and enables low-power operation for everyday computing needs.
* GeForce(R) Boost and HybridPower are on select GeForce(R) GPUs. Visit www.nvidia.com/hybridsli for more information.
NVIDIA PureVideo HD Technology
PureVideo HD technology is the core of a complete Blu-ray or HD DVD movie solution, featuring hardware acceleration, post-processing, HDCP circuitry, and integration with leading HD movie software players.
HDMI Support
Enjoy Full HD 1080p Multimedia Home-Theater Entertainment
High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.
Serial ATA 3Gb/s
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification, allowing RAID 0, RAID 1,RAID 0+1,RAID 5 and JBOD configurations for five SATA connectors.

PCIe 2.0 support
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
Dual VGA output
This motherboard supports Dual-VGA output (RGB & HDMI/DVI). HDMI/DVI interface is compliant with HDCP.

ASUS Express Gate
Surf the Internet in 5-second-boot time without entering Windows
With a fast bootup speed of only 5 seconds, the ASUS Express Gate offers an optional Linux OS bootup that allows you to enjoy instant access to commonly used functions like accessing the Internet, VoIP, and Web emailing without entering the OS.

* File downloading and uploading on USB drives only
** The actual boot time is subject to hardware configurations and product models




Gigabit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.

AI NET2
Diagnose LAN connection before entering OS!
AI NET2 remotely detects cable connection the second you turn on the system, and any faulty connections are reported back up to 100 meters at 1 meter accuracy.

ASUS CrashFree BIOS3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
ASUS EZ Flash2
With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required.

MyLogo2
Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.




Specification
CPU
AMD Socket AM2+ / AM2 Processors
for AMD Phenom FX / Phenom / Athlon / Sempron
AMD Cool'n'Quiet Technology
Support CPU up to 140W
Chipset
NVIDIA GeForce 8200
System Bus
Up to 5200/MT/s HyperTransport 3.0 interface for AM2+ CPU
2000 / 1600 MT/s for AM2 CPU
Memory
4 x DIMM, Max. 8 GB, DDR2 1066(O.C.)/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only. Please refer to www.asus.com or user manual for Memory QVL.
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
2 x PCIe x1
3 x PCI 2.2
VGA
Integrated NVIDIA GeForce 8 Series GPU
Hybrid SLI Support (support Windows Vista only.)
Supports HDMI Technology with max. resolution up to 1920 x 1200 @ 70Hz
Supports DVI with max. resolution up to 1600 1200 @ 85 MHz
Supports D-Sub with max. resolution up to 1920 1440 @ 75 Hz
HDMI/DVI/RGB Support
Supports Microsoft DirectX 10, OpenGL 2.0, Pixel Shader 4.0
Support PCIe 2.0 / 1.0 Architecture
Maximum shared memory of 256MB
Storage
Southbridge
1 xUltraDMA 133/100
5 xSATA 3 Gb/s ports
NVIDIA MediaShield RAID Support RAID 0,1,0+1,5,JBOD
LAN
NVIDIA nForce built-in Gigabit MAC with external Realtek 8211CL-GR PHY
Audio
8 -Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Support Jack Detection and Multi-streaming
USB
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Unique Features
ASUS Express Gate:
1. Access the Internet in 5-second* boot time without entering Windows
2. A built-in OS offers instant fun platform for Internet and Instant Messenger!
3. Friendly Picture Manager Interface
* The actual boot time is subject to hardware configurations and product models.
ASUS Quiet Thermal Solution:
- ASUS Q-Fan
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
SFS (Stepless Frequency Selection)
- HT tuning from 200MHz up to 400MHz at 1MHz increment
- Memory tuning from 533MHz up to 1066MHz
- PCIe frequency tuning from 100MHz up to 200MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)
Special Features
ASUS AI NET 2
ASUS MyLogo 2
Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse Combo port
1 x Optical S/PDIF Out
1 x HDMI
1 x DVI
1 x D-SUB
1 x External SATA
1 x RJ45 port
6 x USB 2.0/1.1
8-Channel Audio I/O
Internal I/O Connectors
3 x USB connector (6 ports)
1 x Floppy disk drive connector
1 x Power Fan connector
1 x COM connector
5 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1x IEEE1394a connector
1 x Front panel audio connector
1 x S/PDIF Out connector
1 x Chassis Intrusion connector
1 x CD audio in connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX +12V Power connector
1 x System Panel connector
BIOS
8 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0, ASUS EZ Flash 2
Accessories
1 x UltraDMA 133/100/66 cable
1 x FDD cable
1 x SATA cable
1 x SATA power cable
User's manual
Support Disc
Drivers
Express Gate Driver
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)
Form Factor
ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


1 Year Return to Base
