Lian Li Armorsuit X Edition Tower Case - NO PSU, Black

LIAN LI - Excellent Design

Lian Li has once again set the new benchmarks to the PC Chassis design, designing forfuture hardware and to meet professionals need.

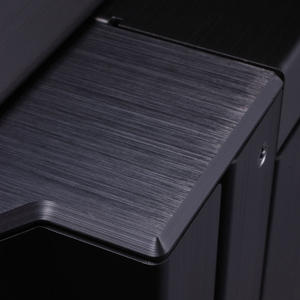

Lian Li put a lot of effortinto the external finishing, all external parts has an anodized hair-line brush finish and diamond cut edges.

There are no sharp edges, all sharp edges have had removed to ensure users safety.

LIAN LI High quality craft products

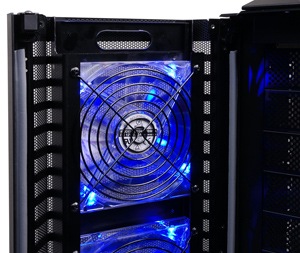

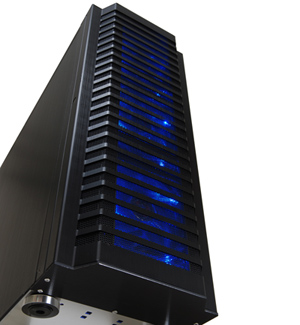

AROMORSUIT PC-P80 has 2mm thick aluminum front panel with world first and only three 14cm fans in the front to intake cool air into the system.

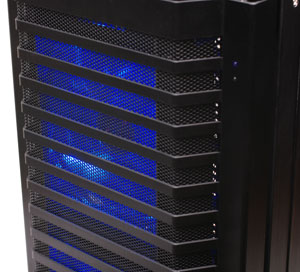

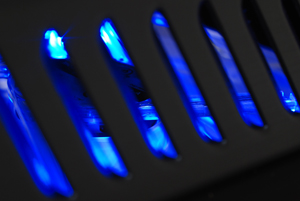

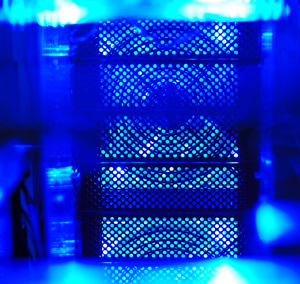

These fans have blue LED to illuminate the whole front panel.

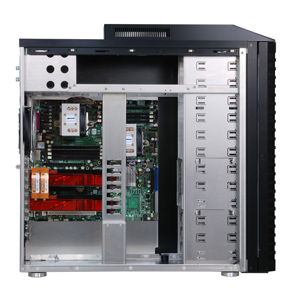

ARMORSUIT PC-P80 features a huge internal space, user can fit the large, most powerful hardware, it can accommodate 12" x 13" EATX dual processor server board, and still leave room for other hardware.

It also features 10 PCI slots, to suit the most advance graphics systems, it can hous up-to four dualslot graphics cards, ARMORSUIT PC-P80 designed for today's and tomorrow latest hardware.

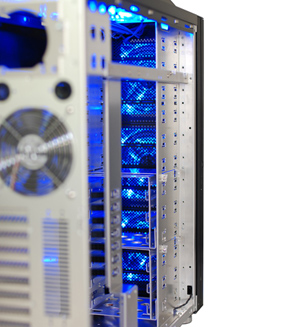

There are twelve 5.25" slotsin ARMORSUIT PC-P80. There are also two modularized HDD cages, which can hold three 3.5" HDD each. The user can adjust the position of the HDD cage to suit their need.

LIAN LI Creative Thermal Solution

ARMORSUIT PC-P80 is for a high end hardware system, there are many fans inside the chassis, to meet modem thermal demands. To make it silent, but still have enough airflow to cool down the system, Lian Li designers' chose three 140mm intake fans in the front, running in alow RPM, but still move enough air into the chassis. To get the best balance of silent and cooling

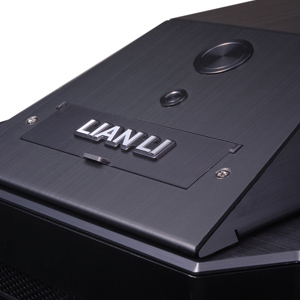

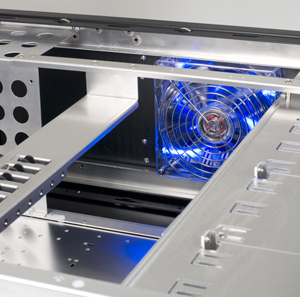

There are also a 140mm blue LED fan on the top panel to exhaust the hot air out of the chassis, Lian Li designers also have place a shroud on the fan to control the direction of the air, to attenuate the noise level.

The front mount linear fan speed controller to adjust fan speed from 800-1200RPM for three 140mm fans infront and the one 14cm fan ontop. The user can modulate the fan speed to reveive the best cooling performance, silent operation or balance of the two.

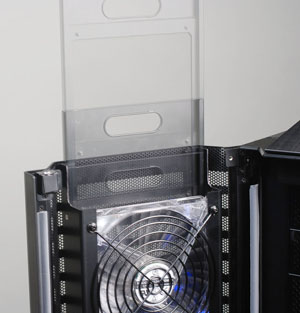

The air filter is design to be easy to clean, and washable.It is easy to remove, just pull it out of the front panel door, no tool required.

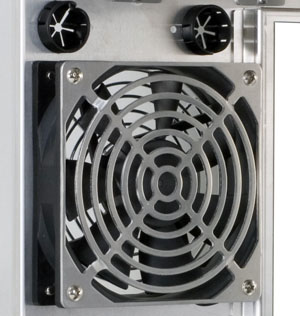

On the rear a silent 120mm fanwill draw the hotair out of the system. A fan guard fitted to protect wires and user.

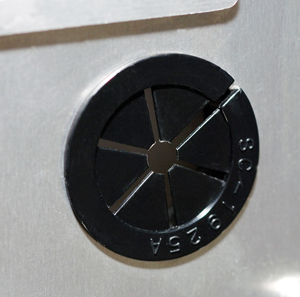

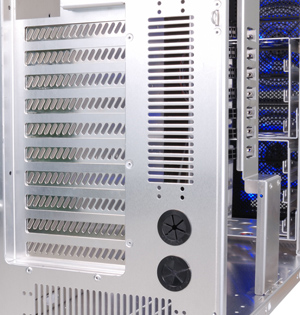

Designed for enthusiasts, the ARMORSUIT PC-P80 is equipped with four water pipe inlets,to accommodate for dual liquid cooling systems.

User Friendly Design

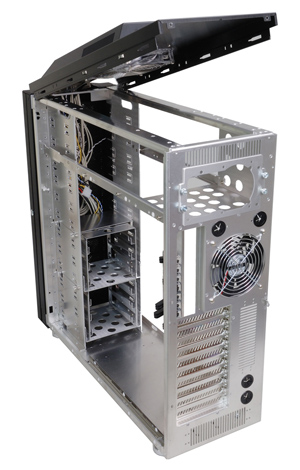

The Top cover can be opened up and remove for easy hardware service and installation.

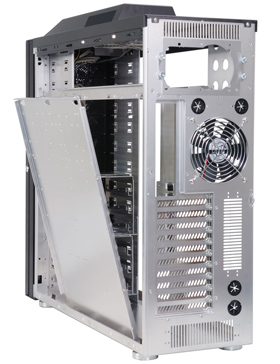

The ARMORSUIT PC-P80 features a removable motherboard tray, souser can install the motherboardexternally to the case, easy makes life easy for future upgrade and service.

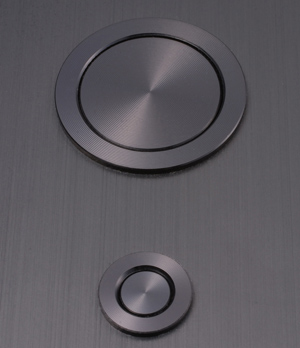

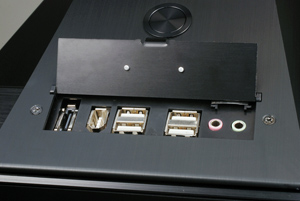

The power/reset button and multi-media I/O ports are located on the top-front for easy access. The I/O header has four USB ports, one Firewaire ports, and features HD- AC 97 Audio and e-SATA ports.

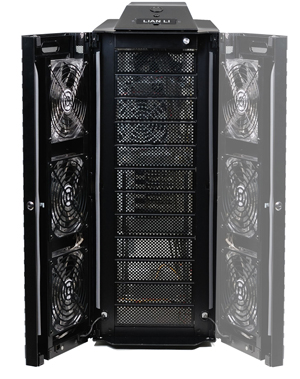

No matter of where you want to place your chassis. The ARMORSUIT PC-P80's front panel can switch to change the opening direction, which allows chassis to fit in different working environment.

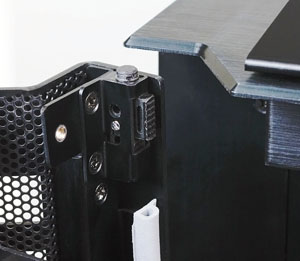

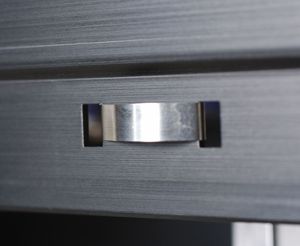

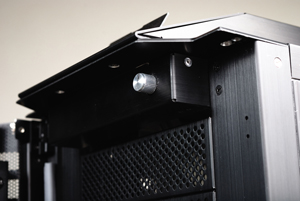

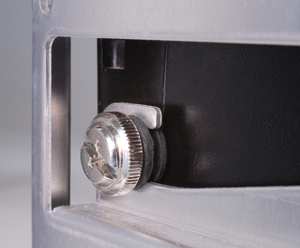

The door is released easily; simply push the release keyon the door axis. ( there is a safety screw to secure the axis during transportation).

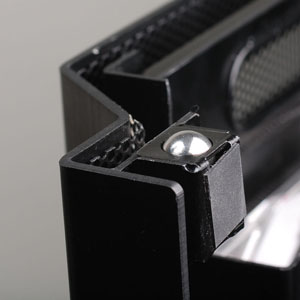

Lian Li designers' comeup with an unique door latching mechanism,using a spring supported steel ball as door latch, this will keep thedoor shutin the right position.

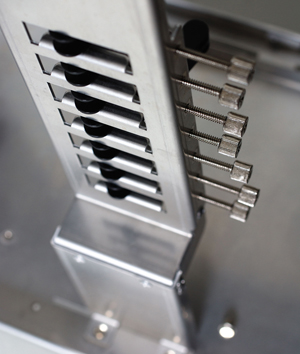

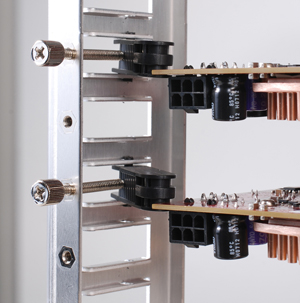

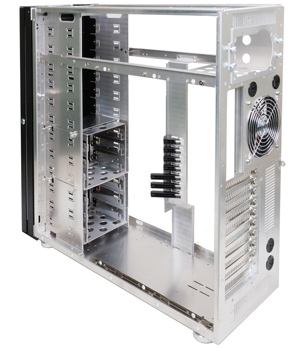

ARMORSUIT PC-P80 is equipped withserver grade add-on card holder, to secure the long heavy graphics cards in position, to preventthem from bending. There are two different size of supportsfor different size cards. It is also a good ideal for the LAN party user, to secure any cards in position during travel.

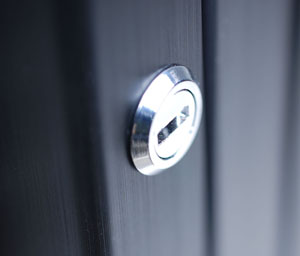

The chassis and front panel are fitted with locks to protect hardware.

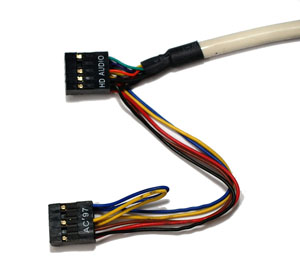

Multi-media ports connectors follow the international specified standard, with one connector for easy installation

Both HD Audio and AC97 Audio are supported for better compatibility.
