Billion BiPAC5200N ADSL2/2+ Modem/Wireless Router - 802.11b/g/Draft n, 4-Port LAN 10/100 Switch, WPS, DoS Prevention, VPN Pass-Through, Up to 300Mbps

No Longer Available

Part Number:

92488

(?) Brand:

Billion Web Site

Manuf No:

BIPAC5200N

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

BIPAC5200N

BiPAC 5200N
802.11n ADSL2+ Firewall Router

Experience the ultimate in wireless speed and coverage; share your networking anywhere with no more dead zones!

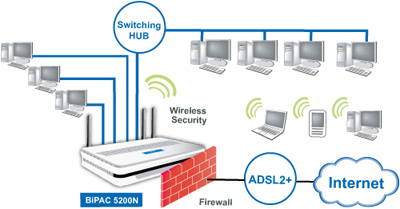

The BiPAC 5200N is an economic ADSL2+ Router pack deploying the latest 802.11n technology. It is designed for home and SOHO users who seek extreme mobility, high speed wireless connection and better wireless coverage while maintaining high-level security for their Internet connection. With an integrated 802.11n Wireless Access Point, the router enables you to surf the Internet from anywhere at home or in the office, delivering fast wireless speeds of up to 300Mbps. The 3 built-in antennas effectively search for wireless signals and automatically adjust to the optimal connection after obstacles have been detected. The SOHO Firewall is integrated to provide protection against hacker attacks while the Quality of Service prioritizes queues for smooth traffic. With the BiPAC 5200N you can share your high-speed Internet connection with your family or colleagues at work from anywhere with no more dead zones for applications such as music download, online gaming, video streaming, and file sharing.

Key Features

Compliant with 802.11n standards
Supports 802.11n Wireless Access Point with WPA-PSK/WPA2-PSK
Delivers high-speed wireless connection, with up to 300Mbps data rate
Expanded wireless coverage of up to 3 times the range of standard 802.11g products
WPS (Wi-Fi Protected Setup) for easy setup (* future release)
Auto channel select
High speed Internet access with ADSL2/2+; backward compatible with ADSL
Integrated 4-port ethernet switch
SOHO firewall security with DoS prevention and packet filtering
Universal Plug and Play (UPnP) Compliant
Supports VPN pass-through
Easy Sign-On (EZSO) and Web-based Configuration
Quality of Service Control
Dynamic Domain Name System (DDNS)
Easy Network Management
Ideal for Home & SOHO Users

Benefits

Express Internet Access
This router complies with worldwide ADSL standards. It supports downstream rates of up to 12/24 Mbps with ADSL2/2+, 8 Mbps with ADSL, and upstream rates of up to 1 Mbps. With this technology, users enjoy not only high-speed ADSL service but broadband multimedia applications such as interactive gaming, video streaming and real-time audio run faster and more easily than ever. In particular, by doubling the upstream data rate, the Annex M standard included in the BiPAC 5200NA model supports the latest ADSL2/2+ standard for higher upload speeds.

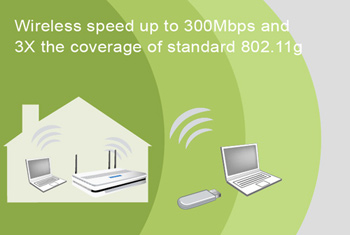

Optimal Wireless Speeds and Coverage
With an integrated 802.11n Wireless Access Point, the router delivers up to 6 times the speed and 3 times the wireless coverage of a standard 802.11b/g network device. It supports a data rate of up to 300Mbps, and is also compatible with 802.11b/g equipment. The Wireless Protected Access (WPA-PSK / WPA2-PSK) and Wired Equivalent Privacy (WEP) features enhance the level of transmission security and access control over Wireless LAN. The router further supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button.

Firewall Security and Smooth Traffic
Along with the built-in NAT natural firewall feature, the router's advanced anti hacker pattern-filtering protection feature automatically detects and blocks Denial of Service (DoS) attacks. In addition to the NAT technology, the BiPAC 5200N supports Packet Filtering for high-level security control. Quality of Service control prioritizes the traffic and allows users to enjoy smooth traffic while running applications such as like P2P or multimedia through the Internet.

Easy Network Management
The web-based user interface makes it extremely easy for users to install and manage the BiPAC 5200N. The router supports both DHCP client and server, enabling system administrators to easily fit this router into existing network environments and manage the IP assignment without having to reconfigure other stations. Future firmware upgrades can be downloaded using a user-friendly Web-based Interface+

Specifications

ADSL Compliance
Compliant with ADSL Standard
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- ADSL over ISDN/U-R2
Compliant with ADSL2 Standard
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M)(available for BiPAC 5200NA model only)
Compliant with ADSL2+ Standard
- G.dmt.bis plus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M)(available for BiPAC 5200NA model only)

Network Protocols and Features
NAT, static routing and RIP-1/2
NAT supports PAT and multimedia applications
Multi-to-multi NAT
Transparent Bridging
Dynamic Domain Name System (DDNS)
Virtual Server and DMZ
SNTP, DNS relay and IGMP proxy

Firewall & Virtual Private Network (VPN)
Built-in NAT Firewall
Stateful Packet Inspection (SPI)
Prevents DoS attacks including Land Attack, Ping of Death, etc.
Anti probe function
Packet filtering
URL Filtering
Password protection for system management
VPN pass-through

Quality of Service Control
Supports the DiffServ approach
Traffic prioritization based-on IP protocol,port number and address

Operating Environment
Operating temperature: 0 - 40C
Storage temperature: -20 - 70C
Humidity: 20 - 95% non-condensing

Wireless LAN
Compliant with IEEE 802.11n, 802.11g and 802.11b standards
2.4 GHz 2.484 GHz frequency range
Auto channel select
Up to 300Mbps wireless operation rate
WPS (Wi-Fi Protected Setup) for easy setup
64/128 bits WEP supported for encryption
Wireless Security with WPA-PSK/WPA2-PSK support

ATM and PPP Protocols
ATM Adaptation Layer Type 5 (AAL5)
Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483)
Bridged or routed Ethernet encapsulation
VC and LLC based multiplexing
PPP over Ethernet (PPPoE)
PPP over ATM (RFC 2364)
OAM F4/F5
ATM QoS: UBR, CBR, VBR-rt, VBR-nrt

Management
Web-based configuration
Firmware upgrades and configuration data upload/download via web-based interface
SNMP v1/v2 MIB supported
Supports DHCP server/client/relay

Hardware Specifications
Physical Interface
WLAN: 3 external antennas
DSL: ADSL port
Ethernet: 4-port 10/100M auto-crossover (MDI/MDI-X) switch
Factory default reset button
WPS button
Power jack
Physical Specifications
Dimensions: 7.28" x 4.86" x 1.42"(185mm x 123.5mm x 36mm)
Power Requirements
Input: 12V DC, 1A

Models & Supported Standards
BiPAC 5200NA: Supports Annex A and Annex M
BiPAC 5200NU: Supports U-R2 and Annex B
Annex A and Annex M: ADSL over POTS
Annex B and U-R2: ADSL over ISDN

BiPAC 5200N - Draft 802.11n ADSL2+ Firewall Router
