Printer
|
| PRINTER TYPE |
| EPSON STYLUS TX400 |
C11CA20401 |
| PRINTING METHOD |
On-demand Inkjet (piezoelectric) |
| NOZZLE CONFIGURATION |
90 nozzles Black, 90 nozzles each colour (Cyan, Yellow, Magenta) |
| MINIMUM INK DROPLET VOLUME |
3 Picolitres |
| RESOLUTION |
| |
5760dpi with Variable-Sized Droplet Technology |
| PRINT SPEED |
| BLACK TEXT (MEMO) A4 (Draft)^ |
34ppm*1 |
| COLOUR TEXT (MEMO) A4 (Draft)^ |
34ppm*2 |
| Photo 4" x 6" (10 x 15cm) (Draft)^ |
Approx. 26 sec*3+ |

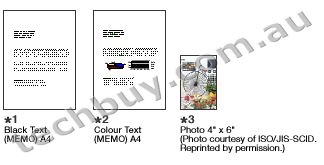

Print Speed Data Printout Patterns The thumbnail images below show the printout patterns used to determine print speed specifications.
*"Second" rating refers to the time taken to print one page. The computer environment we test under is as follows: CPU: Pentium 4, 2.4GHz; RAM: 512MB; OS: Windows XP professional; Interface/Connectivity: USB2.0 HighSpeed; SOFTWARE: Word XP/PhotoShop7.0; PAPER: Epson Premium Glossy Photo Paper or Plain Paper
+ When printed on Epson Premium Glossy Photo Paper |
| PAPER HANDLING |
| PAPER SIZES |
A4, Letter, Legal, 8x10", 5x7", 4x6", 3.5x5", 5x8", A6, A5, B5, Half Letter, Envelopes: No10, DL, C6 |
| PAPER HOLD CAPACITY |
Input capacity: 120 sheets, A4 Plain paper (60g/m2) |
*True BorderFree printing is available for the following media sizes: 4"x6", 5"x7" and A4.
Media types recommended: Premium Glossy Photo paper A4, 4"x6" and 5"x7", Matte Paper - Heavyweight.
BorderFree prints are media dependent. |
Scanner
|
| SCANNER TYPE |
A4 Flatbed colour image scanner |
| SENSOR TYPE |
CIS |
| DOCUMENT SIZE |
Up to A4 |
| PIXEL DEPTH |
Input 48bits (16bits/colour) / output 24bits (8bits/colour) |
| SCANNING RESOLUTION |
1200 x 2400 dpi |
| MONO SCAN SPEED |
A4 300dpi 2.2mSec/line
A4 600dpi 7.2msec/line
A4 1200dpi mono 8.8msec/line |
| COLOUR SCAN SPEED |
A4 300dpi 7.2msec/line
A4 600dpi 13.1msec/line
A4 1200dpi 26.2msec/line |
Copy Function
|
| COPY SPEED |
Copy Speed Black Text Memo (A4)+
Copy Speed Colour Text Memo (A4)+ |
Approx. 30cpm (Draft)
Approx. 30cpm (Draft) |
General
|
| OPERATING SYSTEMS |
| PRINTER DRIVERS* |
Win 2000/XP/XP x64/Vista, Mac OS 10.3.9 / 10.5* |
| * Drivers if available are downloadable from Tech Epson |
| ELECTRICAL SPECIFICATIONS |
| RATED VOLTAGE |
AC 220 ~ 240V |
| RATED FREQUENCY |
50 ~ 60Hz |
| POWER CONSUMPTION |
Approx. 12W, 3.0W (Sleep Mode), (ISO/IEC 24712) |
| NOISE LEVEL |
| NOISE LEVEL |
5.3B, 40dB(A) |
| INTERFACES |
| CONNECTIVITY |
USB Compatible with the USB 2.0 Specification (cable included) |
| LCD SCREEN |
2.5 with tilt adjustment |
| CARD SLOTS |
CF Type II, Memory Stick, SD/MMC, XD-Picture card |
| PICTBRIDGE |
Yes |
| PRINTER SOFTWARE (AVAILABLE ON CD-ROM ONLY) |
| SOFTWARE TOOLS |
Epson File Manager
Epson Scan Assist
Epson Attach to Email
Epson Easy Photo Print
Epson Web-To-Page
Online Guide |
| PRODUCT DIMENSIONS |
450mm (W) x 342mm (D) x 182mm (H) |
| WEIGHT |
5.9kg |
| LIGHTFASTNESS |
| LIGHTFASTNESS# |
120 years on Epson Matte Paper - Heavyweight |
| LIGHTFASTNESS TEST CRITERIA (INDOOR DISPLAY CONDITIONS) |
| Light source |
Fluorescent light |
| Intensity |
70k lux |
| Temperature |
24C |
| Humidity |
60% RH |
| Glass Mount |
2mm, soda lime |
| Fade Criteria |
Pure YMC 30% loss at OD=1 |
| Display Life Calculation |
Total illuminance/(500 lux x 10 hours x 365 days = 1 year) |
| Tests developed and conducted by Epson under fluorescent light (indoor display condition) with glass mount. The data is calculated by Epson's accelerated test of prints on specialty media. |
| # Data is calculated using accelerated simulation of fading under indoor preservation conditions including fluorescent light indoor display. Temperature, humidity and some atmospheric gases may also affect the rate of fading. The estimated lightfastness period does not indicate the colour changing or the durability of the paper itself. Epson recommends that your prints be stored in a photo album (or plastic photo storage box) in acid free, archival sleeves commonly available from most camera shops. |
| INK CARTRIDGES |
| STANDARD INK CARTRIDGES |
73/73N Black, 73/73N Cyan, 73/73N Magenta, 73/73N Yellow |
| STANDARD INK CARTRIDGE YIELDS^^ |
Black 245, Colour Composite 335 |
|
^ Print speed (PPM) when printed on A4 plain paper in the fastest mode. 10x15cm photo print speed when printed on Epson Premium Glossy Photo Paper borderless in draft mode. Print speed may vary depending on system configuration, print mode, document complexity, software, type of paper used and connectivity. Print speed does not include processing time on host computer.
+ Copy speed when printed on plain paper in the fastest mode. Copy speed may vary depending on copy mode, document complexity, type of paper used and number of copies.
|
