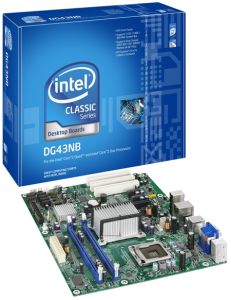

Intel DG43NB Motherboard - OEM
  • LGA775, G43, 1333FSB, 2x DDR2-800, PCI-Ex16 v2.0, 6x SATA-II, GigLAN, 6Chl, Firewire, DVI+VGA, ATX

IMG 1 of 1
No Longer Available
Part Number:
93941
(?) Brand:
Intel Web Site
Manuf No:
BLKDG43NB
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
BLKDG43NB

Intel Desktop Board DG43NB Overview

The Intel Desktop Board DG43NB delivers new levels of performance and enhanced multimedia enjoyment in the ATX form factor supporting Intel Core2 Quad and Intel Core2 Duo processors.

The board also offers exciting premium features such as Intel HD Video, Intel High Definition Audio, integrated 10/100/1000 Network connection, ample USB ports and IEEE 1394a for consumers to enjoy a great digital entertainment experience.

The Intel Desktop Board DG43NB is Microsoft Windows Vista* Premium Ready and the Intel 4 Series Chipset fully supports the visually stunning Windows Aero* user interface with amazing transition effects and realistic animations.

Features and benefits

Form factor ATX (11.60 inches by 9.60 inches [294.64 millimeters by 243.84 millimeters])
Processor

At product launch, this desktop board supports:

  • Support for an Intel Core2 Quad processor in an LGA775 socket
  • Support for an Intel Core2 Duo processor in an LGA775 socket
  • Support for an Intel Pentium Dual-Core processor in an LGA775 socket
  • Support for an Intel Celeron Dual-Core processor in an LGA775 socket
  • Support for an Intel Celeron processor 400 sequence in an LGA775 socket
Memory
  • Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 800 or DDR2 667 MHz DIMMs
  • Support for up to 4 GB  of system memory
Chipset
  • Intel G43 Express Chipset
Audio

Intel High Definition Audio subsystem in the following configuration:

  • 6-channel (5.1) audio subsystem using the Realtek* ALC888VC audio codec
Video Intel Graphics Media Accelerator X4500 on board graphics subsystem
I/O control Legacy I/O controller for serial header, and PS/2* ports
LAN support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82567V Boazman Gigabit Ethernet Controller
Peripheral interfaces
  • Up to 12 USB 2.0 ports
  • Six Serial ATA IDE interfaces
  • Two IEEE-1394a ports (1 external port, 1 internal header)
  • One serial port via header
  • One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
  • PS/2 keyboard and mouse ports
Expansion capabilities
  • One PCI Express* 2.0 x16 bus add-in card connector
  • Three PCI Express* x1 bus add-in card connectors
  • Three PCI Conventional* bus connectors

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Intel) web site.
