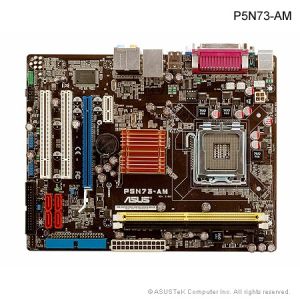

P5N73-AM with NVIDIA GeForce 7050 / nForce 610i chipset inside supports Intel 45nm multi-core CPU and features 1333MHz FSB, high performance integrated graphics engine, DDR2 800(O.C.) memory, and HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5N73-AM is the most powerful all-in-one solution platform for Intel platform with NVIDIA chipset inside.
|
  LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. With new Intel Core microarchitecture technology and 1333MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
|
 Intel Quad Core Processor Ready
This motherboard supports the latest Intel Quad-core processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. Its excellent for multi-tasking, multi-media and enthusiastic gamers with 1333/1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world.
|
  NVIDIA GeForce 7050 / nForce 610i Chipset
The brand new NVIDIA GeForce 7050 / nForce 610i MCP (Media and Communications Processor) features CineFX 3.0 Engine. This unique combination of MCP creates a single motherboard featuring a world-class DX9, Shader Model 3.0 GPU for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
|
 Japan-made 5000hrs VRM Solid Capacitors
Stable system operation depends upon the quality of CPU VRM (voltage regulator module). ASUS adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
|
 Supports DDR2 800 up to 4GB Memory
Single-channel DDR2 800(OC) technology boost the system performance to out perform any memory existing solutions in the market.
|
PCI Express Architecture
 PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems.
|
  8-CH High Definition Audio
Enjoy high-end sound system on your PC!
The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
|
  Support SATA 3Gb/s with RAID function
Serial ATA 3Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. The onboard chipset allows RAID 0 & RAID 1 configurations for four SATA connectors. With up to 3Gbit/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility.
|
Max. 8 USB 2.0 ports supports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.
|
 CrashFree BIOS 2
The CrashFree BIOS 2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.
|
 EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
|
 Q-Fan
ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.
|
 MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
|
 O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
|
|
 GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.
|
