 CPU
Supports Intel Core 2 Extreme/Core 2 Quad/Core 2 Duo based processors in LGA775 package.
Supports Intel Yorkfield, Wolfdale in the LGA775 package.
Supports Intel next generation 45nm multi-core processors
Supports FSB1333/1066/800 MHz.
Support VRD 11.1 standard.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
|
 |
Chipset
Intel G45 Chipset
- Supports FSB 800/1066/1333 MHz.
Intel ICH10/ICH10R Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 10 ports.
-6 SATAIIports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10/JBOD. (ICH10R)
- Integrated AHCI controller.
|
| |
Main Memory
Supports four unbuffered DIMM of 1.8 Volt DDR2 667/800SDRAM, 16GB Max
|
| |
Slots
OnePCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant).
One PCI Express x1 slot. (support PCI Express Bus specification v1.0a compliant)
Two 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.
|
| |
On-Board IDE/SATA
One Ultra DMA 66/100/133 IDE controller integrated in JMicron 368.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
SATAII controller integrated in ICH10/ICH10R chipest
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10/ICH10R
- Supports AHCI controller with SATA RAID 0/1/5/10/JBOD by ICH10R.
MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk. |
|
| |
Audio
Chipset integrated by Realtek ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spce
|
| |
LAN
SupportsPCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.
|
| |
IEEE1394 / FireWire
Chipset integrated by JMicron 381
- Transfer rate is up to 400Mbps
|
| |
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x1/ System x1 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
-3 x USB 2.0 connectors
- 1 x Floppy disk drive connector
-6 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x SPDIF-Out connector
- Clear CMOS Jumper
-1 x serial port connector
- 1 x IEEE1394 connector support additional 1 port (optional)
- 1 x TPM module connector (optional)
MSI Reminds You...
The floppy disk cable will be optional. |
|
| |

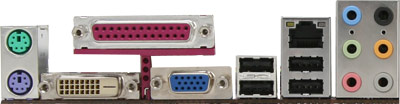

Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel port
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports - 1 x RJ45 LAN jack - 1 x Graphic Card port(optional) - 1 x DVI-D port (optional) - 1 x IEEE1394 port (optional)
|
| |
BIOS
The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.
|
| |
Dimension
24.4cm(L) x 24.4cm(W) mATX Form Factor
Mounting
8 mounting holes.
|
