Gigabyte GA-EP45-UD3R Motherboard
  • LGA775, P45, 1600FSB, 4x DDR2-1366+, PCI-Ex16 v2.0, 8x SATA-II, RAID, GigLAN, 8Chl, Firewire, ATX

IMG 1 of 1
No Longer Available
Part Number:
95712
(?) Brand:
Gigabyte Web Site
Manuf No:
GA-EP45-UD3R
GAEP45UD3R
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GAEP45UD3R, GA-EP45-UD3R
GA-EP45-UD3R (rev. 1.0)
Intel  P45 + ICH10R Chipset
  1. Ultra Durable 3 technology with 2 oz copper PCB for 50C cooler working temperature
  2. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  3. Supports 45nm Intel  Core 2 multi-core processors with FSB 1600 MHz
  4. Natively support to dual channel DDR2 1366+* for remarkable system performance
  5. Ultimate graphics performance with PCI-E x16 interface
  6. 100% 50,000 hour lifespan Japanese solid capacitors design
  7. DualBIOS solution gives a multiple security to the system
  8. Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
  9. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
* Refer to Memory Support List for more information.

Overview

    Introduction


The GA-EP45-UD3R introduces revolutionary GIGABYTE Ultra Durable 3 technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the Intel P45 chipset the GA-EP45-UD3R delivers a record-setting 1600MHz FSB for the latest Intel Core 2 multi-core processors, and supports dual channel DDR2 memory at speeds of up to 1366MHz and even higher. Additionally, the GA-EP45-UD3R incorporates GIGABYTE DES Advanced technology for industry leading energy saving and enhanced system efficiency.

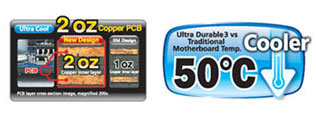

Ultra Durable 3 Copper Cooled Quality


GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industrys first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.
GIGABYTE Ultra Durable 3 motherboards are also equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, Ferrite core chokes with higher energy efficiency compared to the commonly used iron core chokes and Lower RDS(on) MOSFETs that features a lower resistance, which reduces power consumption and heat generation. GIGABYTE Ultra Durable 3 series motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more
Enlarge View Enlarge View


DDR2 1366+ Support --The World's Fastest DDR2 Motherboard
Delivering native support for DDR2 memory up to 1366+MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
* Please refer "Memory Support List" for memory support information.
  50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable series motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the meet the power needs of high-end processors and other components running today's most demanding applications and games.


Dynamic Energy Saver Advanced
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the worlds only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTEs DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
* The 6-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.

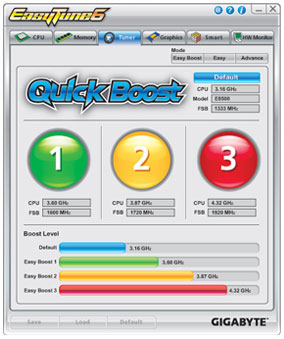

Quick and Effortless Overclocking with One Click
GIGABYTE Quick Boost provides 3 levels of CPU performance enhancement; a simple click on the desired level delivers quick and effortless overclocking for novice and experienced users alike.
  EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
  Hardware OverVoltage Control IC-- Enabling Extreme Overclocking
GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTEs Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.


DualBIOS - Patented Dual Hardware BIOS Protection
DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.


Specifications
CPU
  1. Support for an Intel Core 2 Extreme processor/ Intel  Core 2 Quad processor/Intel Core 2 Duo processor/ Intel  Pentium  processor Extreme Edition/Intel  Pentium  D processor/ Intel  Pentium  4 processor Extreme Edition/Intel  Pentium  4 processor/ Intel  Celeron  processor in the LGA 775 package
    (Refer to CPU support list for more information)
  2. L2 cache varies with CPU
Front Side Bus
  1. 1600/1333/1066/800 MHz FSB
Chipset
  1. North Bridge: Intel P45 Express Chipset
  2. South Bridge: Intel ICH10R
Memory
  1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR2 1366+*/1066/800/667 MHz memory modules
* Refer to Memory Support List for more information.
Audio
  1. Realtek ALC889A codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In/Out
  5. Support for CD In
LAN
  1. 1 x Realtek 8111C chips (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
  2. 3 x PCI Express x1 slot
  3. 3 x PCI slots
Storage Interface South Bridge:
  1. 6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1 and JBOD
iTE IT8718 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394a
  1. T.I. TSB43AB23 chip
  2. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
USB
  1. Integrated in the South Bridge
  2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 8 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 2 x system fan headers
  8. 1 x power fan header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x CD In connector
  12. 1 x S/PDIF In header
  13. 1 x S/PDIF Out header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x IEEE 1394a header
  16. 1 x parallel port header
  17. 1 x serial port header
  18. 1 x power LED header
  19. 1 x chassis intrusion header

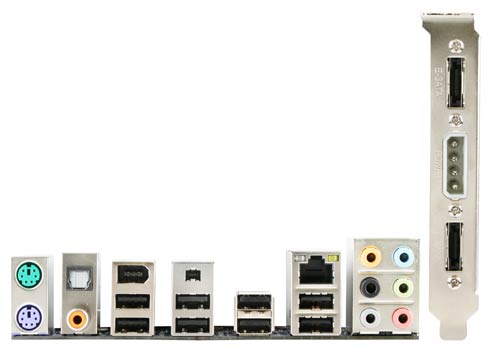

Back Panel Connectors
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 keyboard/mouse port
  3. 1 x optical S/PDIF Out connector
  4. 1 x coaxial S/PDIF Out connector
  5. 8 x USB 2.0/1.1 ports
  6. 2 x IEEE 1394a ports
  7. 1 x RJ-45 ports
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line
I/O Controller
  1. iTE IT8718 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control
BIOS
  1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for Dual BIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Dual BIOS
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune 6
  8. Support for Dynamic Energy Saver Advanced
  9. Support for Time Repair
  10. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft/ Windows/ Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.


* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
