ThermalTake ProWater 850i Liquid Cooling System Kit - LGA775, AMD AM2

No Longer Available

Part Number:

95824

(?) Brand:

ThermalTake Web Site

Manuf No:

CL-W0175
CLW0175

Shipping Weight:

6 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

, CLW0175, CL-W0175

Overview

	Brazing Copper Waterblock:
	1.Pure Copper Water Block for maximum heat conductivity from heat source.
	2.Advanced Brazing technology improves reliability and leakage free.
	3. All-in-one mounting design supports all latest CPU from Intel & AMD.
	(Includes: Intel Socket LGA775 and AMD K8/AM2.)
	12cm Motorsports Radiator :
	1. DTT - Dimple Tube Technology swirls the coolant within the radiator to increase thermal transfer.
	2. An all-aluminum radiator featuring expanded outer fins and tube style for maximum performance.
	3.Silent 120mm variable resistor fan spinning from 1300 to 2400rpm
	Durable and powerful 500 liters-per-hour pump:
	1. The P500 pump provides years of reliable service
	2. The pedestal can be secured onto the case by screws included
	3. Ceramic bearings significantly increase the life expectancy of the pump
	4. Professionally designed inlet and outlet, eliminating any blockage
	High-capacity Liquid Tank:
	1. Holds up to 350cc of coolant for continuous usage
	2. Easy to refill and maintain
	Flow meter:
	Accurate monitoring and fast response- Transparent cover clearly shows the movement
	of the coolant.
	iStripe :
	1.Complete eliminates deformation of tubes over time
	2.Allows sharp bending radii while keeping liquid flow smoothly
	Rugged and free-flowing 3/8" tubing:
	The tubes are composed of special material to prevent wear and tear as well as increasing
	water-flow

Features

Detailed Features

Motorsports Radiator:
Dimple Tube Technology with louvered fin radiator greatly increases the surface area for added cooling capability
Silent VR Fan:
Adjustable 120x120x25mm blue LED fan, (1300~2400RPM)

Rugged and Free-Flowing 3/8" Tubing

CPU Water Block:
Pure copper waterblock designed with brazing technology

iStripe:
To reshape tubes that have deformed over time without disassembling the system.

Flow TX:
Clearly shows the
movement of the coolant

P500 pump:
- DC 12V liquid pump
- Flow rate :
500L/hr, can easily handle
extra water blocks of GPU, memory, HDD or Northbridge

Refill Tank:
Transparent reservoir contains 350 c.c. of liquid capacity, easy to refill

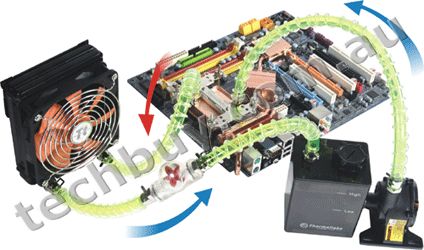

Liquid flow system

Blue arrow: Cold water in
Red arrow: The heat to be took out

Application

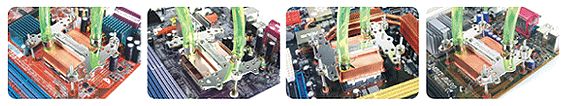

Clip for LGA775	Clip for P4	Clip for AM2	Clip for K8

Specifications

Water Block :
Dimensions	58mm(L) X 58mm(W) X 35mm(H)
Material	All copper designed
Tubing & Hoes Clip	For 9.5mm ID (3/8) tubing
Weight	336(g)

Pump :
Dimensions	75(L) x 70(W) x 75(H) mm
Bearing	Ceramic bearing
Maximum Capacity	500 L/ hr
Rated Voltage	DC 12V
Input current	600 mA
Connector	4 pin
Noise	16 dBA
Life time	80000 hr (MTBF)

TMG Radiator :
Dimensions	153(L) x 120(W) x 28(H) mm
Material	Aluminum
Tube Design	Aluminum, Dimple
Fin Design	Aluminum, Louvered
Tubing & Hoes Clip	For 9.5mm ID (3/8) tubing

Fan :
Fan Dimension	120(L) x 120(W) x 25(H) mm
Fan Speed	1300 ~ 2400 RPM
Noise	16 ~ 30 dB
Fan Connector	4 pin

Liquid Tank :
Dimensions	86(L) x 66(W) x 110(H) mm
Capacity	350 c.c
Tubing & Hoes Clip	For 9.5mm ID(3/8) tube

iStripe :
Length	300 mm x2 pcs
Material	TPU

Flow TX :
Dimensions	60mm(H) x 35 mm (W) x 25 mm (D)
Tubing & Hoes Clip	For 9.5mm ID(3/8) tube

Tube :
Dimensions	9.5mm ID(3/8) tube
Material	Green UV

Coolant :
Capacity	500 c.c
Major Material Ingredient	Propylene Glycol

Application :
CPU	AMD AM2 series AMD K8 series Intel LGA775 Intel P4
