ThermalTake UV Series Fan - 120x120x25mm, Sleeve Bearing, 1400rpm, 54.45CFM, 21dB - Green

IMG 1 of 0
No Longer Available
Part Number:
95841
(?) Brand:
ThermalTake Web Site
Manuf No:
A2276
Shipping Weight:
0.25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
A2276



Features

Great UV reactivity, ideal for case MOD
Three dimensions selections, 8.9.12 CM
Application of PC case
4 pin connector with Power input
3 pin connector with fan speed signal output

UV Fan 8025 Fan 9025 Fan 12025 Fan Power Connector

 Detail Information
Structure (We strongly recommend using these cable with Thermaltake Perfectlight D1721)
Function 2:
4-pin power input &
3-pin speed signal output
Application
Case Fan view CPU Fan view


Package View

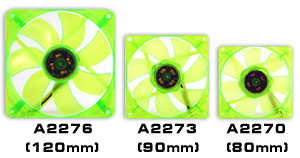

 Dimension
A2276 (120mm)
A2273 (90mm)
UNIT: mm
A2270 (80mm)


Detail Specifications
P/N
A2270
A2273
A2276
Frame Color
Green UV
Green UV
Green UV
Fan Dimension
80x80x25 mm
92x92x25 mm
120x120x25 mm
Rated Voltage
12V
12V
12V
Started Current
6V
6V
9V/ 10 (Max)
Rated Current
0.10A/ 0.14A (Max)
0.13A/ 0.16A (Max)
0.3A (Max)
Power Input
1.2W/ 1.68W (Max)
1.56W/ 1.92W (Max)
3.6W (Max)
Fan Speed
2000RPM 10%
1800RPM 10%
1400RPM 15%
Max. Air Flow
27.8 CFM
30.68 CFM
54.45 CFM
Max. Air Pressure
1.98 mm-H2O
1.53 mm-H2O
1.874 mm-H2O
Noise
21dB
21dB
21dB
Bear Type
Sleeve
Sleeve
Sleeve
Life Expectation
30,000hrs
30,000hrs
30,000hrs
Connector
4 pin
4 pin
4 pin
Weight
63g
86g
140g

 Logo Information
UV Fan 8025 Fan 9025 Fan
12025 Fan Power Connector

No additional files, specification sheets, guides or documentation found for product.
