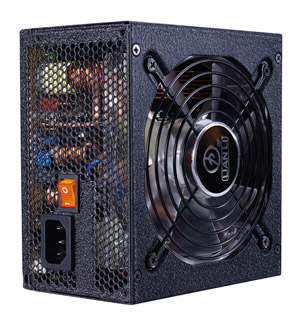

Lian Li 470W Maxima Force Power Supply - ATX 12V v2.3, EPS 12V, 120mm Fan
4x SATA, 2x PCI-E 6-pin

The ever increasing demand of gamers for high-end products and outstanding performance has initiated Lian Li to announce a new series of Power Supply Units (PSU) called the MAXIMA Force. Building from Lian Lis reputation as an enthusiast brand catering to the ultimate tastes, the product features a 120mm ball-bearing fan, and Japanese Main Capacitors to ensure that the quality and standards, as well as durability of Lian Li products is as outstanding as our customers expect.

Specification

Model

PS-A470GB

Type

ATX PS/2 & EPS

Dimension

Input Voltage

100-240Vac

Input Current

115V /10A 230V/6A

Input Frequency Range

115V/50Hz 230V/60Hz

PFC (Power Factor Correction)

ACTIVE PFC (>.99)

Power Good Signal

100~500 ms

Hold Up Time

>17ms

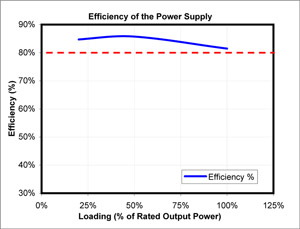

Efficiency

>81% (85% max)

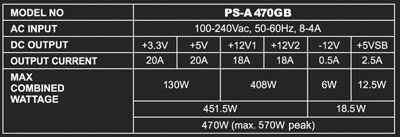

Output Capacity

470W

Max Output Capacity

570W

Operation Temperature

0-40

MTBF

>100,000 hours

Protection

OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP

Safety

Nemko / TUV /cUL/ CE / BSMI / FCC

Fan

120 Ball-bearing Fan (max 2500RPM)

Noise

Weight

Connector

20+4 Pin Main ConnectorX1

4+4 Pin 12V x 1

SATA x 4

Feature

1. MAXIMA Force complies with the newest Intel standard ATX 12V V2.3

2. MAXIMA Force complies with the newest EPS 12V

3. Environment friendly design for energy savingwith Active PFC (>.9) / High efficiency (>80%)

4. Power Failure Detector with OVP/OCP/OLP/SCP/UVP/OTP

5. Support multi-core CPU and Multi GPU/graphics cards system

6. Support over-clocked CPU ,GPU, and RAM System hardware, best stability power output.

7. PCI-E connector with bead-core protection to minimized EMI for clean output

8. 100WOverpower outputfor one hour continuously(Maximum)

9. Deliver FULL rated power output

10. Universal Input, automatically adjustsbetween 100V to 240V power grids

11. Ball-bearing fan and Japanese main capacitors ensure best product reliability.

12. D connector for easy connector-removal

13. External case coated withunique paint finishing.
