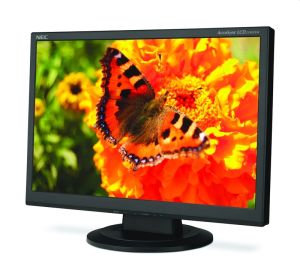

NEC LCD224WXM-BK LCD Monitor - Black
  • 22", Widescreen, 5ms, 1680x1050, 900;1, 300cd/m2, DVI+VGA, Speakers

IMG 1 of 1
No Longer Available
Part Number:
97417
(?) Brand:
NEC
Manuf No:
LCD224WXM-BK
LCD224WXMBK
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
LCD224WXMBK, LCD224WXM-BK

A widescreen desktop display that helps increase your productivity, while enlivening your senses

Widen your perspective with the 22" NEC AccuSync LCD224WXM, a widescreen desktop display that helps increase your productivity, while enlivening your senses.

The LCD224WXM's wide-format screen provides roughly the same work area as two smaller-sized LCD screens, allowing you to work simultaneously in multiple/side-by-side application windows. Other unique advantages include integrated speakers and a remarkable 900:1 contrast ratio.

Features:
    • Ambix digital/analog connectivity with upgraded video cards and software as well as connection to two systems
    • Rapid ResponseTMtechnology delivers virtually uninterrupted viewing of high-speed, full-motion video
    • Wide-format screen increases productivity by expanding your working area for multiple application windows
    • Space-saving multimedia speakers provide quality sound
    • XtraView technology provides for some of the widest viewing angles available
    • Eco-Mode helps extend the life of the display by allowing you to adjust the OSD, thereby conserving energy
    • NaViSetTM software offers an expanded and intuitive interface, allowing you to more easily adjust display settings via mouse and keyboard
Specifications:

Display
Viewable Image Size 22"
Pixel Pitch 0.282
Pixels Per Inch 90 @ native resolution
Brightness 300 cd/m2
Contrast Ratio 900:1
Viewing Angle 176 Vert., 176 Hor. (88U/88D/88L/88R) (CR>5)
Response Time Rapid Response (5ms)
Synchronization Range
Horizontal 31.5 - 81.1 KHz (Analog/Digital)
Vertical 56 - 76 Hz
Input Signal
Video Analog 0.7 Vp-p/75 Ohms
Sync Separate Sync: TTL Level (Positive/Negative)
Input Connectors DVI-D and VGA 15-pin D-sub
Native Resolution 1680 x 1050 @ 60-75 Hz
Power Consumption
On 50W
Power Savings Mode <2W
Dimensions (WxHxD)
Net (with stand) 505.2 x 390.9 x 221.8mm
Net (without stand) 505.2 x 342.9 x 65.2mm
Net Weight (with stand) 5.2 kg
Net Weight (without stand) 4.8 kg
VESA Hole Configuration Specifications 100 x 100mm
Environmental Conditions
Operating Temperature 5-35 C
Operating Humidity 30 - 80%
Operating Altitude 4572m
Storage Temperature -10 - 60 C
Storage Humidity 10 - 85%
Storage Altitude 12,192m
Additional Features Thin-frame (bezel), tilt, integrated speakers, headphone jack, No Touch Auto Adjust, cable management, digital smoothing, digital controls, AccuColor color control, sRGB, On Screen Display user controls, NaViSet software, DDC/CI, Plug and Play (VESA DDC2B), VESA DPMS power management, ISO 13406-2 Class II, Energy Star Tier 2, Windows Vista certification

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Please note: Most LCD monitors are covered by a 'dead pixel' policy that is manufacturer and model dependent, please contact the manufacturer for exact policy specifications.
