Xigmatek HDT-S2183 Dark Knight CPU Cooler - Intel LGA775, AMD S754/S939/S940, AM2, 120mm Fan, 1000-2200rpm, Max. 89.45CFM, Max. 30.1dBA

IMG 1 of 1
No Longer Available
Part Number:
97604
(?) Brand:
Xigmatek Web Site
Manuf No:
CAC-SXHH3-U04
CACSXHH3U04
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CACSXHH3U04, CAC-SXHH3-U04, 21XTS1283DK, 21XT-S1283DK


Heat-pipe Direct Touch
Air Cooling System

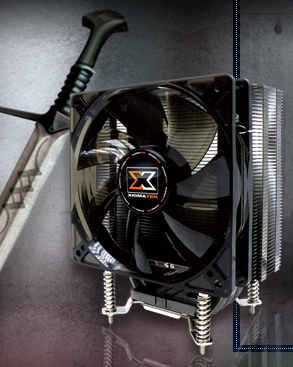

Dark Knight-S1283 retains the brilliant record of HDT-S1283 family - powerful, outstanding, high performing and user friendly. The Black Nickel creates a very gentle and noble image, which also increases
cooling performance. Like other H.D.T. series
coolers, it comes with the advantage of light
weight, easy installation, anti-vibration,
performance and user friendly.


Black Nickel causes a very gentle but also noble image, which also increases cooling performance.

With anti-vibration rubber for fan and 3 in 1 application retention module design, Dark Knight-S1283 provides users not only easy and quick installation but also lowest noise level.

Dark Knight-S1283 combines 120mm PWM fan, anti-vibration rubber, 3pcs F8 heat-pipe and 3 in 1 application of Intel/AMD CPU.



H.D.T. (Heat-pipe direct touch) technology.

Back plate and Spring screw to prevent M/B bended

3pcs 8mm high performance U type heat-pipes.

Overall black nickel heatsink

4pcs white LED / transparent black fan

Anti-vibration rubbers prevent Fan vibration and also absorb vibration noise

Light weight.
120mm highly efficient PWM fan.






Product Name
Dark Knight-S1283
Product Number
CAC-SXHH3-U04
Dimension
 120(W) x 50(D) x 159(H) mm
Heat Sink
 Base Material
 H.D.T. (Heat-pipes Direct Touch)
Fin Material
Aluminum Alloy
Heat-pipe
 SPEC
 8mm
Qty
3 pcs.
Fan Dimension 120(W) x 120(H) x 25(D) mm
Voltage Rating 12V
Speed 1000~2200 R.P.M.
Bearing Type Long Life Bearing
Air Flow 89.45 CFM (Max.)
Air Pressure 4.1 mmH2O (Max.)
Life Expectance 50,000 hrs
Noise Level 30.1 dBA (Max.)
Available color 4 white LED
Connector 4 Pin with PWM
Weight
 660g (w/fan)
Thermal Resistance
 0.15 /W



All Intel Socket LGA 775 CPU
(Core2 Extreme / Core2 Quad / Core2 Duo / Pentium Extreme Edition / Pentium D / Celeron D)

All AMD Socket AM2 / 754 / 939 / 940 CPUs
(Athlon 64 / FX / X2 / Opteron / Sempron)
