Introduction

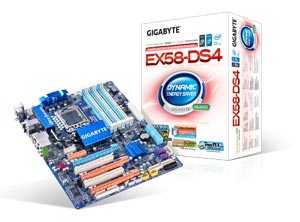

The GIGABYTE EX58-DS4 was designed from the power of Intel's next generation micro acrchitecture at the heart of the Intel Core i7 processors. With support for QPI (Quick Path Interconnect) with a transfer rate of 6.4 GT/s , blazing-fast 3 channel DDR3 memory and extensive overclocking capabilities, the EX58-DS4 delivers the optimal performance computing youve been waiting for your system.
|
 |
| |
|
Intel Core i7 Processor and X58 Chipset support
The EX58-DS4 was designed specifically to take advantage of the raw power of the next generation Intel Core i7 processors and the Intel X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rate (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.
Intel Core i7 processors also feature an integrated memory controller inside the processor die and support 192bit 3-channel DDR3 memory that delivers a 50% memory bandwidth enhancement and lower memory latency for incredibly fast memory access. Additionally, The EX58-DS4 features Intel Turbo Boost Technology, which is able to power down idle processor cores and dynamically reroute the power to the active cores for significant performance boosts, and at the same time, maintain greater energy efficiency. |
|
 |
|
Integrated Memory Controller
Intel Core i7 Processors feature triple channel DDR3 support
Intel Core i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core i7 processors also provide additional memory support including. |
|
 |
|
QPI , QuickPath Interconnect
Replacing the role of FSB
Intel uses the QPI to connect internal components of Core i7 processors , and to connect the CPU itself to the Northbridge and banks of memory.
QPI delivers:
Up to 25.6GB/sec of bandwidth between Core i7 processors and the rest of the system,providing exactly double the bandwidth of 1600 Hz FSB |
|
 |
|
Intel Turbo Boost Technology
Dynamically reroutes power to improve performance For situations when all cores are not needed for a particular workload, Intel Turbo Boost Technology powers down the idle cores and dynamically reroutes the power to the active cores, boosting their performance without wasting power. This allows the active cores to achieve significant overclocks. |
|
 |
|
ATI CrossFireX
With support for ATI CrossFireX, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-EX58-DS4 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.
Attention: When attempting to enable ATI CrossfireX Technology on this board. In case of unable to get Crossfire Technology working normally, please make sure to use ATI graphic cards that have hardware Crossfire bridge. (Please refer to ATI official website for more Crossfire Technology supporting details:
https://game.amd.com/us-en/content/images/crossfirex/CF_combo_chart_July08.jpg |
|
 |
|
50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.
 |
|
 |
|
Dynamic Energy Saver Advanced
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the worlds only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTEs DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.
GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
* The 6-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled. |
|
 |
|
Quick and Effortless Overclocking with One Click

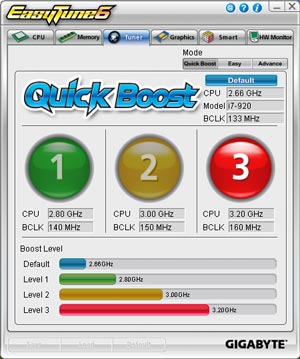

GIGABYTE Quick Boost provides 3 levels of CPU performance enhancement; a simple click on the desired level delivers quick and effortless overclocking for novice and experienced users alike.
 |
|
 |
|
EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system. |
|
 |
|
DualBIOS - Patented Dual Hardware BIOS Protection
DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. |
|
 |
|
Hardware OverVoltage Control IC - Enabling Extreme Overclocking
GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTEs Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance. |
|
 |
|
OV-Alert LED
4 sets of OV-Alert LEDs indicate the overvoltage level of the CPU, Memory, North Bridge and South Bridge to prevent component damage. |
|
 |
|
Visible Overclocking Reminder
OC-Alert LED indicates the level of CPU overclock from low to high. |
|
 |
|
Visible Temperature Reminder
Two sets of Temperature Alert LEDs indicate the current temperature level of the CPU and North Bridge |
|
| |
|
Onboard Quick Switches
Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment. |
