New products added on 30 October 2015
Gigabyte GA-X99-UD3P (Rev. 1.0) MotherboardLGA2011-3, X99, 4xDDR4-3333(O.C), 4xPCI-Ex16, 3xPCi-Ex1, 1xM.2, 10xSATA-III, 1xSATA-Express, RAID, GigLAN, 8Chl-HD, USB3.0, ATX

Gigabyte GA-X99-UD3P (Rev. 1.0) Motherboard

  • LGA2011-3, X99, 4xDDR4-3333(O.C), 4xPCI-Ex16, 3xPCi-Ex1, 1xM.2, 10xSATA-III, 1xSATA-Express, RAID, GigLAN, 8Chl-HD, USB3.0, ATX

Part Number: 401600
GA-X99-UD3P (rev. 1.0)


Intel® X99 Chipset

Specifications:

CPU
  1. Support for Intel® Core™ i7 processors in the LGA2011-3 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® X99 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. 4 channel memory architecture
  3. Support for DDR4 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
  6. Support for RDIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
(Please refer "Memory Support List" for more information.)
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.

  2. 2 x PCI Express x16 slots, running at x8 (PCIE_3, PCIE_4)
    * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.
    * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.
    (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
  3. ?
  4. 3 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

  5. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Multi-Graphics Technology
  1. Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology
    * The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration."
Storage InterfaceChipset:
  1. 1 x M.2 PCIe connector
    (Socket 3, M key, type 2260/2280 SATA & PCIe x2/x1 SSD support)
  2. 1 x SATA Express connector
  3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
    (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)
Chipset:
  1. 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
  2. (An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)
USBChipset:
  1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas® uPD720210 USB 3.0 Hub:
  1. 4 x USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x PCIe power connector
  4. 1 x M.2 Socket 3 connector
  5. 1 x SATA Express connector
  6. 10 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 1 x water cooling fan header (CPU_OPT)
  9. 3 x system fan headers
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x USB 3.0/2.0 header
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Trusted Platform Module (TPM) header
  15. 1 x Thunderbolt add-in card connector
  16. 1 x Clear CMOS jumper
  17. 1 x CPU mode switch
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 6 x USB 3.0/2.0 ports
  4. 4 x USB 2.0/1.1 ports
  5. 1 x RJ-45 port
  6. 1 x optical S/PDIF Out connector
  7. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  8. 2 x Wi-Fi antenna connector holes
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. Support for Q-Flash Plus
  5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    EZ Setup
    Fast Boot
    Cloud Station
    ON/OFF Charge
    Smart TimeLock
    Smart Recovery 2
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. cFosSpeed
Operating System
  1. Support for Windows 8.1/8/7
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.


Samsung Galaxy Note 5 Handset - Gold64GB Version

Samsung Galaxy Note 5 Handset - Gold

  • 64GB Version

Part Number: 401599
Galaxy Note5

Overview

Bigger has always been better. Galaxy Note proved that time and again. It also changed the entire game with S Pen. A versatile tool for ideas, goals and dreams. This time it's Galaxy Note5. The most powerful and beautiful version to date.

Design

Its still as big but now slimmer, framed by sleek metal and glass. Use S Pen on a gorgeous flat surface while the phone's dual-edge back lies snuggly in your hand.

Gold platinum Galaxy Note5 and S Pen

S Pen

Its what makes Galaxy Note5 click. And its even more like an actual pen, one that writes just as well. But achieves a lot more, making life that much easier. Youll never want to put it down.

Charging

When youre using S Pen as much as this, battery life should be the last thing on your mind. We took care of that in every way possible from longer battery life to fast charging to more ways to charge.

Real Racing game screen shot on gold platinum Galaxy Note5 screen

Entertainment

The next best thing to live music is to have it handy on your Galaxy Note5. It's also awesome to shoot your own professional-grade videos as well as broadcast them live straight from Galaxy Note5.

Electronic Arts Inc. The names, designs, and logos of all products are the property of their respective owners and used by permission. All other trademarks are the property of their respective owners.

Camera

At dawn, with friends, at home, on holiday. You shouldnt worry about the lack of light or missing the moment. Snap away. Because you can when its the Galaxy Note5 camera.

On-screen image taken with Galaxy Note5.

Front view with photo and back view of gold platinum Galaxy Note5

S view cover on white pearl Galaxy Note5

Accessories

Youre going places, doing things. Which means you need covers, chargers, headphones or speakers. So you can stay covered, charged and fully entertained.

SIDE BY SIDE. It always helps to have your notes and files on your laptop as well. Connecting the two devices couldn't be easier with SideSync. And while you're on your computer, respond to texts and get important reminders and alerts.

TV and gold platinum Galaxy Note5

GATHER AROUND. Invite your family and friends to enjoy the photos and videos you took on your Galaxy Note5. One tap and it's all up on your TV. Convergence brings people together.

UNIVERSALLY SECURE. Samsung Pay is easily one of the most hassle-free and safest ways to pay with fingerprint authentication and extra layers of security.

The Guardian app icon / SketchBook for Galaxy app icon / OneDrive app icon / ArtRage app icon

Dimension
Dimension

153.2 x 76.1 x 7.6 mm (171 g)

Camera
Camera

Rear : 16MP OIS (F1.9)
Front : 5MP (F1.9)

Display

Display

5.7 Quad HD Super AMOLED
2560 x 1440 (518 ppi)

S pen

S pen

Sample rate 240Hz
Pressure level : 2,048

AP
AP

Exynos 7420 (64-bit, 14nm)
Octa core (2.1GHz Quad + 1.5GHz Quad)

OS

OS

Android 5.1 (Lollipop)

Network

Network

LTE Cat.9
LTE Cat.6
* May differ by country and carrier.

Memory
Memory

RAM : 4GB RAM (LPDDR4)
STORAGE : 32/64GB (UFS 2.0)

Storage options may vary by country and carrier.

Battery

Battery

3,000mAh

Charging

Charging

Fast Charging, Fast Wireless Charging

Payment
Payment

NFC, MST (US/KOR)

Available in select countries and accepted payment solutions may vary by country.

Connectivity

Connectivity

WiFi 802.11 a/b/g/n/ac (2.4/5GHz), MIMO, Bluetooth v 4.2 LE, ANT+, USB 2.0, NFC, Location (GPS, GLONASS, BeiDou)

BeiDou coverage may be limited.

Sensors
Sensors

Accelerometer, Proximity, RGB Light, Geo-magnetic, Gyro, Fingerprint, Barometer, Hall, HRM

Audio
Audio

Format : MP3, M4A, 3GA, AAC, OGG, OGA, WAV, WMA, AMR, AWB, FLAC,MID, MIDI, XMF, MXMF, IMY, RTTTL,RTX, OTA

Video

Video

Format : MP4, M4V, 3GP, 3G2, WMV, ASF, AVI, FLV, MKV, WEBM
Corsair Gaming MM300 Anti-Fray Cloth Mouse Mat - Dignitas eSports EditionSuperior Control For Lethal In-Game Accuracy, Accurate And Precise, Zero Slip, 300x360x3mm

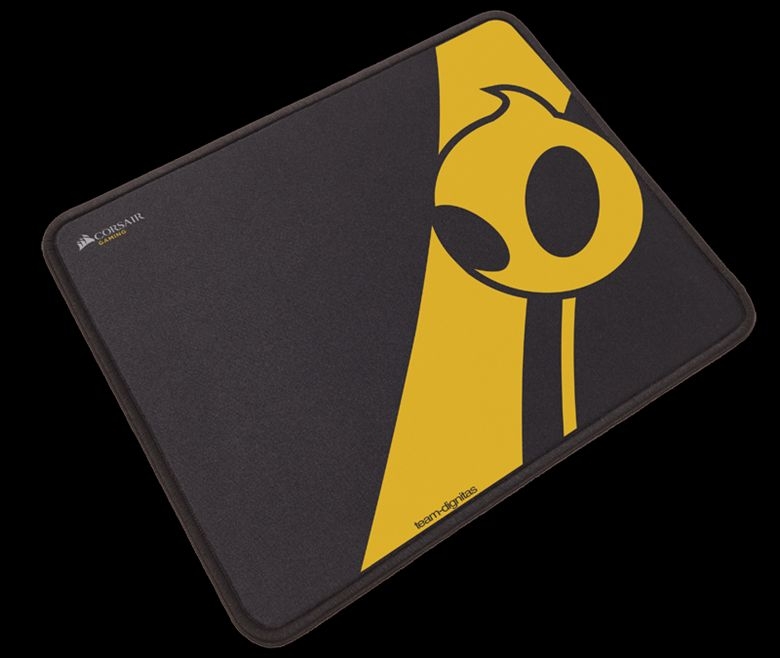

Corsair Gaming MM300 Anti-Fray Cloth Mouse Mat - Dignitas eSports Edition

  • Superior Control For Lethal In-Game Accuracy, Accurate And Precise, Zero Slip, 300x360x3mm

Part Number: 401598

Corsair Gaming MM300 Anti-Fray Cloth Mouse Mat — Dignitas eSports Edition



Overview

CH-9000107-DS



Superior control for lethal in-game accuracy.

The Corsair Gaming MM300 is a high endurance cloth mouse mat for high-DPI gaming mice. Reinforced stitched edges guard against surface peeling, while the textile-weaved surface gives superior control for lethal in-game accuracy.




Superior control

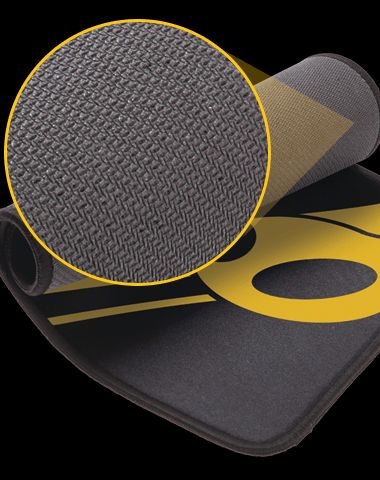

The textile-weave surface is designed for pixel-precise targeting and low friction.

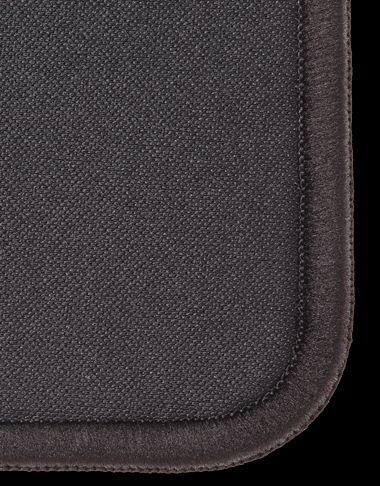

No fray, no fuss
The stitched edges guard against surface peeling.

Accurate and precise
Bring your best gear, and bring your best game… MM300 is optimized for both laser and optical gaming mice.





Zero slip

The anti-skid rubber base helps it stay securely in place.

Contents and Specifications

Package contents
Corsair Gaming MM300 Anti-Fray Cloth Mouse Mat — Dignitas eSports Edition

Technical Specifications
Size: 300mm x 360mm x 3mm

Specifications

Warranty
One Year
Dimension
360mm x 300mm x 3mm
Material
Cloth
Optimized For
High-DPI gaming mice
Corsair Sabre Laser RGB Gaming Mouse - Dignitas eSports EditionHigh Performance, 8200DPI Laser Sensor, 8 Programmable Buttons, 1,000Hz USB Refresh Rate, DPI Selector With Multi-Color Indicator

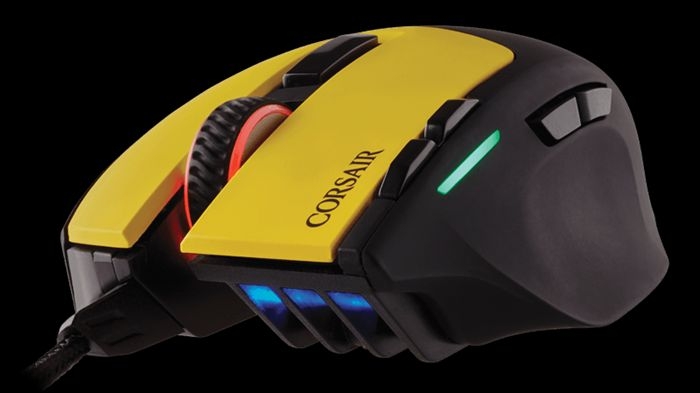

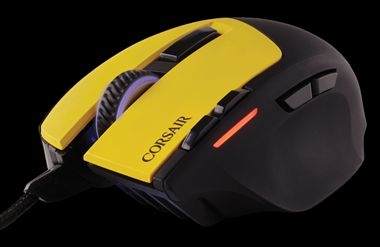

Corsair Sabre Laser RGB Gaming Mouse - Dignitas eSports Edition

  • High Performance, 8200DPI Laser Sensor, 8 Programmable Buttons, 1,000Hz USB Refresh Rate, DPI Selector With Multi-Color Indicator

Part Number: 401597

Corsair Gaming Sabre Laser RGB Gaming Mouse — Dignitas eSports Edition



CH-9000225-DS

Ultra light weight and superior accuracy for fast gameplay

Ultra light weight at just 100g, the Corsair Gaming Sabre Laser RGB 8,200 DPI gaming mouse offers easy comfort and fluid reach balanced by consistently accurate tracking, 1,000 Hz refresh rate, eight configurable buttons, and super-responsive switches. Four-zone 16.8M color backlighting creates a beautiful, personalized look that matches your style.

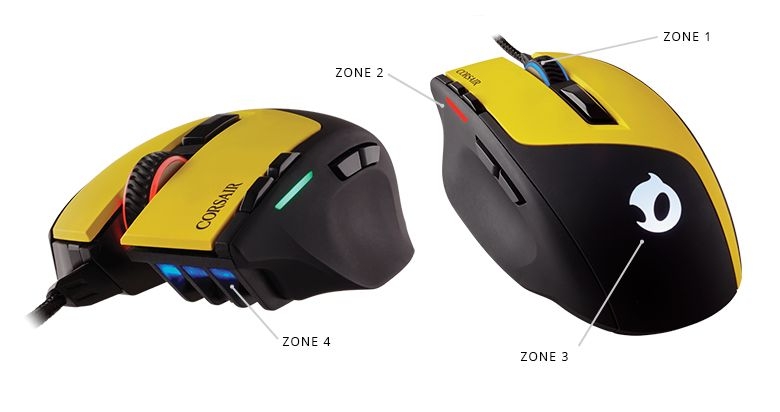

Four-zone 16.8 million color backlighting

It’s yours, so make it your own. Use the Corsair Utility Engine (CUE) software to define your hue and brightness level for each zone. Fly your colors with a unique four-color pattern, or use CUE to set up automatic color cycling with your choice of speed and palettes.

8,200 DPI laser sensor and multi-color DPI indicator

The high-resolution sensor gives you serious flexibility and headroom for picking the exact DPI to meet the task, and with the on-board DPI indicator, you’ll know at a glance if you’re set up to strafe or do some long-range damage. You can even set up your own customized DPI indicator color palette.

One weapon for any battle

With advanced ergonomics that comfortably support your entire hand, you can wield the Sabre in a variety of grip styles. The adaptability in grip gives you the adaptability you need to compete in a wide variety of game types from FPS to RTS and MOBA. The 8 programmable buttons can be customized with ease to fine tune your play.

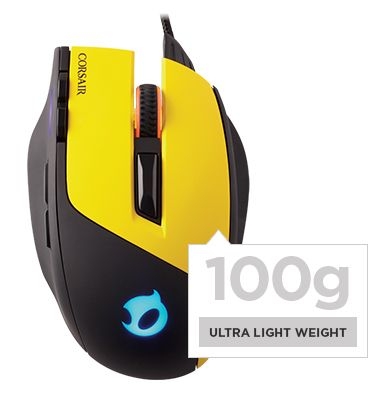

Ultra light weight for faster play

Sabre is perfect if you prefer a lighter weight mouse. Each component has been screened for weight reduction without sacrificing performance, and the result is a mouse that weighs in at just 100g.

If you like playing at lower DPIs and taking advantage of a larger mouse mat, you’ll be able to react quicker and you’ll have less fatigue over long gaming sessions.

Features

8 programmable buttons

The fully customizable button set makes the Sabre RGB a truly intuitive extension of your hand.

1,000 Hz USB refresh rate

No matter how fast you are, you can probably get faster, and a great gaming mouse shouldn’t stand in your way. You’ll enjoy lag-free responsiveness that keeps up with even the fastest play.




Braided easy-flex USB cable

Move where you want with 1.8 feet of unencumbered roaming.

DPI selector with multi-color indicator

Use CUE to set up your own DPI sequence and color map.

Contents and Specifications

Package contents

  • Corsair Gaming Sabre Laser RGB Gaming Mouse — Dignitas eSports Edition
  • Quick start guide

Compatibility and System Requirements

  • PC with a USB port
  • Windows 10, Windows 8, or Windows 7
  • An internet connection is required to download the Corsair Utility Engine software



Technical Specifications:

 Warranty: Two years
 DPI: 50 dpi - 8200 dpi
 Sensor Type: Laser
 Mouse Backlighting: 4 Zone RGB
 Programmable Buttons: 8
 Report Rate: Selectable 1000Hz/500Hz/250Hz/125Hz
 On-board Memory: Yes
 Mouse Feet: Extra Large PTFE
 CUE Software: Enabled
 Cable: 1.8m Braided Fiber
 Game Type: FPS
 Dimensions: 124mm x 80mm x 38mm

Serveredge RMF-01-04 Rackmountable 4-Way Fan Kit - For Server Rack And EnclosureServeredge RMF-01-04 Rackmountable 4-Way Fan Kit - For Server Rack And EnclosurePart Number: 401596
$149.15
ASUS B150M-A MotherboardLGA1151, B150, 4xDDR4-2133, 1xPCI-Ex16 v3.0/2.0, 2xPCI-Ex1 v3.0/2.0, 6xSATA-III, 1xGigLAN, 8Chl-HD, USB3.0, VGA, DVI, HDMI, mATX

ASUS B150M-A Motherboard

  • LGA1151, B150, 4xDDR4-2133, 1xPCI-Ex16 v3.0/2.0, 2xPCI-Ex1 v3.0/2.0, 6xSATA-III, 1xGigLAN, 8Chl-HD, USB3.0, VGA, DVI, HDMI, mATX

Part Number: 401594

B150M-A

Full-featured micro-ATX B150 with 5X Protection II for dependable stability, DDR4 support and reversible USB Type-C connectivity

  • 5X Protection II – Advanced hardware safeguards for all-round protection
  • DDR4 memory compatibility
  • USB Type-C for convenient connectivity
  • Epic gaming audio with LED-illuminated shielding
  • Media-acclaimed UEFI BIOS with EZ Flash 3
  • Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance




HDMI
VGA Port
DVI-D Port
5Gb/s USB Type C
USB 3.0 Ports
LAN
Audio
Gaming Audio
LED-illuminated design
Audio Shielding
Dedicated audio PCB layers
Premium Japanese-made audio capacitors
DIGI+VRM & EPU
4 x DDR4 slots
Support 14nm CPU
Intel® LGA 1151 Socket
SATA 6Gb/s Ports
Intel®B150 Chipest
2 x Font USB 3.0

Dependable Stability




Surge-Protected Networking
Overvoltage Protection
Stable Power Supply
Overcurrent Protection
Stainless-Steel Back I/O

Advanced Hardware Safeguards

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard

Pumped-up throughput. 2.5X higher surge tolerance.

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

2.5X Higher Surge Tolerance

Line to Ground

15KV

6KV

ASUS LANGuard

Traditional LAN Port



 EMI Cover





Surface-mounted capacitors

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.





DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.

DIGI+ VRM

Precision control for stable power

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.

ESD Guards

Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

LAN port
ESD TVS diode protection on the LAN circuit.

USB connectors
TVS diodes for surface-mount and dual-inline packages.

VGA connectors
Additional on-circuit ESD TVS diodes to protect D-Sub functionality.

Keyboard and mouse connectors
Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.

Superb Performance
DDR4 Support

Make your memory go faster

With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.





Enjoy the DDR4 benefits with ASUS 100 series. (DDR4 vs DDR3)

2X
faster write
read speeds

2X
larger
Capacity

20%
lower power
consumption

Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.

S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.

Q-Fan Control
You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!

My Favorites
Quickly find tuning options and add preferred tools to the list.

EZ Mode

Intuitive Graphical Fan Control: Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP: Improve your DRAM performance with a click.
SATA Information: View SATA port details for easy device recognition.
Fast Clock Adjustment: Use mouse controls to change the time and date.

Advanced Mode

Last Modified Log: Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming: Rename SATA ports for easy identification.

Ultrafast Transfer Speed

Instant front-panel USB 3.0 Experience

We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

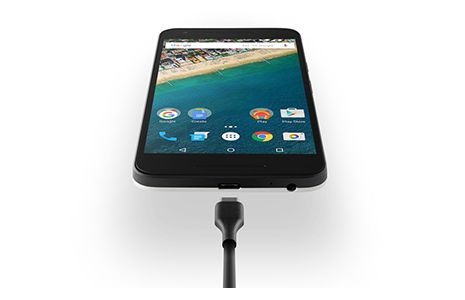

USB Type-C for convenient connectivity

USB Type-C (USB-C) delivers future device compatibility and high-speed USB connectivity of 5Gbit/s from a slim, reversible port.

1/3 smaller — than traditional USB Type-A
Reversible ease — any-way-up design means USB connections are made first time, every time

Future-proof compatibility — compatible with the latest devices today and the exciting new trends of tomorrow

Gear up! Win the battlefield
Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated onboard audio like you've never before experienced!

LED-illuminated design
Brighten up your build with the gorgeous illuminated audio trace path.

Noise Isolation
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Audio Enjoyment
Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

Easy PC DIY
Safe motherboard mounting
Component-free areas to minimize damage risk
Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact — so you'll assemble your PC with total confidence!

Q-Slot
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Optimized Cooling

Fan Xpert 2+
Advanced fan controls

With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!

Auto-Tuning Mode: Scans and detects all fan characteristics for single-click customization.
Extreme Quite Mode: Reduces CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.
RPM Fixed Mode: Lowers noise levels to near-0dB silence, allowing to you fix the fan speed.



One-Stop Control

Push Notice
Media Streamer
Media Streamer
Mobo Connect
PC Cleaner
Push Notice
Media Streamer
AI Suite III
Mobo Connect
PC Cleaner
AI Suite 3
One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Intel CPU and chipset features

Intel® B150 Express Chipset

The Intel® B150 Express is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® B150 Express chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
Intel® SBA support
Intel® SBA (Small Business Advantage) is a combination of hardware and software that provides unique security and productivity capabilities designed for small businesses. Intel® SBA requires MEI drivers (AMT host software kit) be installed.

Platform requirements:

Windows® 7 (32/64-bit) / 8.1 (64-bit) / 10 (64-bit)
PCH with 6th-generation Intel® Core™ processor (100 Series platforms) with 6.5MB Intel® Management Engine (ME) 11.0 firmware installed

CPU and chipset requirements:

Intel® Core™ i3/i5/i7 with one of these chipsets: B150, H170, Q170
The Intel® Management Engine software kit must be installed (the Local Manageability Service and the Intel ® Management Engine Interface must be installed and running.)
*Local administrator rights on the target machine
*Some models without the 6.5MB Intel® Management Engine firmware do not support Intel ® SBA. Please refer to the specifications sheet for details.
*Visit the ASUS website at www.asus.com for the latest CPU QVL (Qualified Vendors List).


  • CPU
    Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B150
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports up to 3 displays simultaneously
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
    2 x PCIe 3.0/2.0 x1
  • Storage
    Intel® B150 chipset :
    6 x SATA 6Gb/s port(s), gray,
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
    ASUS LAN Guard
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC *1
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    Intel® B150 chipset :
    1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Support 3A power output)
    Intel® B150 chipset :
    4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
    Intel® B150 chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
  • Special Features
    ASUS 5X Protection II :
    - ASUS LANGuard - 2.5X higher surge tolerance
    - ASUS Overvoltage Protection - World-class circuit-protecting power design
    - ASUS DIGI+ VRM - 6 Phase digital power design
    - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
    - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - Low EMI Solution
    - ESD Guards
    - USB 3.0 Boost
    - Mobo Connect
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    - ASUS Fan Xpert 2+
    ASUS EZ DIY :
    - ASUS EZ Flash 3
    - ASUS MyLogo 2
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Slot
    Media Streamer
  • Operating System Support
    Windows® 10 , 64bit
    Windows® 8.1 , 64bit
    Windows® 7 , 32bit/64bit *2
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
    2 x USB 3.0 (blue) Type-A
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x TPM header
    1 x LPT header
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Chassis Intrusion connector(s)
    1 x Clear CMOS jumper(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
  • BIOS
    128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial
    Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    mATX Form Factor
    9.2 inch x 8.1 inch ( 23.4 cm x 20.6 cm )
  • Note
    *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
    *2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.



Razer BlackWidow Expert 2014 Edition Mechanical Gaming Keyboard - BlackHigh Performance, Full Mechanical Keys For Superior Tactility And Faster Response, 10 Key Roll-Over In Gaming Mode

Razer BlackWidow Expert 2014 Edition Mechanical Gaming Keyboard - Black

  • High Performance, Full Mechanical Keys For Superior Tactility And Faster Response, 10 Key Roll-Over In Gaming Mode

Part Number: 401593

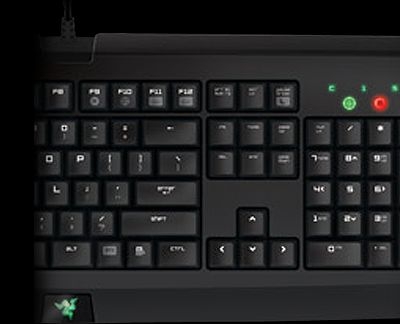

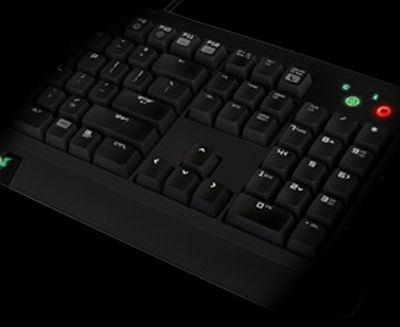

Razer BlackWidow Expert 2014 Edition Mechanical Gaming Keyboard



Full Mechanical Keys for Superior Tactility and Faster Response

The Razer BlackWidow’s mechanical key technology provides a distinctive tactile feedback in form of a light pronounced tap to your fingers giving you an entirely new feel on your keyboard. With its optimized actuation force of 50g and a reduced actuation distance of 2 mm the Razer BlackWidow’s keys allow you to actuate your commands faster than on any other standard gaming keyboard.

10 key roll-over in gaming mode

Actuate as many keys as there are fingers on both your hands and have them all register accurately and quickly during gaming. With the Razer BlackWidow’s gaming mode 10 key roll-over, you can deliver overwhelming destruction on your opponents, or just ensure every command is executed perfectly for victorious gaming.





 Razer Synapse 2.0

Razer Synapse 2.0 is cutting-edge intuitive proprietary software that functions as the Razer BlackWidow’s brain – automatically syncing the keyboard to a cloud server to download driver and firmware updates, as well as save individual gamer settings like keybinds and macros without you needing to lift a finger. Learn more

TECH SPECS

Full mechanical keys with 50g actuation force
1000Hz Ultrapolling
Fully programmable keys with on-the-fly macro recording
10 key rollover anti-ghosting
Razer Synapse 2.0 enabled
Gaming mode option
5 additional dedicated macro keys
Audio-out/mic-in jacks
USB passthrough
Braided fiber cable
Approximate Size : 475 mm / 18.72” (Length) x 171 mm / 6.74” (Width) x 20 mm / 0.79” (Height)
Approximate Weight : 1500 g / 3.31 lbs

System Requirements

PC with USB port
Windows® 7 / Windows Vista® / Windows® XP
Internet connection (for driver installation)
At least 75MB of hard disk space

Intel P4304XXMFEN2 Server Chassis - 4U Rackmount/Pedestal, 550W PSU4x Fixed 2.5

Intel P4304XXMFEN2 Server Chassis - 4U Rackmount/Pedestal, 550W PSU

  • 4x Fixed 2.5" Or 3.5" Drives, Intel Server Board S2600CW Family Support

Part Number: 401592
Server Chassis P4304XXMFEN2

Specifications

Essentials
Launch Date Q4'14
Status Launched
Expected Discontinuance Q4'17
Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Chassis Form Factor 4U Rack or Pedestal
Chassis Dimensions 17.24" x 24.9" x 6.81"
Datasheet Link
Description 4U pedestal chassis designed specifically for the Intel® Server Board S2600CW family supporting up to four 3.5 inch fixed drives. Optional drive upgrade kits available.
Target Market Embedded
Power Supply 550 W
Power Supply Type AC
# of Power Supply Included 1
Redundant Fans No
Redundant Power Supported No
Backplanes Sold Separately
Included Items (2) Fixed fans, (1) 550W fixed power supply, (1) standard control panel, (4) fixed 3.5 inch drive sleds, (4) fixed power connectors, (1) 4-port fan-out SATA cable, (1) processor/memory air duct, (1) fixed bezel, (1) fixed EMI cover, (1) spare hot-swap EMI cover, and (1) Quick User Guide
# of Front Drives Supported 4
Front Drive Form Factor Fixed 2.5" or 3.5"

Package Specifications
Max CPU Configuration 2


Microsoft PW4-00005 Wireless Mouse 900 - BlackWireless Technology, Full-Size Mouse Provides Comfortable, Precise Navigation, Ambidextrous Design, Customizable Buttons, Comfort Hand-Size

Microsoft PW4-00005 Wireless Mouse 900 - Black

  • Wireless Technology, Full-Size Mouse Provides Comfortable, Precise Navigation, Ambidextrous Design, Customizable Buttons, Comfort Hand-Size

Part Number: 401591
Wireless Mouse 900

Proof Points

Full-size mouse
Ambidextrous design
Customizable buttonsFull-size mouse

Full-size comfort, best-in-class navigation, great value

This full-size mouse provides comfortable, precise navigation for use in either hand. It has an amazing 2- year average battery life and customizable buttons to give you access to the Windows features you use most.

Key Feature

Full-size mouse provides comfortable, precise navigation
Ambidextrous design is great for use in either hand
Customizable buttons give you access to the Windows features you use most
2-year average battery life
3-year Hardware warranty

Additional Requirements include:

2 AA alkaline batteries (included)
USB port (proprietary 2.4 GHz included)

D-Link DWC-2000 Unified Wireless Controller - 4-Port Gigabit RJ-45/SFP Combo, 1-Port RJ45, 2xUSBD-Link DWC-2000 Unified Wireless Controller - 4-Port Gigabit RJ-45/SFP Combo, 1-Port RJ45, 2xUSBPart Number: 401589
$2,118.50
Microsoft PZ3-00011 Wireless Keyboard 850 - BlackWireless Technology, Advanced Encryption Standard (AES) 128-Bit Encryption, Windows Shortcut Keys, Media Keys For Music And Video ControlMicrosoft PZ3-00011 Wireless Keyboard 850 - Black
  • Wireless Technology, Advanced Encryption Standard (AES) 128-Bit Encryption, Windows Shortcut Keys, Media Keys For Music And Video Control
Part Number: 401588
$40.55
ASUS P302LA-R40026G Notebook - BlackCore i5-5200U(2.20GHz, 2.70GHz Turbo), 13.3

ASUS P302LA-R40026G Notebook - Black

  • Core i5-5200U(2.20GHz, 2.70GHz Turbo), 13.3"HD, 8GB-RAM, 128GB-SSD, WiFi-n, Bluetooth, Windows 7 Pro

  • Windows 8.1 Media

Part Number: 401587
I5-5200U, 4GB*2, 128G, 13.3',11bgn+BT, Win7 pro-8.1(64), Blk, 1 Year PUR
Intel BOXD34010WYKH-C5 NUC Kit Mini PCCore i3-4010U(1.70GHz), DDR3L(0/2), SATA-2.5

Intel BOXD34010WYKH-C5 NUC Kit Mini PC

  • Core i3-4010U(1.70GHz), DDR3L(0/2), SATA-2.5"(0/1), MSATA(0/1), GigLAN, NO O/S

Part Number: 401586

Mini PC - Intel® NUC Kit D34010WYKH

A revolution in ultra-compact device design, this new Intel® NUC packs more features, including support for 2.5-inch drives, into an innovative small form factor. This fully scalable, computing solution comes complete with the latest 4th generation Intel® Core™ i3 processor. The Intel NUC provides a flexible, customizable engine to drive home theater PCs, media server PCs, and intelligent computing for small spaces, or anywhere else you can imagine. The D34010WYKH SKU of Intel NUC has many useful features including four USB 3.0 ports, an infrared sensor, a headphone/microphone jack, Mini HDMI*, and Mini DisplayPort* video interfaces, and extra space to accommodate 2.5-inch HDD or SSD drives to support a variety of home or small office usages. The D34010WYKH is equipped with the 4th generation Intel® Core™ i3-4010U processor featuring visibly smart graphics using Intel® HD Graphics 4400 to provide amazing performance and visually stunning graphics.

Specifications:


SERIES
NUC (MINI i3/i5)
PROCESSOR Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
MEMORY SUPPORT Dual Channel DDR3L SODIMM, 1.35V, 1600MHz (NO MEMORY INCLUDED)
MEMORY SLOTS 2
STORAGE NO STORAGE DEVICE INCLUDED
STORAGE SUPPORT 1x MSATA SSD CARD SLOT, 1x SATA3 2.5" HDD / SSD
GRAPHICS Intel HD Graphics 4400
AUDIO 7.1 Surround audio via mini HDMI / mini DisplayPort
NETWORKING 1Gb Network Connection
WIRELESS Not Included
BLUETOOTH Not Included
IO CONNECTIVITY 4x USB3.0, Consumer infrared sensor, Headphone / Mic Jack, Mini Displayport, Mini HDMI, Network Port (LAN)
DIMENSIONS 11.5cm x 11.1cm x 3.3cm
INCLUDED IN THE BOX NUC Kit, VESA mount bracket with Screws, AC Power Adaptor, Installation guide
WARRANTY 3 Year Return to Base


Intel 800GB Solid State Disk, MLC, PCI-Ex4 v3.0 (SSDPE2MW800G4X1) 750 SeriesRead 2100MB/s, Write 800MB/s

Intel 800GB Solid State Disk, MLC, PCI-Ex4 v3.0 (SSDPE2MW800G4X1) 750 Series

  • Read 2100MB/s, Write 800MB/s

Part Number: 401585
Intel SSD 750 Series (800GB, 2.5in PCIe 3.0 x4, 20nm, MLC)

Specifications

Essentials
Sequential Read 2100 MB/s
Sequential Write 800 MB/s
Random Read (8GB Span) 420000 IOPS
Random Write (8GB Span) 210000 IOPS
Latency - Read 20 µs
Latency - Write 20 µs
Power - Active 15
Power - Idle 4
Vibration - Operating 2.17
Vibration - Non-Operating 3.13
Shock (Operating and Non-Operating) 50
Operating Temperature Range 0°C to 55°C
Weight 195g
Endurance Rating (Lifetime Writes) 1.2M hours
Mean Time Between Failures (MTBF) < 1 sector per 10^16 bits read
Warranty Period 5 yrs
Package Specifications
Capacity 800 GB
Form Factor 2.5" 15mm
Interface PCIe NVMe 3.0 x4
Lithography 20 nm
Advanced Technologies
Enhanced Power Loss Data Protection Yes
?High Endurance Technology (HET) No
Temperature Monitoring and Logging Yes
End-to-End Data Protection No
Intel® Smart Response Technology No
Intel® Rapid Start Technology No
Microsoft Project 2016 - English, Government, OLP, 1 License, No Level

Microsoft Project 2016 - English, Government, OLP, 1 License, No Level

Part Number: 401584
PROJECT 2016 ENGLISH GOVERNMENT OLP 1 LICENSE NO LEVEL
LG Nexus 5X Handset - Charcoal Black16GB Version

LG Nexus 5X Handset - Charcoal Black

  • 16GB Version

Part Number: 401583

Nexus 5X Charcoal Black 16GB

  • 5.2" Full HD Display and 12MP Camera
  • Android 6.0 (Marshmallow) OS
  • 2.0GHz Hexa-core Qualcomm Snapdragon 808 Processor
  • Fingerprint sensor for easy access



Features

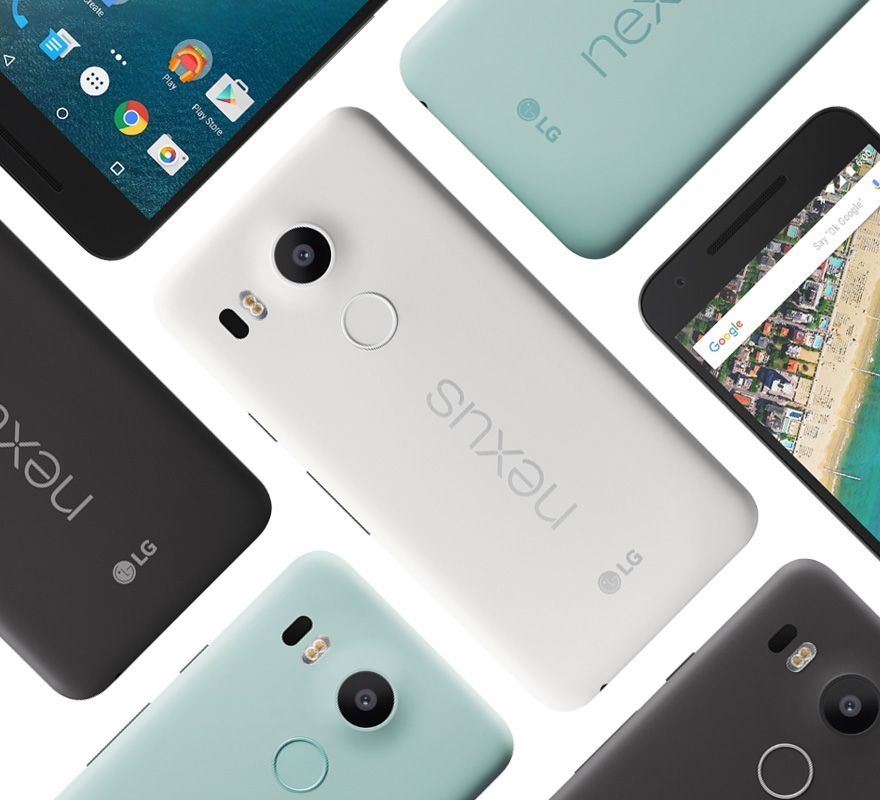

Introducing Nexus 5X: The Ultimate All Rounder

Introducing the Nexus 5X smartphone. Featuring a 5.2" full HD display, 12MP camera, 2.0GHz hexa-core Qualcomm Snapdragon 808 Processor and Android 6.0 (Marshmallow), there is little confusion as to why the Nexus 5X has been dubbed "The Ultimate All Rounder".

Introducing Nexus 5X



Capturing the soul of the Nexus family, Nexus 5X offers a 5.2 inch display, top line performance and a long lasting battery¹ in a compact, lightweight device that's ready to take on the day with you.

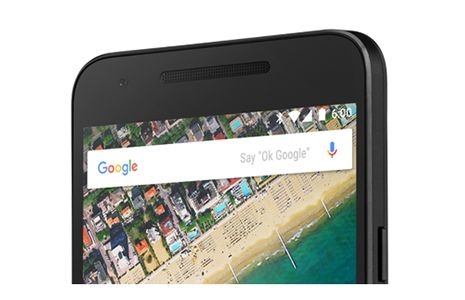

Hitting the sweet spot

Beneath the 5.2 inch display is a hexa-core Qualcomm Snapdragon 808 processor, for world class speed at an affordable price.

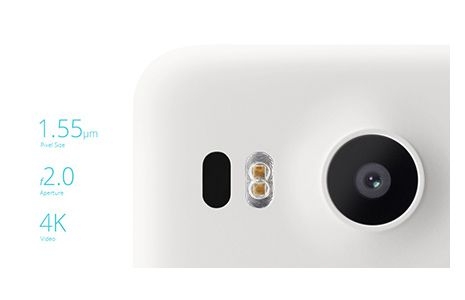

A 12 Megapixel camera

The 12 Megapixel camera and the fast Google Camera app helps you take stunning pictures and the smart Google Photos app will keep your memories at you fingertips.

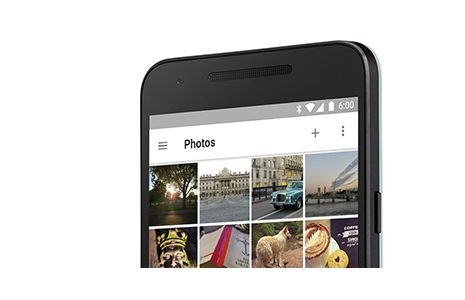

All your photos organised and easy to find

Google Photos is a new way to store, search, and share all your photos and videos. Store photos and videos in high quality. Automatically organized and searchable by the people, places, and things in them, your memories are easy to find and share.

Automatically organized and searchable by the people, places, and things in them, your memories are always easy to find and share.

Simplified security: One Fingertip

Access is quicker and more secure with a fingerprint sensor placed on the back of your device. One touch turns on your phone and unlocks compatible apps.




Now running Android 6.0 (Marshmallow)

Built from the inside out to make the most of the world's most popular OS, with Android 6.0 (Marshmallow) right out of the box and software updates as they are released.



USB TYPE-C™

The USB Type-C charger is reversible, which means no more guessing which way is up. And it's fast—get almost four hours of use after only ten minutes of charging.



Always new. Now running Android 6.0 (Marshmallow).

Built to get the best out of the world's most popular OS, Nexus is the ultimate Android experience. You're always among the first to receive software and security updates. And you'll have the freshest, fastest version—Android 6.0 Marshmallow—working for you right out of the box.

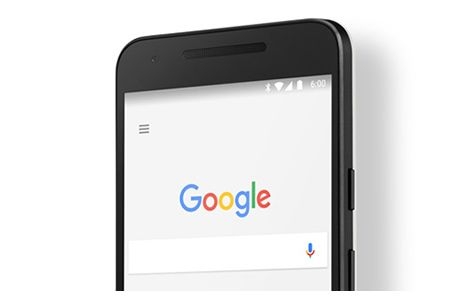

The best of Google in the palm of your hand

Your favourite Google apps come pre-installed. Search, Maps, Chrome, youTube, Photos, Gmail, Drive and so much more - it's all there waiting for you.



Technical Specifications

Nexus 5X Charcoal Black - 16GB

Nexus 5X Smartphone H791 - Charcoal Black - 16GB

General

Rear Camera: 12 MP
Front Camera: 5 MP
Display: 5.2" Full HD
CPU: 2.0GHz Hexa-Core
Battery Capacity (mAh): 2700mAh
Memory - Internal: 16GB
Dimensions (L x W x H ) mm: 147.0 x 72.6 x 7.9 mm
Form Factor: Full Touch Screen
Colour: Charcoal Black - 16GB
Operating System: Android 6.0 (Marshmallow)
Weight: 136g

Basic Specification

Wi-Fi Capabilities (a, b, g, n, ac): Yes
Battery - talk and Standby times: 400min / 400 hours
GPS / A-GPS: Yes
Audio formats: AAC, AAC+, eAAC+, AMR-NB, AMR-WB, FLAC, MP3, MIDI, Vorbis, PCM, OPUS
Video formats: H.263,H.264,Mpeg4, HEVC, VP8, VP9
SMS: Yes
MMS: Yes
SIM card type: Nano
# SIM slots:1
Rear camera flash: Yes
3.5mm Audio Jack: Yes
Speakerphone: Yes

Operating Frequency

2G: 850/900/1800/1900
3G: 850/900/1700/1900/2100
4G: 700, 850, 900, 1800, 2100, 2600

Connectivity

Bluetooth: Yes
USB: Yes
WiFi Hotspot: Yes
NFC: Yes

In Box

Battery: Yes
A/C Charger: Yes

LG Nexus 5X Handset - Charcoal Black32GB Version

LG Nexus 5X Handset - Charcoal Black

  • 32GB Version

Part Number: 401582

Nexus 5X Charcoal Black 32GB



  • 5.2" Full HD Display and 12MP Camera
  • Android 6.0 (Marshmallow) OS
  • 2.0GHz Hexa-core Qualcomm Snapdragon 808 Processor
  • Fingerprint sensor for easy access



Features

Introducing Nexus 5X: The Ultimate All Rounder

Introducing the Nexus 5X smartphone. Featuring a 5.2" full HD display, 12MP camera, 2.0GHz hexa-core Qualcomm Snapdragon 808 Processor and Android 6.0 (Marshmallow), there is little confusion as to why the Nexus 5X has been dubbed "The Ultimate All Rounder".

Introducing Nexus 5X



Capturing the soul of the Nexus family, Nexus 5X offers a 5.2 inch display, top line performance and a long lasting battery¹ in a compact, lightweight device that's ready to take on the day with you.



Hitting the sweet spot

Beneath the 5.2 inch display is a hexa-core Qualcomm Snapdragon 808 processor, for world class speed at an affordable price.




A 12 Megapixel camera

The 12 Megapixel camera and the fast Google Camera app helps you take stunning pictures and the smart Google Photos app will keep your memories at you fingertips.



All your photos organised and easy to find

Google Photos is a new way to store, search, and share all your photos and videos. Store photos and videos in high quality. Automatically organized and searchable by the people, places, and things in them, your memories are easy to find and share.

Automatically organized and searchable by the people, places, and things in them, your memories are always easy to find and share.



Simplified security: One Fingertip

Access is quicker and more secure with a fingerprint sensor placed on the back of your device. One touch turns on your phone and unlocks compatible apps.



Now running Android 6.0 (Marshmallow)

Built from the inside out to make the most of the world's most popular OS, with Android 6.0 (Marshmallow) right out of the box and software updates as they are released.

USB TYPE-C™

The USB Type-C charger is reversible, which means no more guessing which way is up. And it's fast—get almost four hours of use after only ten minutes of charging.





Always new. Now running Android 6.0 (Marshmallow).

Built to get the best out of the world's most popular OS, Nexus is the ultimate Android experience. You're always among the first to receive software and security updates. And you'll have the freshest, fastest version—Android 6.0 Marshmallow—working for you right out of the box.



The best of Google in the palm of your hand

Your favourite Google apps come pre-installed. Search, Maps, Chrome, youTube, Photos, Gmail, Drive and so much more - it's all there waiting for you.



Specifications

General

Rear Camera: 12 MP
Front Camera: 5 MP
Display: 5.2" Full HD
CPU: 2.0GHz Hexa-Core
Battery Capacity (mAh): 2700mAh
Memory - Internal: 32GB
Dimensions (L x W x H ) mm: 147.0 x 72.6 x 7.9 mm
Form Factor: Full Touch Screen
Colour: Charcoal Black - 32GB
Operating System: Android 6.0 (Marshmallow)
Weight: 136g

Basic Specification

Wi-Fi Capabilities (a, b, g, n, ac): Yes
Battery - talk and Standby times: 400min / 400 hours
GPS / A-GPS: Yes
Audio formats: AAC, AAC+, eAAC+, AMR-NB, AMR-WB, FLAC, MP3, MIDI, Vorbis, PCM, OPUS
Video formats: H.263,H.264,Mpeg4, HEVC, VP8, VP9
SMS: Yes
MMS: Yes
SIM card type: Nano
# SIM slots: 1
Rear camera flash: Yes
3.5mm Audio Jack: Yes
Speakerphone: Yes

Operating Frequency

2G: 850/900/1800/1900
3G: 850/900/1700/1900/2100
4G: 700, 850, 900, 1800, 2100, 2600

Connectivity

Bluetooth: Yes
USB: Yes
WiFi Hotspot: Yes
NFC: Yes

In Box

Battery: Yes
A/C Charger: Yes

Logitech G303 Daedalus Apex Performance Edition Gaming Mouse - BlackHigh Performance, Advanced Optical Sensor With Delta Zero Technology, Programmable RGB Lighting, Six Programmable Buttons

Logitech G303 Daedalus Apex Performance Edition Gaming Mouse - Black

  • High Performance, Advanced Optical Sensor With Delta Zero Technology, Programmable RGB Lighting, Six Programmable Buttons

Part Number: 401581

G303


Daedalus Apex

RGB Performance Edition Gaming Mouse

Features

Advanced Optical Sensor with Delta Zero technology

Superior tracking for precision movements

At the core of G303 is our best optical sensor, the PMW3366. Built with Delta Zero™ technology, it delivers exceptional tracking while minimizing speed-related accuracy variance, commonly known as “mouse acceleration”, allowing for quicker reactions and more consistent targeting. For maximum responsiveness, the PMW3366 sensor has zero smoothing or filtering across the entire DPI range—even at high sensitivity. The sensor can be tuned, optimizing sensor parameters, not just LED intensity, to match the properties of your mouse surface for maximum high speed performance and lower lift-off distance.





Designed for the Performance Enthusiast

You asked, we listened

Logitech G took customer feedback from the community and used it to build a gaming mouse that meets the special performance needs of enthusiast gamers. We combined our highest-performing components, including the PMW3366 optical sensor, and put them in a lightweight, compact body.



Metal Spring Button Tensioning System

Rapid, reliable clicking

The G303 Daedalus Apex™ metal spring button tensioning system keeps left and right buttons precisely positioned to reduce pre-travel and backlash, delivering optimal response and feel. In-game actions remain fast and accurate.



Programmable RGB Lighting

Customize from 16.8M colors

Bring your mouse to life with “breathing” light patterns or set your lighting to sleep when you aren’t using your system. Choose lighting color and brightness to match your style, system or environment. Daedalus Apex lighting can be customized from a palette of up to 16.8 million colors.



Durable and Lightweight

A gaming mouse that lasts as long as you do

Designed for comfort and durability, Daedalus Apex performance gaming mouse is rigorously tested to make sure it can stand up to even the longest gaming sessions. The left and right buttons have been successfully tested for 20 million clicks, the equivalent of a pro gamer training 10 hours a day, every day, for two years. Sturdy yet lightweight materials and flexible braided cable ensure your gaming sessions are comfortable from start to finish



Surface-tuned Performance

Adapts to your environment

Fine tune the optical sensor in Daedalus Apex to your playing surface to reduce lift-off distance and enable better accuracy, precision and responsiveness.*.*

G303 Daedalus Apex is pre-tuned for Logitech gaming mouse pads, G240 and G440. Add a mouse pad for extreme accuracy.



Six Programmable Buttons

Customized to your style of gameplay

Achieve great results with the default configuration straight out of the box. Or, set up one-button triggers for actions that typically require digging into menus. Put push-to-talk communications in easier reach. Temporarily down-shift DPI for sniping. Reassign any game command or multi-command macro to any one of six programmable buttons with Logitech Gaming Software.



Onboard Memory Profiles

Take your settings with you

Program up to three profiles for individual players or games, including keyboard macros, lighting, report rate and DPI settings. Take your settings to other PCs with no software required.

On-the-Fly DPI Switching

Precision for every situation.

Make the right moves in any game situation. Switch through up to five DPI settings, from pixel-precise targeting, 200 DPI, to lightning-fast maneuvers, up to 12,000 DPI, in 50 DPI increments with zero pixel rounding.



Specifications

Part Number

910-004384

Warranty Information

2-Year Limited Hardware Warranty

System Requirements

Windows® 10, Windows® 8, Windows 8.1, Windows 7 or Windows Vista®
Powered USB port
Internet connection and 150MB hard drive space (for optional software download)

Package Contents

Mouse
User documentation

Technical Specifications

Most accurate sensor on the market
32-bit microcontroller
3 onboard profiles
Primary buttons rated to 20 million clicks
Mechanical microswitches
Braided cable with hook and loop cable tie
6 programmable buttons
On-the-fly DPI Switching
Metal spring left/right button tensioning system
1 millisecond report
High-speed clicking

Tracking
Resolution: 200 – 12,000 dpi
Max. acceleration: >40G*
Max. speed: >300 ips*

* Tested on Logitech G240 Gaming Mouse Pad

Responsiveness
USB data format: 16 bits/axis
USB report rate: 1000 Hz (1ms)
 Microprocessor: 32-bit ARM

Glide
Dynamic coefficient of friction:* 0.11 µ (k)
Static coefficient of friction:* 0.17 µ (s)


*Tested on wood-veneer desktop.

Durability
Buttons (Left / Right): 20 million clicks
 Feet: 250 kilometers

Physical specifications
Height:  115 mm (4.53 in)
Width:  65 mm (2.56 in)
Depth:  37 mm (1.46 in)
Weight:  127 g, mouse plus cable (4.48 oz)
Weight:  87 g, mouse only (3.07 oz)

HP P4X79PA Envy 13-D005TU Notebook

  • Core i5-6200U(2.30GHz, 2.80GHz Turbo), 13.3"LED FHD, 4GB-RAM, WLAN, BT, Windows 10

Part Number: 401580
ENVY 13-D005TU 13.3 LED FHD INTEL CORE I5-6200U 4GB WLAN I 7265 AC 2X2 +BT 4.0 WW SILVER WIN 10
CoolerMaster 600W B600 V2 PSU - ATX 12V v2.31, 120mm Fan, 80 PLUS EU 230V Certified6x SATA, 2x PCI-E 6+2-Pin

CoolerMaster 600W B600 V2 PSU - ATX 12V v2.31, 120mm Fan, 80 PLUS EU 230V Certified

  • 6x SATA, 2x PCI-E 6+2-Pin

Part Number: 401579
B600 ver.2

Based on the new regulations in EU from 1st of July, the very successful B-series has been revised. A completely new circuit layout and new components make it compliant to the regulations. The biggest difference for the new B-series is that it now only has a single rail +12V DC out with a max current of 46A. This now means that all Cooler Master power supplies makes use of a single rail instead of multi rail.




Overview

  • 80 plus EU 230V certified
  • Silent 120mm HDB fan with intelligent fan-speed control, to enhance longevity and help reduce noise in power unit.
  • Green power design to meet ErP 2013 Lot6 & all new CE energy saving regulation
  • Powerful +12V rail for strong resistance to any overloading
  • Fully protection ( OCP/OVP/SCP/OPP ) with build-in Over Temperature Protection ( OTP )



80PLUS & Eco PSU Certified

80Plus EU 230V only certified power supply

Percent Loading

20%

50%

100%

Efficiency

82%

85%

82%

Erp 2013 compliance meet standard of new CE regulation & ecoPSU certified

PRODUCT HIGHLIGHT

SUPER SILENT & LONG LIFESPAN HDB FAN

Hydro Dynamic Bearing fan runs more smoothly with no friction, make it quietly & durability

HONEYCOMB VENT

Honeycomb vents design to keep the power supply cool

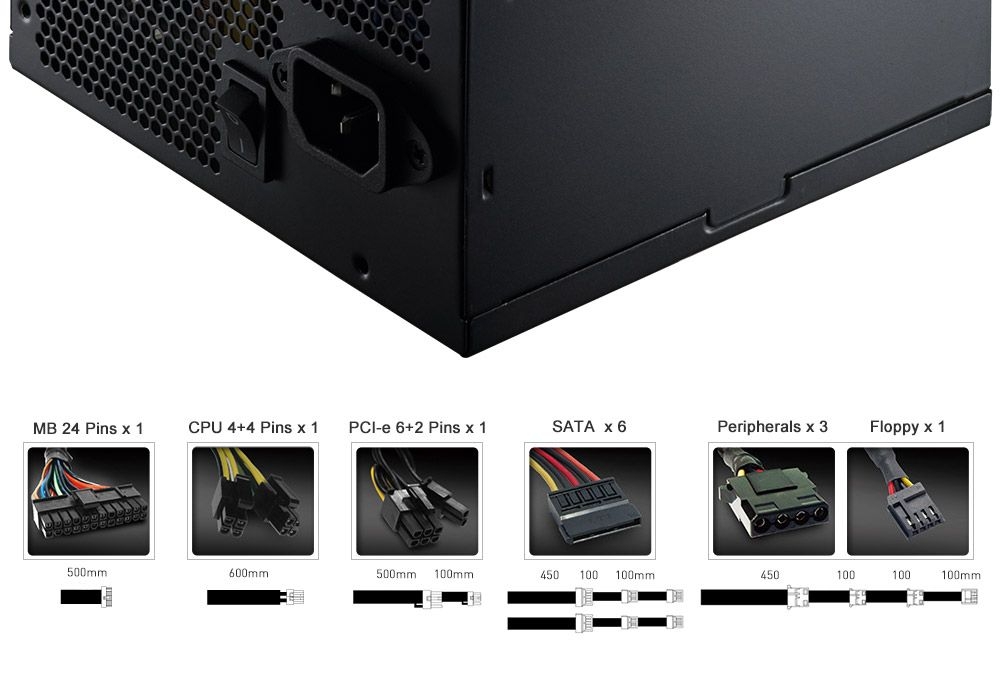

Connectors


 Output Rating

AC INPUT 200-240Vac    5A 47-63Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vsb
20A 20A 46A 0.3A 2.5A
MAX. POWER 120W 552W 3.6W 12.5W
600W

Specifications

Model RS-600-ACAB-B1
Type Intel Form Factor ATX 12V V2.31
Dimension 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch (W x L x H)
PFC Active PFC (>0.9)
Input Voltage 230V only
Input Range 200-240Vac
Input Current [email protected]
Input Frequency Range 47-63Hz
Fan Type Silent 120mm HDB fan
Power Good Signal 100-500ms
Hold Up Time >13ms
Efficiency >85% @ Typical Load
MTBF >100,000 hrs
Protection OCP / OVP / OPP / OTP / SCP
Operation Temperature 0~40ºC
Regulatory CE / TUV / EAC
Connector M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
PCI-e 6+2 Pin x 2
SATA x 6
Peripheral 4 Pin x 3
Floppy 4 Pin x 1


Microsoft Exchange Server Standard 2016 - Single, OLP, 1 Licences, No Level

Microsoft Exchange Server Standard 2016 - Single, OLP, 1 Licences, No Level

Part Number: 401578

Microsoft Exchange Server 2016 - Standard

Exchange Server 2016 lets you accomplish more with rich Outlook experiences on phones, tablets, desktop, and the Web. Integration with Outlook, SharePoint, and OneDrive for Business helps you experience collaboration better when receiving, editing, and sharing documents without ever having to leave Outlook. New search capabilities deliver faster performance and more accurate results. Inbox enhancements in Outlook 2016 and Outlook on the web, such as inline previews for URLs and inline video, help you stay focused and productive. A simplified architecture brings new levels of reliability with automated repair and faster recovery. Expanded data loss prevention, easier auditing, and faster and more reliable eDiscovery help your organization comply with legal requirements.

Supported Operating System

Windows 8.1, Windows Server 2012, Windows Server 2012 R2


Addonics HU525HSD 1;5 2.5

Addonics HU525HSD 1;5 2.5" HDD/SSD Duplicator - Copy Up To Five 2.5" SATA Hard Drives Or SSD, LCD Display With Functional Control Panel, Sturdy Metal Frame Construction

Part Number: 401577

1:5 2.5" HDD/SSD Duplicator

Overview

About the 2.5" HDD/SSD Duplicator Series

The Addonics family of 2.5" duplicator is an economical hard drive duplicator solution with choice of models for copying from three up to as many as eleven 2.5" SATA hard drive or SSD. There is no computer needed or complex software to operate. Just open the doors on the drive bays, load your master hard drive to the source bay and other hard drives of capacity equal or larger into the target bays, lock the drive doors and push the start button to start the copying process.

About This Model

The 1:5 2.5" HDD/SSD duplicator is built in a compact, light weight and sturdy aluminum chasis for easy transportation. Integrated with Snap-In Double Drive for easy loading or removal of the drive from the system without any special tool, this duplicator offer choice for high speed model that maintain fast copying performance in duplicating from 1 to 5 targets. Using optional Addonics family of 2.5" Flash drive kit, this duplicator can also be used for making copies of other flash media such as M2, mSATA, CFast, CF, slim SATA and 1.8" HDD/SSD.




  • Copy up to five 2.5" SATA hard drives or SSD
  • Great for cloning hard drives, making back up hard drives, system upgrade and data distribution
  • Choice of High Performance model
  • Support any file system
  • Support any 2.5" SATA hard drive or SSD with thickness up to  9.5 mm
  • Can also be used for duplicating other flash media - M2, mSATA, CFast, CF, slim SATA and 1.8" HDD/SSD, using optional Addonics family of 2.5" Flash drive kit
  • Maximum drive size >3TB
  • Typical copying speed*
 Copying Speed
model 1 drive 3 drive 4 drives and more
HU525HSD ~ 105 MB/sec ~ 70 MB/sec ~ 50 MB/sec
HU525HSDHS ~ 105 MB/sec ~87 MB/sec ~87 MB/sec
  • Source and Destination drives are added or removed like tape cartridges from each drive bay with no special tool required
  • Can duplicate M2 (NGFF), mSATA, CFast or CF flash card using optional Addonics 2.5" Flash drive
  • Drive sanitization:
    • SECURE ERASE - HDD duplicator sends a WIPE command to the hard drive. This command fills 00 string to entire HDD
    • OVERWRITE - One pass, 3 passes and 7 passes 5220.22-M. The duplicator writes a string of pattern over the entire disk one time, three times or seven times. 5220.22-M is the DoD standard for drive sanitization
  • LCM control module provides a rich set of robust advanced configuration options (diagram of duplicator features can be here Full LCD console feature list)
  • Operate as a stand alone appliance. No computer or software needed
The speed here is for reference only. The speed were measured basing on using 2.5" SATA III 1TB hard drive for both source and target. The transfer rate varies depending on the speed of the source and destination drive


Components that make up the main unit

Model: HU525HSD
- Storage Tower IV (ST4), 1:5 HDD Duplicator subsystem (HDU5SAS), three (3) Snap-In Double Drives (AE25SNAP2SA)

Model: HU525HSDHS - Storage Tower IV (ST4), 1:5 HDD High Speed Duplicator subsystem (HDU5SASHS), three (3) Snap-In Double Drives (AE25SNAP2SA)

Included accessories: Power cord and user guide

Specifications

  • Writing mode : Sector to Sector
  • Typical copying speed
 Copying Speed
model 1 drive 3 drive 4 drives and more
HU525HSD ~ 105 MB/sec ~ 70 MB/sec ~ 50 MB/sec
HU525HSDHS ~ 105 MB/sec ~87 MB/sec ~87 MB/sec
  • Sturdy metal frame construction
  • Drives are added or removed just like VHS cassette without tools
  • LCD display with functional control panel
  • Well ventilated for efficient air flow.
  • Low noise high CFM ball bearing cooling fan
  • Integrated universal AC 110/240V power supply
  • Dimension: 7.5 x 16 x 10.4 in. (190 x 406 x 264 mm)
  • Weight: ~ 12.72lb (5.77kg)
  • Operating temperature and humidity: 0 - 50 degree C, 15% - 90% RH
  • Storage temperature and humidity: (-20) - (65) degree C, 0% - 95% RH non-condensing



CoolerMaster 550W V550 Series - ATX 12V v2.31, 120mm Fan, Semi-Modular Cable, 80 PLUS Gold Certified6x SATA, 2x PCI-E 6+2-Pin

CoolerMaster 550W V550 Series - ATX 12V v2.31, 120mm Fan, Semi-Modular Cable, 80 PLUS Gold Certified

  • 6x SATA, 2x PCI-E 6+2-Pin

Part Number: 401576

V550 Semi-Modular

  • 100% Japanese capacitors
  • Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
  • Powerful Single +12V rail for superior load balancing and VGA compatibility
  • Modular cable designs for better cable management
  • Japanese capacitor ensures an extended lifetime and excellent holdup times, in case of power fluctuation.
  • Custom DC-DC module design offers higher efficiency and voltage stability
  • 80 PLUS Gold certified: up to 92% efficiency @ typical load
  • Reliable 5 year warranty

Overview

PRODUCT HIGHLIGHT

Intelligent 120mm fan

The intelligent 120mm fan speed controller with honey combo mesh increases airflow for better heat dissipation.

Modular Cable System

Only use the cables you need, no unnecessary cable mess! Building a clean and tidy system with excellent airflow has never been this easy and convenient.

Japanese capacitor

It ensures an extended lifetime and excellent hold up times

Unique 3D Circuit Design

It offers high efficiency, improves the heat dissipation and reduces the unnecessary cables which results in much lower crosstalk, signal noise.

Custom DC-DC Module

Our custom 12V to 3.3V and 5V module design offers notably higher efficiency and voltage stability than other designs.

Connectors



 Performance



AC INPUT / DC OUTPUT





CoolerMaster 550W Vanguard PSU - ATX 12V v2.31, 120mm Fan, Full Modular Cable, 80 PLUS Gold Certified6x SATA, 2x PCI-E 6+2-Pin

CoolerMaster 550W Vanguard PSU - ATX 12V v2.31, 120mm Fan, Full Modular Cable, 80 PLUS Gold Certified

  • 6x SATA, 2x PCI-E 6+2-Pin

Part Number: 401575
Cooler Master Vanguard 550W 80+Gold Full Modular

Product Code: CM-PS-RS550-AFBAG1-AU

Unique 3D circuit design offers higher efficiency and improves the heat dissipation
Cooler Master's exclusive Silencio FP fan technology enhances airflow, reduces vibration and provides the best thermal performance
Fully modular, flat cable design for better cable management
100% Japanese capacitors ensures an extended lifetime and minimizes power fluctuations
Compact design 6.8W/inch3 fits perfectly with small form factor systems
80 PLUS Gold certified: up to 92% efficiency on typical load

 Specifications:

ModelRS550-AFBAG1-xx
TypeIntel Form Factor ATX 12V V2.31
Dimensions150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch
Input Voltage100-240Vac
Input RangeFull range
Input Frequency Range47 - 63Hz
PFCActive PFC (>0.9 typical)
Power Good Signal100-500ms
Hold Up Time>16ms
Efficiency90% @ Typical Load
MTBF>100,000 Hours
Fan Type120mm Silecnio FP
Quality CertificatesCE/FCC/UL/TUV/RCM/BSMI/CCC/EAC
ProtectionOVP/UVP/OPP/OTP/OCP/SCP
Connectors20+4 Pin MB x 1
4+4 Pin CPU +12V x 1
6+2 Pin PCI-e x 2
SATA x 6
4Pin Peripheral x 3
4Pin Floppy x 1
EAN Code4719512048252
UPC Code884102027215

D-Link DSL-2790U ADSL2+ Modem/Wireless Router - 802.11n, 4-Port 10/100 LAN, USB, WEP Data Encryption

D-Link DSL-2790U ADSL2+ Modem/Wireless Router - 802.11n, 4-Port 10/100 LAN, USB, WEP Data Encryption

Part Number: 401574
Wireless N300 ADSL2+ Modem Router

DSL-2790U

Ultimate Wireless Connection The DSL-2790U reaches wireless speeds that are almost 6 times faster than 802.11g1. Maximize wireless performance by connecting it to computers equipped with Wireless N interfaces and stay connected from virtually anywhere at home and in the office. The DSL-2790U can also be used with 802.11g and 802.11b wireless networks to enable significantly improved reception. You can even share your mobile Internet connection when on the road by connecting a compatible 3G US.

Overview

Ultimate Wireless Connection

The DSL-2790U reaches wireless speeds that are almost 6 times faster than 802.11g1. Maximize wireless performance by connecting it to computers equipped with Wireless N interfaces and stay connected from virtually anywhere at home and in the office. The DSL-2790U can also be used with 802.11g and 802.11b wireless networks to enable significantly improved reception. You can even share your mobile Internet connection when on the road by connecting a compatible 3G USB adapter.

Secure Connection

The DSL-2790U’s security features prevent unauthorized access to the home and office network from wireless devices or from the Internet. The Wireless N300 ADSL2+ Modem Router provides firewall security, such as Stateful Packet Inspection (SPI) and hacker attack logging. SPI inspects the contents of incoming packets before they are allowed in, while hacker logging helps to protect your network against Denial of Service (DoS) attacks. For Quality of Service (QoS), the router supports priority queues to enable a group of home or office users to experience the benefit of a smooth network connection without worrying about traffic congestion. Additionally, it supports WPA/WPA2 and WEP for flexible user access security and data encryption methods, while a built-in WPS button provides an easy way to establish a secure wireless connection.

Compatibility Assurance

The Wireless N300 ADSL2+ Modem Router is backward compatible with existing 802.11b and 802.11g wireless equipment, ensuring compatibility with a wide range of wireless devices, making your older devices still relevent. In addition, it includes four Ethernet ports for connecting Ethernet-enabled PCs, print servers, and other devices, making the DSL-2790U the logical choice for users wanting a versatile and fast Wi-Fi modem router

Features

Temperature

Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 65 °C (-4 to 149 °F)

Dimensions

68 x 42 x 51 mm

Antennas

Two detachable 5 dBi antennas

Weight

113.4 grams

Power Input

Through 1 A external power adapter

Power

Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V DC, 1 A

Specifications

Device Interfaces

RJ-11 ADSL port
4 RJ-45 10/100BASE-TX Ethernet ports with auto MDI/MDIX
Built-in 802.11n wireless LAN
Factory reset button
WPS button
Wireless on/off switch (optional)
Power on/off switch
USB host 2.0

Router Features

NAT & NAPT
DHCP server/client/relay
Static Routing, RIP v.1, v.2
Universal Plug and Play (UPnP) compliant
SNTP, DNS proxy and IGMP proxy
Supports IPv6
Dynamic Domain Name System (DDNS)
Virtual server

Device Configuration/Management

Installation wizard (optional)
Web-based GUI for configuration, firmware upgrade
Code lock to prevent improper firmware upgrade
Telnet
Syslog monitoring
TR-069 Client (optional)

Security

PVC/VLAN port mapping (bridge mode) 64/128 bits
Parental control (URL blocking, scheduling)
WEP data encryption
DoS attacks prevention
Packet filtering (IP/ICMP/TCP/UDP)
WPA/WPA2 (Wi-Fi Protected Access) security
MAC address-based access control
WPS
Built-in NAT firewall
Stateful Packet Inspection (SPI)

Status LEDs

Power
LAN (1 to 4)
WLAN
WPS
USB
DSL
Internet

Gigabyte GA-Z170X-Gaming GT (Rev. 1.0) MotherboardLGA1151, Z170, 4xDDR4-3866(O.C), 1xPCI-Ex16 v3.0, 3xPCI-Ex1, 8xSATA-III, 3xSATA-Express, 2xM.2, RAID, 6Chl-HD, USB3.0, DisplayPort, HDMI, ATX

Gigabyte GA-Z170X-Gaming GT (Rev. 1.0) Motherboard

  • LGA1151, Z170, 4xDDR4-3866(O.C), 1xPCI-Ex16 v3.0, 3xPCI-Ex1, 8xSATA-III, 3xSATA-Express, 2xM.2, RAID, 6Chl-HD, USB3.0, DisplayPort, HDMI, ATX

Part Number: 401572
GA-Z170X-Gaming GT (rev. 1.0)

Intel® Z170 Chipset


  • Intel® Thunderbolt™ 3 Certified Motherboard
  • Supports 6th Generation Intel® Core™ Processor
  • Dual Channel DDR4, 4 DIMMs
  • Intel® USB 3.1 with USB Type-C™ - The World's Next Universal Connector
  • 3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
  • Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
  • 3 SATA Express Connectors for up to 16Gb/s Data Transfer
  • Integrated HDMI 2.0 support
  • Creative SoundCore™ 3D Gaming Audio
  • Killer™ E2400 and Intel® Gaming Networks
  • LED Trace Path with Multi-Color Choice
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port

Specifications:

CPU
  1. Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel Z170 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3866(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz
    * Support for DisplayPort 1.2 version.
Integrated Graphics Processor+MegaChips MCDP2800 chip:
  1. 1 x HDMI 2.0 port
    Requires the latest Intel Graphic Driver from GIGABYTE website.
Maximum shared memory of 512 MB
Audio
  1. Creative Sound Core 3D chip
  2. 2 x TI Burr Brown OPA2134 operational amplifiers
  3. Support for Sound Blaster Recon3Di
  4. High Definition Audio
  5. 2/5.1-channel
  6. Support for S/PDIF Out
LAN
  1. 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN1)
  2. 1 x Killer E2400 chip (10/100/1000 Mbit) (LAN2)
    * Teaming is not supported.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector.
  4. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for 3-Way/2-Way AMD CrossFire and 2-Way NVIDIA SLI Technology
Storage InterfaceChipset:
  1. 2 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. 3 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-10 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
ASMedia ASM1061 chip:
  1. 2 x SATA 6Gb/s connectors (SATA3 6~7), supporting AHCI mode only
USBChipset:
  1. 5 x USB 3.0/2.0 ports on the back panel
  2. 4 x USB 2.0/1.1 ports (available through the internal USB headers)
Chipset+Renesas USB 3.0 Hub:
  1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
Chipset+Intel Thunderbolt 3 Controller:
  1. 1 x USB Type-C port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x I/O shield audio LED power connector
  4. 2 x M.2 Socket 3 connectors
  5. 3 x SATA Express connectors
  6. 8 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 1 x water cooling fan header (CPU_OPT)
  9. 3 x system fan headers
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 2 x USB 3.0/2.0 headers
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Trusted Platform Module (TPM) header
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x power button
  18. 1 x reset button
  19. 1 x Clear CMOS button
  20. 1 x ECO button
  21. 1 x OC button
  22. 2 x audio gain control switches
  23. 2 x BIOS switches
  24. Voltage Measurement Points
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x USB Type-C port, with USB 3.1 support
  5. 1 x USB 3.1 Type-A port (red)
  6. 5 x USB 3.0/2.0 ports
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS
  4. Support for Q-Flash Plus
    * The USB flash drive must be a USB 2.0 flash drive.
  5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel Smart Response Technology
Operating System
  1. Support for Windows 10/8.1/7*
    * Please download Windows USB Installation Tool to install Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Box Contents
  1. GA-Z170X-Gaming GT motherboard
  2. Motherboard driver disk
  3. User's Manual
  4. Quick Installation Guide
  5. Four SATA cables
  6. I/O Shield
  7. One 2-Way SLI bridge connector
  8. One G Connector
  9. One pack of back I/O dust covers
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.



Gigabyte GA-Z170X-UD5 TH (Rev. 1.0) MotherboardLGA1151, Z170, 4xDDR4-3800(O.C), 1xPCI-Ex16 v3.0, 3xPCI-Ex1, 6xSATA-III, 3xSATA-Express, RAID, GigLAN, 8Chl-HD, USB3.0, HDMI, ThunderBolt, ATX

Gigabyte GA-Z170X-UD5 TH (Rev. 1.0) Motherboard

  • LGA1151, Z170, 4xDDR4-3800(O.C), 1xPCI-Ex16 v3.0, 3xPCI-Ex1, 6xSATA-III, 3xSATA-Express, RAID, GigLAN, 8Chl-HD, USB3.0, HDMI, ThunderBolt, ATX

Part Number: 401571
GA-Z170X-UD5 TH (Rev. 1.0)

Intel® Z170 Chipset

Overview


World's First Intel® Thunderbolt™ 3 Certified Motherboard
Supports 6th Generation Intel® Core™ Processor
Dual Channel DDR4, 4 DIMMs
Thunderbolt™ 3 brings Thunderbolt to USB Type-C™ at speeds up to 40 Gbps
Intel® USB 3.1 with USB Type-C™ support Power Delivery 2.0 for up to 36W
3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
3 SATA Express Connectors for up to 16Gb/s Data Transfer
HDMI 2.0 for [email protected] and 21:9 aspect ratio provide the finest viewing experience
115dB SNR HD Audio with Built-in Rear Audio Amplifier
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Gold Plating for CPU Socket, Memory DIMMs with 2X Copper PCB
APP Center Including EasyTune™ and Cloud Station™ Utilities
GIGABYTE UEFI DualBIOS™ Technology

Next Generation 40 Gb/s Thunderbolt™ 3
Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection

Thunderbolt

Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over two USB Type-C™ connectors on the back I/O of the GIGABYTE Z170X-UD5 TH, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.



Daisy-chain Multiple Devices

Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z170X-UD5 TH is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the Z170X-UD5 TH’s dual USB Type-C™ ports.

Compatibility may vary according to system configuration and device specifications.



GIGABYTE Ultra Durable ™ Motherboards

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.





Extreme Intel® USB 3.1 Controller
USB-IF's World's 1st USB 3.1 Certified Controller
The Intel® USB 3.1 controller utilizes 4 PCIe Gen3 lanes, offering 32 Gb/s of total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.




Connecting the Future - USB Type-C™:

The World's Next Universal Connector
Reversible Dual USB Type-C™ with Thunderbolt™ 3, USB 3.1 and Power Delivery 2.0

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.



HDMI 2.0 for 4K/60P/21:9/HDCP 2.2 Support

HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.





Turbo B-Clock:

Built-in Advanced Performance Tuning IC

Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

2-Way SLI™/3-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.




Industry Leading Ultra Durable™ PCIe Metal Shielding

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.



PCIe Gen3 x4 M.2

With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.



Next Generation SATA Express

SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.






High Definition Audio Design

The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Ambient LED

GIGABYTE motherboards feature LED lighting for the audio guard path, providing a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

The below photos are for reference only.

Intel® GbE LAN with cFosSpeed

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environments.



All New Heat Sink Design

GIGABYTE motherboards feature new heat sink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE motherboards offer cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters.


All New GIGABYTE App Center Including EasyTune™, Cloud Station™ Utilities and More...

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

APP Center

GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.

Easy Tune™

Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Station™

GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.



Long Lifespan Durable Black™ Solid Caps

GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.



2x Copper PCB Design (2 oz Copper PCB)

GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.



15µ Gold Plated CPU Socket Design

GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

GIGABYTE Patented DualBIOS™ (UEFI) Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Specifications

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z170 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3800(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
  1. 2 x Intel® Thunderbolt™ 3 connectors, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of [email protected] Hz
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-9, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.2 version.
Integrated Graphics Processor+MegaChips MCDP2800 chip:
  1. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz
    * Support for HDMI 2.0 version.
  2. ?
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector.
  4. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for 3-Way/2-Way AMD CrossFire™and 2-Way NVIDIA® SLI™ Technology
Storage InterfaceChipset:
  1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. 3 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-9 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
USBChipset+Intel® Thunderbolt™ 3 Controller:
  1. 2 x USB Type-C™ ports on the back panel, with USB 3.1 support
Chipset:
  1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  2. 5 x USB 2.0/1.1 ports (4 ports on the back panel, 1 port available through the internal USB header)
Chipset+GENESYS LOGIC USB 2.0 Hub:
  1. 3 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x PCIe power connector
  4. 3 x SATA Express connectors
  5. 6 x SATA 6Gb/s connectors
  6. 1 x M.2 Socket 3 connector
  7. 1 x CPU fan header
  8. 1 x water cooling fan header (CPU_OPT)
  9. 4 x system fan headers
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x S/PDIF Out header
  13. 2 x USB 3.0/2.0 headers
  14. 2 x USB 2.0/1.1 headers
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x Trusted Platform Module (TPM) header
  18. 1 x power button
  19. 1 x reset button
  20. 1 x Clear CMOS button
  21. Voltage Measurement Points
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x Thunderbolt™3 ports
  3. 4 x USB 3.0/2.0 ports
  4. 4 x USB 2.0/1.1 ports
  5. 1 x HDMI port
  6. 1 x RJ-45 port
  7. 1 x optical S/PDIF Out connector
  8. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. cFosSpeed
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Box Contents
  1. GA-Z170X-UD5 TH motherboard
  2. Motherboard driver disk
  3. User's Manual
  4. Quick Installation Guide
  5. Four SATA cables
  6. I/O Shield
  7. One 2-Way SLI bridge connector
  8. One G Connector
  9. One pack of back I/O dust covers
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.



Thrustmaster T150 Ferrari Force Feedback Racing Wheel - For PC, PS3 & PS4

Thrustmaster T150 Ferrari Force Feedback Racing Wheel - For PC, PS3 & PS4

Part Number: 401569

Thrustmaster T150 Ferrari Force Feedback Racing Wheel For PC, PS3 & PS4

The T150 Ferrari Force Feedback from Thrustmaster definitely delivers the goods when it comes to quality vs price ratio and versatility. This versatility is reflected in the fact that not only does the wheel feature dual official licenses for both PlayStation4 and PlayStation3 and is also compatible with PC, it is also versatile enough to be used and appreciated by gamers of all levels, from beginners to experienced racers and on all types of racing circuits.

The T150 Ferrari Force Feedback has been designed with total versatility in mind. This versatility starts with PlayStation4 certified embedded software (allowing the wheel to be automatically recognised by the PS4 console) and a built in PS4/PS3 sliding switch, making it simple to instantly play on either of the two consoles for which the wheel is officially licensed. In addition, the wheel is also compatible with PC (WindowsXP onwards).

Another aspect of the wheels versatility is Force Feedback designed by Thrustmasters development teams to a high performance standard for demanding racers, while remaining controllable for less experienced gamers as well. The T150 Ferrari Force Feedback is very aggressively priced and is the ideal wheel to accompany gamers through a progressive experience curve, during which time they can upgrade their setup by purchasing a T3PA or T3PA-PRO 3-pedal pedal set or the Thrustmaster TH8A shifter, all of which the wheel is compatible with.

An emphasis has been placed on ergonomic design, with quick and easy access to the 13 action buttons, the D-Pad, the official PS4 button and the 2 large, 100 percent metal wheel mounted sequential paddle shifters (5 inches tall). The wheels grip surfaces are clad in textured rubber for maximum comfort. The included pedal set features an adjustable angle of inclination for each pedal, as well as progressive resistance on the brake pedal.

Details:

Manufacturers name: T150 Ferrari Force Feedback.
Compatibility: PC, PS3 & 4.

Highlights:

Manufactured under official Ferrari license.
1080 Force feedback.
Built in PS3/PS4 slider switch.
Realistic 28cm diameter.
Large, optimised pedal set included.
Mixed belt pulley and gears system.
Wheel mounted sequential paddle shifters.
13 Action buttons.
Brake pedal with progressive resistance.
Thrustmaster T150 Force Feedback Racing Wheel - For PC, PS3 & PS4

Thrustmaster T150 Force Feedback Racing Wheel - For PC, PS3 & PS4

Part Number: 401568

Thrustmaster T150 Force Feedback Racing Wheel For PC, PS3 & PS4

The T150 Force Feedback from Thrustmaster definitely delivers the goods when it comes to quality vs price ratio and versatility. This versatility is reflected in the fact that not only does the wheel feature dual official licenses for both PlayStation4 and PlayStation3 and is also compatible with PC, it is also versatile enough to be used and appreciated by gamers of all levels, from beginners to experienced racers and on all types of racing circuits.

The T150 Force Feedback has been designed with total versatility in mind. This versatility starts with PlayStation4 certified embedded software (allowing the wheel to be automatically recognised by the PS4 console) and a built in PS4/PS3 sliding switch, making it simple to instantly play on either of the two consoles for which the wheel is officially licensed. In addition, the wheel is also compatible with PC (WindowsXP onwards).

Another aspect of the wheels versatility is Force Feedback designed by Thrustmasters development teams to a high performance standard for demanding racers, while remaining controllable for less experienced gamers as well. The T150 Force Feedback is very aggressively priced and is the ideal wheel to accompany gamers through a progressive experience curve, during which time they can upgrade their setup by purchasing a T3PA or T3PA-PRO 3-pedal pedal set or the Thrustmaster TH8A shifter, all of which the wheel is compatible with.

An emphasis has been placed on ergonomic design, with quick and easy access to the 13 action buttons, the D-Pad, the official PS4 button and the 2 large, 100 percent metal wheel mounted sequential paddle shifters (5 inches tall). The wheels grip surfaces are clad in textured rubber for maximum comfort. The included pedal set features an adjustable angle of inclination for each pedal, as well as progressive resistance on the brake pedal.

Details:

Manufacturers name: T150 Force Feedback.
Compatibility: PC, PS3 & 4.

Highlights:

1080 Force feedback. Built in PS3/PS4 slider switch.
Realistic 28cm diameter.
Large, optimised pedal set included.
Mixed belt pulley and gears system.
Wheel mounted sequential paddle shifters.
13 Action buttons.
Brake pedal with progressive resistance.

Thrustmaster 599XX EVO 30 Alcantara Edition Wheel Add On - For T-Series Racing WheelsThrustmaster 599XX EVO 30 Alcantara Edition Wheel Add On - For T-Series Racing WheelsPart Number: 401567
$430.10
Microsoft Lumia 950 Handset - Black

Microsoft Lumia 950 Handset - Black

Part Number: 401566

Microsoft Lumia 950

High-end features, premium design, and the best Windows 10 experience – get the phone that works like your PC and turn an ordinary moment into your biggest accomplishment.

5.2" Quad HD AMOLED, 2560x1440

Qualcomm Snapdragon 808, 1.8GHz Hexa-core

20 MP Sensor, Triple LED natural flash, ZEISS optics

Powered by Windows 10

Discover the benefits of one Windows experience. Office documents and photos are in sync across devices and your favorite apps, music, and videos are in one place with the brand new Windows Store. And with Cortana for Windows 10, you can use your PC to set a location-based reminder that will arrive just in time on your Lumia.1





Built to do great things

Unleash the potential of your digital life with a stunning Quad HD display. Run the most demanding apps without missing a beat and power up quickly with USB-C Fast Charging. With a super-fast processor, a large capacity battery, and wireless charging, the Lumia 950 has the power and performance that you'd expect from a premium smartphone.

Qualcomm® Snapdragon™ 808
The latest generation hexa-core processor.

3000 mAh / USB-C Fast Charging
Get up to 50% capacity with just 30 minutes of charging.

Perfect pictures

With powerful camera features like Rich Capture, a triple LED natural flash, and a 20 MP sensor that has been engineered to virtually eliminate motion blur, you’ll have the confidence to capture anything. Want your pictures in sync across devices? Use the new Photos app to keep your precious memories safe and always available on your phone, PC, and tablet.

Windows Continuum

Connect your Lumia 950 to a Microsoft Display Dock and use it with an external monitor, a keyboard, and a mouse. Office apps and Outlook scale up to create a big screen-optimized work environment that makes you more productive. It’s a PC-like experience that’s powered by your phone.

    Microsoft Lumia 950 XL Handset - White

    Microsoft Lumia 950 XL Handset - White

    Part Number: 401565

    Microsoft Lumia 950 XL

    With a stunning 5.7” Quad HD display and a powerful octa-core processor, it’s the Lumia you’ve been waiting for. Get the phone that works like your PC and push the limits of what’s possible.

    5.7" Quad HD - AMOLED, 2560x1440

    Quadcomm Snapdragon 810, 2.0 GHz octa-core

    20MP Sensor - Triple LED natural flash, ZEISS optics

    One Windows experience

    Apps, games, and music are in one place with the brand new Windows Store and Cortana sends helpful reminders to all your Windows 10 devices. Office apps are easy to use on any screen size and Outlook Mail has the same rich editing tools as Microsoft Word. From Excel to entertainment, Windows 10 keeps your digital life in sync across devices.



    Superior performance

    With an octa-core processor and a 5.7” Quad HD display, it’s the most powerful phone we’ve ever built. With USB-C Fast Charging, an extra-large battery, and wireless charging, it’s pure power that’s easy to charge. Demanding apps, serious games, and the creativity tools you love – get a Lumia 950 XL and discover exciting new ways to do great things.

    Qualcomm® Snapdragon 810™
    The latest generation octa-core processor.

    3340 mAh / USB-C Fast Charging
    Get up to 50% capacity with just 30 minutes of charging.

    Fantastic photos

    The moments you want to remember happen so fast. That’s why we designed a 20 MP sensor that automatically reduces motion blur for sharper, more detailed photos. And with unique features like triple LED natural flash and Rich Capture auto mode, challenging lighting conditions won’t stop you from turning magic moments into precious memories.1

    Windows Continuum

    Connect your Lumia 950 XL to a Microsoft Display Dock and use it with an external monitor, a keyboard, and a mouse. Office apps and Outlook scale up to create a big screen-optimized work environment that makes you more productive. It’s a PC-like experience that’s powered by your phone.

    Specifications

    5.7'' - Display
    20.0 MP  - Main camera sensor
    32 GB - Mass memory
    4G LTE - Network

    Front camera:
    Full HD 5MP wide angle

    Camera Flash Type:
    Natural flash

    Processor type:
    Octa-core 2.0 GHz

    Charging:
    Built-in wireless charging, Fast charging

    Maximum talk time (3G):
    19 h

    Maximum standby time:
    12 days


    Microsoft Lumia 950 XL Handset - Black

    Microsoft Lumia 950 XL Handset - Black

    Part Number: 401564
    Microsoft Lumia 950 XL

    With a stunning 5.7” Quad HD display and a powerful octa-core processor, it’s the Lumia you’ve been waiting for. Get the phone that works like your PC and push the limits of what’s possible.

    5.7" Quad HD - AMOLED, 2560x1440

    Qualcomm Snapdragon 810 - 2.0 GHz octa-cute

    20 MP sensor - Triple LED natural flash, ZEISS optics

    One Windows experience

    Apps, games, and music are in one place with the brand new Windows Store and Cortana sends helpful reminders to all your Windows 10 devices. Office apps are easy to use on any screen size and Outlook Mail has the same rich editing tools as Microsoft Word. From Excel to entertainment, Windows 10 keeps your digital life in sync across devices.

    Superior performance

    With an octa-core processor and a 5.7” Quad HD display, it’s the most powerful phone we’ve ever built. With USB-C Fast Charging, an extra-large battery, and wireless charging, it’s pure power that’s easy to charge. Demanding apps, serious games, and the creativity tools you love – get a Lumia 950 XL and discover exciting new ways to do great things.

    Qualcomm® Snapdragon 810™

    The latest generation octa-core processor.

    3340 mAh / USB-C Fast Charging

    Get up to 50% capacity with just 30 minutes of charging.

    Fantastic photos

    The moments you want to remember happen so fast. That’s why we designed a 20 MP sensor that automatically reduces motion blur for sharper, more detailed photos. And with unique features like triple LED natural flash and Rich Capture auto mode, challenging lighting conditions won’t stop you from turning magic moments into precious memories.

    Windows Continuum

    Connect your Lumia 950 XL to a Microsoft Display Dock and use it with an external monitor, a keyboard, and a mouse. Office apps and Outlook scale up to create a big screen-optimized work environment that makes you more productive. It’s a PC-like experience that’s powered by your phone.




    The availability of particular products, services and features may vary by region. Please check with your local Microsoft dealer for further details. Microsoft account, Wi-Fi or data network connection and additional fees or subscriptions are required for some features. Apps are available from Windows Store. The specifications are subject to change without notice.

    1Pre-installed system software and apps use a significant amount of storage; less internal storage will be available to users. See here for more details.

    2Coverage, service, and 4G/LTE are not available everywhere; actual data speeds may vary. See carrier for coverage details.

    3Requires a compatible charging accessory, which may be sold separately.

    4Volume thickness.

    5The device supports SDXC 3.01 standard compliant cards. 200GB cards currently available.

    6Talk, standby and playback times are estimates only. Actual times are affected by, for example, network conditions, device settings, features being used, battery condition, and temperature. Battery has limited recharge cycles and battery capacity reduces over time. Eventually the battery may need to be replaced.

    7Voice features only available in supported locales and languages.

    8Downloading of maps over-the-air may involve transferring large amounts of data. Your service provider may charge for the data transmission. The availability of products, services and features may vary by region. Please check with your local Microsoft dealer for further details and availability of language options. These specifications are subject to change without notice.

    9Using the FM radio requires a compatible headset that may be sold separately.

    10Some services may be available only via downloading or dependent on the market. Only devices that offer compatible multimedia message or email features can receive and display multimedia messages. Content appearance may vary. Some images and ring tones can not be forwarded.



    AeroCool AERO-500 Midi-Tower Case - NO PSU, Black1xUSB3.0, 2xUSB2.0, HD-Audio, 120mm Fan, Side-Window, ATX

    AeroCool AERO-500 Midi-Tower Case - NO PSU, Black

    • 1xUSB3.0, 2xUSB2.0, HD-Audio, 120mm Fan, Side-Window, ATX

    Part Number: 401563

    Details

    Introducing the new PGS-A series to the Performance Gaming System (PGS) family. A, stands for Airflow, it is one of the most important aspect when it comes to building a PC case.

    The accumulation of heat slowing down PC performance, the clusters of cables cause blockage of smooth airflow inside limited chassis space, these are the concerns that lead us to develop PC cases with improved cable management ability, greater expandability to accommodate more hi-end water cooling systems and fans, and most importantly the exterior design that excel in the concept of transporting air from one end to the other.

    For gamers and PC enthusiasts, they can finally stop worrying the building up of heat and for ordinary users, they can finally get a feel of what a truly good performance of a PC is.

    Features

    • Superb gaming case aimed for great airflow performance.
    • Specially designed top metal cover with extended depth to easily install 240mm water cooling system.
    • Bay covers are designed with a simple flip mechanism for easy removal of bay cover without removing the front panel.
    • Support hi-end graphic cards up to 374mm.
    • Supports max. CPU cooler height of 155mm.
    • Supports max. PSU length of 180mm.
    • Magnetic metal mesh sheet on top panel is easy to remove for cleaning and adds style to the chassis.
    • Removable PSU dust filter for easy cleaning.
    • Supports up to 4x3.5" HDD and 2x2.5" HDD/SSD.
    • 1 x USB3.0 + 2 x USB2.0 / HD Audio + Mic.


    Specifications

    • Case Type: Middle Tower
    • Material: 0.5mm
    • Motherboards: ATX/Micro ATX / Mini ITX
    • Chassis Dimensions: 185 x 453.8 x 400.7mm (W x H x D)
    • Case Dimensions: 203 x 486.5 x 439.5mm (W x H x D, overall)
    • Drive Bays:
      • 5.25" Drive Bays2 (Exposed)
      • 3.5" Drive Bays4 (Internal)
      • 2.5" Drive Bays2 (Internal)
    • Expansion Slots:7
    • GPU Clearance:374mm
    • I/O Ports:1 x USB3.0 + 2 x USB2.0 + HD Audio & Mic. + fan controller
    • Height limit for CPU coolers:Support Max. Height of 155 mm For CPU Cooler
    • Net Weight:4.6 Kg (G.W 5.7 Kg)
    Cooling System
    • Fan:120 x 120 x 25 mm
    • Rated voltage:DC 12V
    • Operating Voltage Range:10.8~13.2V
    • Starting voltage:6V
    • Power consumption:1.92W+10%Max
    • Rated current:0.12A+10%Max
    • Locked Current:0.14A+10%Max
    • Speed:1200+-10%RPM
    • Air Flow (CFM):32.1CFM
    • Air Pressure:0.64mm-H2O
    • Noise (dBA):23.5dBA
    • MTBF:30000hours



    Deepcool LUCIFER K2 CPU Cooler - Intel LGA2011-V3, 2011, 1366, 1156, 1155, 1151, 1150, 775, AMD FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, 120mm Fan, 1800rpm, 61.93CFM, 32.4dBADeepcool LUCIFER K2 CPU Cooler - Intel LGA2011-V3, 2011, 1366, 1156, 1155, 1151, 1150, 775, AMD FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, 120mm Fan, 1800rpm, 61.93CFM, 32.4dBAPart Number: 401562
    $70.45

    Secure Online Shopping

    We accept the following with No surcharge on VISA, Mastercard and Paypal!
    Techbuy Pty Ltd 2000 - 2020 All rights reserved.
    All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
