Introduction
The GA-MA770T-UD3P introduces revolutionary GIGABYTE Ultra Durable 3 technology on latest AMD socket AM3 platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 770 chipset, the GA-MA770T-UD3P supports new generation of 45nm AMD AM3 Phenom II series processors, integrated DDR3 memory controller, HyperTransport 3.0 technology links and PCI Express 2.0 graphics interface support. With the innovative GIGABYTE Easy Energy Saver technology, the GA-MA770T-UD3P is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. |
 |
 |
|
Supports next generation of 45nm AMD AM3 CPU
This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 PhenomII series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. |
|
 |
|
EC AOD-ACC Support
EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through AMD OverDrive utility further than was previously possible.
* Please apply sufficient cooling to CPU VRM zone when ACC function is enabled.
* Please be noticed that GIGABYTEs product warranty does not cover damages caused by overclocking. |
|
 |
|
AMD OverDrive Support
The AMD OverDrive utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
* For download site of AMD OverDrive, please visit AMD official website for details: https://game.amd.com/us-en/drivers_overdrive.aspx
** The support condition of this utility may vary by models(chipsets). |
|
| |
|
Ultra Durable 3
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTEs Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking. |
|
 |
|
Benefits of 2 oz Copper PCB
- Cooler than traditional motherboards
- Enhanced durability
- Improved energy efficiency
- Greater margins for overclocking
|
|
| |
|

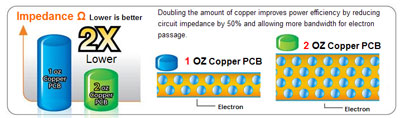

2X Lower Impedance
Doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking. |
|
 |
|
Dual Channel DDR3 1666+ MHz
Delivering native support for DDR3 memory up to 1666MHz, GIGABYTE Ultra Durable 3 motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
* DDR3 1666+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information. |
|
 |
|
Ultra Cooling - Low RDS(on) MOSFET Design
Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging....more. |
|
 |
|
Low Power Loss - Ferrite Core Choke Design
Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency....more. |
|
 |
|
50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games....more.
* 50000 hours of work time is calculated at 85 ambient temperature. |
|
 |
|
GIGABYTE innovative technology- Easy Energy Saver
GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMDs highly efficient 45nm AM3 CPU, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance. |
|
 |
|
EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system. |
|
 |
|
DualBIOS - Patented Dual Hardware BIOS Protection
DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. |
|
 |
|
Windows Vista Premium Logo Certified
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With Vista Premium support, GIGABYTE AMD motherboards offer a fresh and unique desktop experience that will be more informative, intuitive and completely new....more. |
