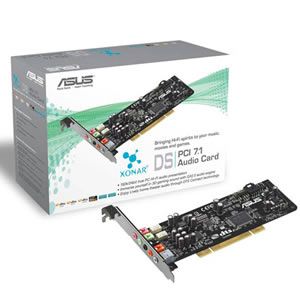

Xonar DS
Overview
Bring the Hi-Fi spirit to your Music, Movie and Games
- 192k/24bit true PC Hi-Fi audio presentation
- Immerse yourself in 3D gaming sound with GX2.5 audio engine
- Enjoy lively home theater audio through DTS Connect technology
Bring the Hi-Fi spirit to your Music, Movie and Games
Immersive Gaming Audio
Feel enemies crawling behind you and hear voices echo in dungeons with Xonar’s immersive GX2.5 audio engine. Enable latest EAX gaming audio, and restores surround gaming in Windows Vista without additional software.
192k/24bit True PC Hi-Fi Enjoyment
Xonar DS’s 192kHz/24bit playback support let you enjoy all music files converted at highest quality without any sample rate downgrade.
Bring the Hi-Fi Theater to your desktop
Consisting of DTS Neo: PC™ and DTS Interactive™ technologies, DTS Connect brings the world’s most welcomed Hi-Fi surround sound to your PC and turns it into a powerful multi-media center and game console.
Surrounded all the time - DTS Neo: PC™
Converts any stereo signals into 7.1 channel – get the most out of your multi-channel speaker setup!
World's most welcomed surround audio at your service - DTS Interactive™
Turns every audio into sensational 7.1 DTS Digital surround via S/PDIF output – feed your AV receiver the best surround sound available!!
The Spirit of Hi-Fi System
Tune up your own sound with ease – Swappable OPamp socket
The design once only seen on hi-end audio equipment is now presented in Xonar DS. Swappable OPamp socket allows you to customize your sound solderlessly and create your favorite listening experience with ease.
Best Flexibility and Connectivity
Auto-detect front-panel
Intel HDA compatible front-panel header automatically switches output from back-panel to front once plugged in.
Specifications:
Audio Performance
Output Signal-to-Noise Ratio (A-Weighted) (Front-out): 107 dB
Input Signal-to-Noise Ratio (A-Weighted): 100 dB
Output THD+N at 1kHz (Front-out): 0.0017 %(-95 dB)
Input THD+N at 1kHz: 0.0017 %(-95 dB)
Frequency Response (-3dB, 24bit/96KHz input): 10 Hz to 48 KHz
Output/Input Full-Scale Voltage :
Bus Compatibility: PCI
Chipset
Audio Processor: ASUS AV66 High-Performance Sound Processor (Max. 192KHz/24bit)
Sample Rate and Resolution
Analog Playback Sample Rate and Resolution : 44.1K/48K/96K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution : 44.1K/48K/96K/192KHz @ 16bit/24bit
S/PDIF Digital Output : 44.1K/48K/96K/192KHz @ 16bit/24bit
ASIO 2 Driver Support : 44.1K/48K/96K/192KHz @ 16bit/24bit
Connectivity
Analog Output
4 x 3.5 mm jack (1/8") (Front out/Side out/Center-Subwoofer out/Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Digital
1 x S/PDIF out (1 x Optical (Toslink)/(combo with rear out))
1 x Front-Panel Header
1 x Aux-in (4-pin header)
Special Features
DTS Technologies : DTS Interactive Encoder/DTS Neo:PC technologies
Smart Volume Normalizer
Xear 3D Virtual Speaker Shifter
Karaoke Functions
FlexBass
10 -band Equalizer
27 Environment Effects
VocalFX
Accessories
S/PDIF optical adaptors x 1
Low -profile Bracket x 1
Dimensions
64.4 x 167.64 mm ( L x W )
