LAN Ports |
- 10/100 Ethernet Integrated Switch
- Auto MDI-MDIX
- Complies with the IEEE802.3, IEEE802.3u, and IEEE802.3x specifications.
- Support Lead Free package.
|
Antenna |
2 dBi * 2 |

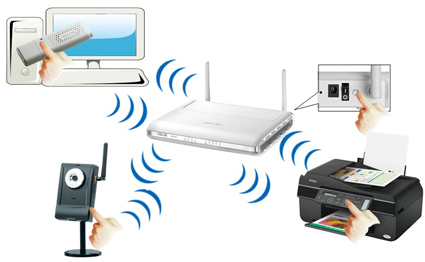

EZ Setup button |
WPS hardware button on the back panel |
Reset Button |
Push for 5 seconds to restore factory setting Push for 1 second to reboot the product
|
Management |

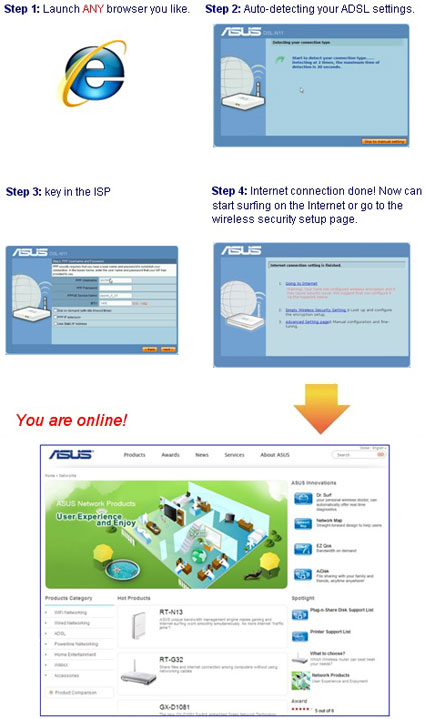

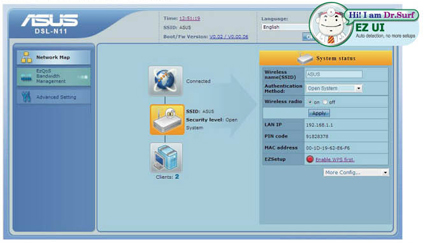

- Web-based GUI configuration
- Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
- UPnP IGD 1.0
- Auto VPI/VCI detection
- Configuration backup and restore
- Diagnostics
- Log & Trace function
|
Firewall |
Built-in NAT firewall |
DC Power Adapter |
Input : 220V(tolerance 207V~254V) Output :15V/0.8A Power consumption : 12W |
Operating Frequency |
2.4 ~ 2.6 GHz |
Data Rate |
802.11g: 54, 48, 36, 24, 18, 12, 9 & 6 Mbps 802.11b: 11, 5.5, 2 & 1 Mbps |
Operation Channel |
11 for North America 13 for Europe 14 for Japan |
Range |
350m~450m |
Encryption |

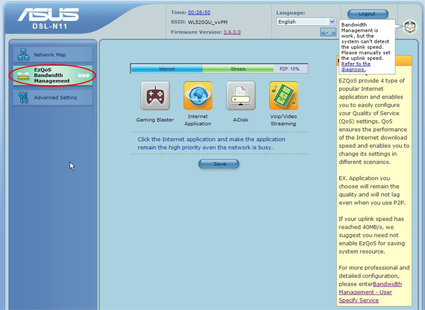

- 802.11e WLAN QoS
- WPS support
- 64/128-bit WEP engine
- MAC address ACL
- AES-CCM/CCMP engine
- WPA-PSK
- WPA2 personal PSK
- WPA2 Mixed Mode PSK
- EAP encapsulation over LANs w/ RADIUS client
|
Authentication |
802.1x RADIUS |
WAN Ports |
1 x RJ11 |
Output Power |
Draft 802.11n: 13.5~16.5 dBm 802.11g: 13.5~16.5 dBm 802.11b: 16.5~18.5 dBm |
Standards |
IEEE802.11b, IEEE802.11g, Draft 802.11n |
Modulation |
Draft 802.11n: PSK/CCK, DBPSK, DQPSK, OFDM etc. 802.11g: PSK/CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK, 16QAM, 64QAM 802.11b: CCK(11&5.5 Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS |
