Addonics DCMR256I Diamond Cipher Mobile Rack Kit - Black
  • 3.5"SATA HDD, 256-bit AES, IDE Interface

IMG 1 of 1
No Longer Available
Part Number:
128171
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
15/10/2009
Details Files Images & Video
All stock codes associated to this product
, DCMR256I
Diamond Cipher
Drive Enclosure

DCSACS256
 Diamond 256-bit Cipher key
Pair of Saturn Cipher key 64-bit
AAENKEY256-2
(256-bit version)
Drive Cradle with IDE Interface

DSABYIB
User Guide

The Diamond Cipher Mobile Rack Kit (MR) features the new generation of eSATA hard drive enclosures with the 256-bit AES hard encryption to ensure absolute data security should the drive get stolen or lost. The crypto engine inside the Diamond Cipher enclosure handles all the encryption and decryption on the fly with no detectable performance degradation on data transfer. Using native eSATA interface, the Diamond Cipher Mobile Rack supports the highest performance possible today through an externally connected hard drive enclosure.

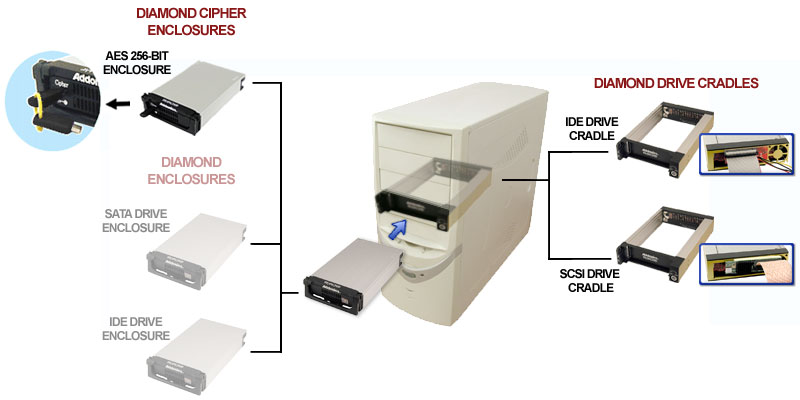

The Diamond Cipher Mobile Rack is designed to enable any SATA hard drive to be use as a removable hard drive via an Diamond IDE or SCSI drive cradle installed inside the standard 5 1/4" drive bay of a computer. Constructed in heavy gauge aluminum with precision finish for smooth operation, the Diamond Cipher Mobile Rack is built to last while at the same time providing excellent heat dissipation for the hard drive.

With size slightly larger than a VCR cassette, the Diamond Cipher drive enclosure comes with both eSATA and SATA connector. The eSATA connector allows the Diamond Cipher drive enclosure to be used as an external eSATA hard drive using a standard eSATA cable and an optional power adapter. The Diamond Cipher drive enclosure can also be attached to the USB port of any computer with an optional USB - eSATA adapter.

The Diamond Cipher drive enclosure comes with built in eSATA port that allows the SATA hard drive to be used as an external eSATA hard drive by connecting with an optional eSATA cable and external power adapter. The SATA direct bridge inside the drive enclosure also isolates the SATA hard drive power and data connectors from the wears and tears incurred in some of the removable SATA hard drive system. 2.5" SATA hard drive can also be installed into the Diamond drive enclosure using the optional 2.5" hard drive mounting bracket.

Product Features
Encryption features (for Diamond Cipher only)
  • Full disk encryption via a hardware-based NIST & CSE certified cryptographic AES engine
  • High performance - Data is encrypted and decrypted on the fly by a certified cryptographic engine inside an ASIC without taking any CPU resources
  • Encryption / Decryption via a hardware key , just like using a regular key to open a door.
    To enable the encryption and access the drive, simply insert the Cipher key into the keyhole of the Diamond Cipher enclosure prior to turn on the power.
  • Simple to deploy with no training required, no software to install and no password to remember
  • Platform independency - There is no software or driver to install to use Addonics encryption products. As a result, it can be deployed in any systems running any OS. This is important in organization with multi platform computing and legacy system
Drive enclosures features
    • eSATA connector for external eSATA connection
    • Can attach to USB port using optional USB - eSATA adapter
    • Regular SATA connector for use as a removable hard drive via the Diamond Drive Cradle installed in a 5 1/4" drive bay
    • Choice of SATA / SATA II hard drive enclosures
    • Hard drive connectors are isolated by a Direct SATA bridge from wear and tear in removable drive application
    • Support large hard drive beyond 137G with single partition.
    • No interface cabling between drive and enclosure for reliable connection.
    • No switch to set between internal and external hard drive application
    • Compact size for easy transportation - slightly larger than a VCR cassette
    • Sturdy aluminum body for use in rough environments
    • Well ventilated design, good heat conduction without fan for quiet operation
    • LED for both power, drive access and Cipher key activation
    • Optional cooling fan available
    • Simple hard drive installation
    • Optional 2.5"/1.8" converter kit
Drive Cradle
    • Mount inside any standard 5 1/4" drive bay
    • Aluminum construction for effective heat dissipation inside any system
    • Choice of IDE or SCSI LVD160 interface
    • 4-pin Molex and 15-pin SATA power connector
    • Drive Cradle keylock to secure Drive Enclosure and power on the drive
    • Drive Cradle LED can be set to come from hard drive or from controller
    • LED for both power and drive access
    • OS support: DOS, Windows 95, NT(SP6), 98SE, Me, 2000, 2003 server, XP, Vista, Mac, Linux and Solaris

Encrpytion type 256-bit AES hardware encryption via a hardware-based NIST & CSE certified cryptographic AES engine
Supported Drive Type
 3.5" SATA 1.5Gbps or 3.0Gbps
Supported Interface for Drive Cradle
  • SATA
  • IDE, USB, or SCSI (with optional converter boards)
Supported interface for Drive Enclosure

eSATA for external connection and SATA for internal connection via Diamond drive cradle

USB with optional eSATA - USB adapter (AAU2ESA)

Support large hard drive (over 137G) : Yes
Power source Internal Drive Cartridge System or Mobile Rack - from PC power supply
Drive Enclosure or External Drive Cartridge System - from 110/220 power adapter
Cooling fan Optional for drive enclosure
LED indicators

For power and drive access on drive enclosure and drive cradle
For Cipher key activation on drive enclosure

Material construction Aluminum
Supported OS
  • USB 2.0 - DOS, Windows 2000, XP, 2003, Vista, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
  • SATA - DOS, Windows NT4(SP6), 98SE, Me, 2000, XP, 2003, Vista, Mac OS X, Linux Kernel 2.4 and above or any OS that supports SATA hard drive
Dimensions

Drive enclosure: 8.19 x 4.57 x 1.46 in. (208 x 116 x 37 mm.)
Drive Cradle: 8.93 x 5.75 x 1.61 in. (227 x 146 x 41 mm.)
Weight 13.6 oz (enclosure without hard drive)
15.2 oz (drive cradle)
File Systems FAT, FAT32, NTFS and HPFS
Operating temperature: 0 C to +50 C
Operating humidity 5% to 90%
Storage temperature -40 C to +85 C
Storage humidity 5% to 95% (non condensing)
Warranty: One Year
RoHS compliant Yes



System Requirements

  • PC/AT or Compatible System
  • One available 5 1/4" drive bay or one of the following ports: SATA, eSATA, USB 2.0 and USB 1.1
  • Pentium or greater
  • Minimum 32 MB RAM
  • 10 MB minimum free hard disk space
  • One of the following operating systems: DOS, Windows NT(SP6), Windows 98SE / 2000, 2003, Me, XP, Vista, Mac OS, Linux, Solaris
