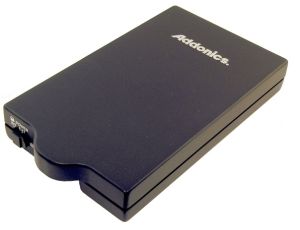

Addonics JCDCSIU64 Jupiter Cipher Drive Cartridge System Kit - Black
  • 2.5"IDE HDD, 64-bit DES, USB2.0

IMG 1 of 1
No Longer Available
Part Number:
128288
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
16/10/2009
Details Files Images & Video
All stock codes associated to this product
, JCDCSIU64
Jupiter Cipher Drive Enclosure

JCIDECSB64
USIB Drive Cradle

AAUSIB25BYB
Addonics Cipher Key
Pair of Saturn Cipher key 64-bit
AAENKEY64-2
(64-bit version)
USB 2.0 USIB Interface Cable
6 feet USB 2.0 USIB interface cable
AAUSBC-309
(6 feet)
Adapter Cable for Pin Header USB port
6' USB 5-pin header adapter cable ( for connecting to USB connectors commonly found on new motherboards)
AAUSB5F
Driver CD & User Guide
Our Jupiter Drive Cartridge System creates a hot swap capable drive cartridge system for 2.5" IDE or SATA hard drives, giving your desktop the full speed and capacity of an internal hard drive along with the convenience of a removable storage device, just like using an ordinary VCR cassette. These drive cartridges implement our new Jupiter shock protection technology featuring rugged anodized aluminum housing and shock absorption drive mounting within the enclosure. With our optional USIB interface cables, the drive enclosures (or the drive cartridge) can also be used as independent external hard drives.

With the choice of Cipher drive enclosures that come with built-in bullet proof hardware encryption technology, sensitive data stored in the hard drive can be kept secure even if the hard drive is lost or stolen. Unlike software encryption, the Addonics hardware solution encrypts and decrypts data with no measurable performance degradation and yet simple to use as there is no software to install or password to remember.
Product features
  • Turn any 2.5" IDE or SATA hard drive into a hot swap remvable hard drive system via USB or SATA connection
  • Drive Cradle
    • Install into any standard 3.5" drive bay
    • Choice of USB 2.0/1.1 or SATA connection
    • OS supports:
      • USB 2.0/1.1 - DOS, Windows 98SE, Me, 2000, XP, 2003, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
      • SATA - DOS, Windows NT4(SP6), 98SE, Me, 2000, XP, 2003, Mac OS X, Linux Kernel 2.4 and above
  • Enclosures
    • Stylish and rugged black anodized aluminum
    • Compact size - fits inside a pocket
    • Light weight
    • Shock proof - up to 3 feet drop damage protection for the hard drive
    • Compatible with any 2.5" IDE hard drive with height of 10 mm or less
    • Support large capacity of 127 GB or higher
    • Easy hard drive installation.
    • Can connect to computer via USB 2.0/1.1, eSATA, Firewire/iLink, CardBus/PCMCIA by attaching appropriate optional Addonics USIB interface cable.
    • Choice of standard or encryption drive enclosure
Encryption features
  • Hardware based 64-bit DES, 128-bit or 192-bit TDES full disk encryption
  • High performance - Data is encrypted and decrypted on the fly by a certified cryptographic engine inside an ASIC without taking any CPU resources
  • Encryption / Decryption via a hardware key, just like using a regular key to open a door.
    To enable the encryption and access the drive, simply insert the Cipher key into the keyhole of the Addonics Cipher keyhole prior to turning on the power.
  • Simple to deploy with no training required, no software to install and no password to remember
  • Platform independency - There is no software or driver to install to use Addonics encryption products. As a result, it can be deployed in any systems running any OS. This is important in organization with multi platform computing and legacy systems.

Specifications

Supported Drive Type
 2.5" IDE or SATA hard drive wtih drive height of 10 mm or less
Supported Interface for Drive Cradle

USB 2.0/1.1, SATA, eSATA

Supported interface for Drive Enclosure USB 2.0/1.1, Firewire/iLink, eSATA or CardBus/PCMCIA using different optional Addonics USIB interface cable
Support large hard drive (over 127G) YES
Power source: Internal Drive Cartridge System - from PC power supply
External Drive Cartridge System - from 110/220 power adapter
Supported OS
  • USB 2.0/1.1 - DOS, Windows 98SE, Me, 2000, XP, 2003, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
  • SATA - DOS, Windows NT4(SP6), 98SE, Me, 2000, XP, 2003, Mac OS X, Linux Kernel 2.4 and above
Dimensions:

Drive enclosure: 5.4 x 3.3 x 0.9 inches (137x84x22 mm)
Drive Cradle: 4.02 in. x 7.15 in. x 1 in.
Weight: 7.2 oz (enclosure without hard drive)
5.6 oz (drive cradle)
File Systems: FAT, FAT32, NTFS and HPFS
Warranty: One Year

System Requirements

  • PC/AT or Compatible System
  • One available 3.5" drive bay for internal installation
  • One of the following ports (for external drive cartridge system only): USB 2.0, USB .1, Firewire, SATA, eSATA
  • 486, Pentium or greater
  • Minimum 32 MB RAM
  • 10 MB minimum free hard disk space
  • One of the following operating systems: DOS, Windows NT(SP6), Windows 98SE / 2000, 2003, Me, XP, Mac OS, Linux, Solaris
