All stock codes associated to this product
, AE25SNAP2SA

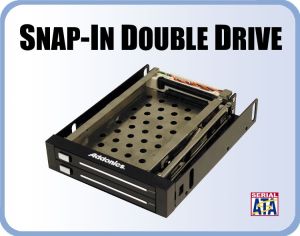

Snap-In Double Drive
Content: Snap-In Double Drive, two 18" internal SATA cables, two 4-pin molex to 15-pin SATA power connector converter cables, User Manual

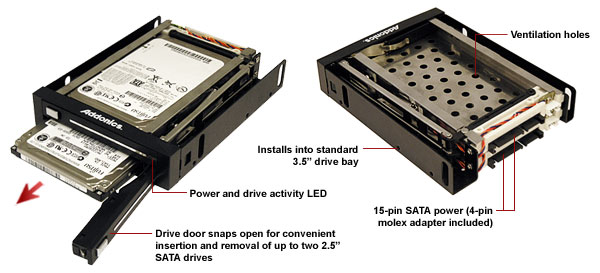

Built on the same reliable and convenient removable mechanism of the Snap-In Mobile Rack, the Addonics Snap-In Double Drive now enables 2.5" SATA hard drives to be use like a tape cartridge in any Desktop, rack mount or industrial PC. Designed to fit inside a standard 3.5" drive bay, the Snap-In Double Drive comes with 2 drive slots to accommodates up to two hard drives. By connecting to a hot swappable SATA controller, the hard drive can be easily added or removed from the system just like an ordinary cassette tape.
Product Features
- Installs into standard 3.5" drive bay
- Easy insertion and removal of hard drive without any tool or mounting screws.
- Two drive slots to accomodate up to two 2.5" SATA 1.5Gbps or SATA 3Gbps hard drives or SSD drives of 9mm - 9.5mm height
- Sturdy steel construction
- Great for RAID application (requires an optional SATA RAID controller)
- LEDs for power and drive activity
- Supports hot swap (when connects to controller with this feature)
- Plug and play
- DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10 and above, Mac OS X and above
Specifications
|
Support drive type
|
2.5" SATA 3Gbps or 1.5Gbps hard drive |
|
Interface Type:
|
SATA 1.5Gbps, SATA 3Gbps |
|
Construction material:
|
metal frame
|
|
LED
|
Power(Blue) and Drive Activity(Orange) LED
|
|
Supported OS
|
DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10 and above, Mac OS X and above
|
|
Power Supply:
|
Requires two 15-pin SATA or 4-pin Molex power connector sources
|
|
Dimensions:
|
134mm (L) 102mm (W) x 24mm (H)
|
|
Weight:
|
282.5g
|
|
Storage Temperature:
|
Range: -30C to +60C
|
|
Operating Temperature:
|
Range: 0C to +55C
|
|
Storage Humidity:
|
5% to 90%
|
|
Operating Humidity:
|
5% to 95%
|
|
Warranty:
|
One Year
|
System Requirements
- PC/AT or Compatible System
- 2 available SATA ports
- one 3.5" drive bay or 5.25" drive bay*
- Pentium II or Greater
- Minimum 64 MB RAM
- One of the Following Operating Systems:
DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10 and above, Mac OS X and above
*Optional 3.5" to 5.25" bay mounting bracket is required for mounting the Snap-In Double Drive inside the 5.25" drive bay
