MSE-750-2 | Tysso MSE-750 Hico/Loco Magstripe Card Encoder - Reader/Writer

PRODUCT DESCRIPTION

MSE-750 is a durable industrial grade Hi-Co/Lo-Co magnetic card reader & writer with a MTBF of 95,000 hours and the durability of one million swipes on the magnetic head! it reads and writes up to three tracks of information with a single swipe. Data is send to an USB or standard RS232 serial interface. This Hi-Co/Lo-co configurable encoder is specially designed for value added resellers (VARs) and system integrators (SIs). It supports a rich set of commands to interoperate with Windows based software programs.

This encoder features MSR206/MSE-630A dual platform compatibility. It interoperates with existing MSR206 or MSE-630A applications flawlessly. Its custom data format support enables secure application development beyond the ISO scope. FEATURES

• MSR206/MSE-630A dual platform compatibility
• Hico/Loco configurable
• 300~4000 Oersted
• Tracks 1&2&3
• ISO 7811-1/2/3/4/5 & ANSI 4.16 1983 compliant
• 5/6/7BPC 210/75BPI on any track
• Raw data format
• Two-in-one connectivity - USB or RS-232
• Manual swipe operation
• Dual status indicators - LEDs and beeper
• Durable ABS plastic housing for heavy duty usage
• Power-on self test

SPECIFICATIONS

Electrical

Operating Voltage: +24V DC (5%) Current Consumption: 350 mA (read) and 600 mA (write)

Durability

Approx. 1,000,000 passes

Physical

Dimensions (mm): 212 x 63 x 63 Weight: 0.58 kg (1.28 lbs)

Environmental

Operating Temperature: 0 to 40 C Storage Temperature: -20 to 70 C Relative Humidity: 20% to 90% (non-condensing)

Recording Density

210 BPI or 75 BPI on any track

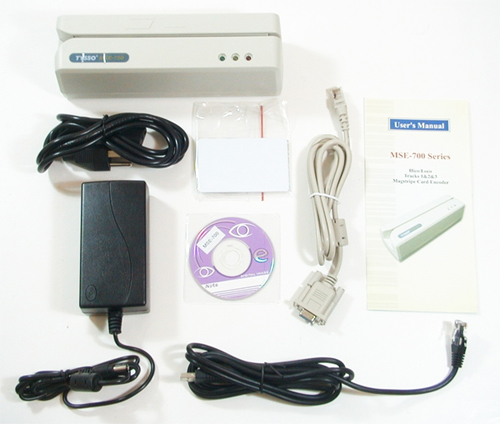

PACKAGE CONTENTS
