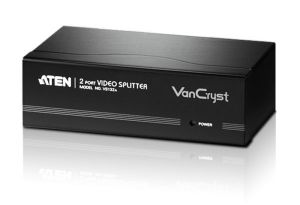

2-Port Video Splitter |
|
 |
The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 65 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA or multisync video signals over long distance without hassle, the VS132A is your best choice.
Applications include:
Financial - the remote display of stock market information
Education - the remote display of lectures and lessons to halls and classrooms
Business - the remote display of addresses to overflow rooms; video conferencing; and demos |
|
| Patent NO. : |
TW 152473 ,US 6119148 ,CN ZL 98218061.6 ,DE 29814640.1 |
 |
|
|
|
 |
Features |
|
|
|
|
One video input to 2 video outputs |
|
Supports up to 450 MHz bandwidth |
|
Cascadable to 3 levels - provides up to 8 video signals |
|
Long distance transmission - up to 65m |
|
Superior video quality - up to 2048 x 1536 |
|
Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors |
|
Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity |
|
All-metal casing |
|
|
|
| |
Package Content |
|
|
|
|
1x VS132A Video Splitter |
|
1x Power Adapter |
|
1x User Guide |
|
|
|
|
Diagram |
|
|
|
|
|
Specification |
|
|
|
| Display Connections |
2 / 8* |
| Connectors |
Video In |
1 x HDB-15 Male (Blue) |
| Video Out |
2 x HDB-15 Female (Blue) |
| Power |
1 x DC Jack (Black) |
| LEDs |
Power |
1 (Green) |
| Video |
Bandwidth |
450 MHz |
| Resolution |
2048 x 1536 @ 60Hz |
| Signal Type |
VGA, XGA, SVGA, UXGA, QXGA, Multisync, DDC2B** |
| Signal Range |
65 m |
| Power Consumption |
DC5V, 0.78W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
0.42 kg |
| Dimensions (L x W x H) |
13.00 x 7.50 x 4.50 cm |
* Via three-level cascade
** Port 1 only |
|
|
|
|
|
