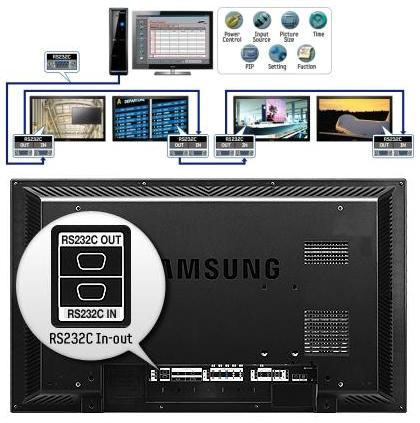

RS232C, a standard of serial communication, is used for the communication between PC and displays. Therefore, A Multiple Display Control (MDC), helping various displays to be easily and simultaneously operated on PC, is possible with RS232C function.
Save money, save space with built-in speakers.
Maximize your impact with a great picture and crisp audio. Your message will be heard loud and clear with built-in speakers. Youll save money when you eliminate the cost of purchasing separate speakers, and youll save valuable space as well.
Choose the right view, landscape or portrait.
This Samsung LFD gives you the flexibility to display your image vertically or horizontallywhatever the situation calls for. With a pivot function that rotates the screen 90degrees and the freedom to display presentations in portrait mode or advertisements in landscape mode, this makes for one versatile monitor.
Specifications
|
Features and specifications are subject to change without prior notification.
|
| Panel |
Diagonal Size |
23" |
| Type |
C-PVA |
| Resolution |
1920 x 1080 |
| Pixel Pitch(mm) |
0.2566 (H) x 0.2566 (V) |
| Active Display Area(mm) |
509.76 x 286.74 |
| Brightness(Typ.) |
300cd/m |
| Contrast Ratio |
3,000:1 |
| Viewing Angle(H/V) |
178/178 |
| Response Time(G-to-G) |
8ms |
| Display Colors |
16.7M |
| Color Gamut |
72% |
| Display |
Dynamic C/R |
5,000:1 |
| H-Scanning Frequency |
30kHz - 81kHz |
| V-Scanning Frequency |
56Hz - 85Hz |
| Maximum Pixel Frequency |
164MHz |
| Connectivity |
Input |
RGB |
Analog D-SUB |
| Video |
HDMI |
| Audio |
Stereo mini Jack |
| Output |
Audio |
Stereo mini Jack |
| External Control |
RS232C (in) |
| Power |
Type |
Internal |
| Power Supply |
AC 100 - 240V - (+ / - 10%), 50/60Hz |
| Power Consumption |
On Mode |
120 watts (max) / 70 watts (typ) |
| Sleep Mode |
Less than 5watts |
| Off Mode |
Less than 1watts |
| Mechanical Spec |

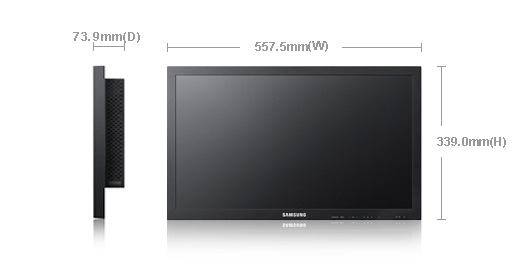

Dimension (mm) |
Set |
557.5 x 339.0 x 73.9 |
| Package |
640 x 418 x 192 |
| Weight (kg) |
Set |
7.0 |
| Package |
8.6 |
| VESA Mount |
100 x 100mm |
| Media Player Option Type |
Internal |
| Operation |
Operating Temperature |
10C - 40C |
| Humidity |
10 - 80% |
| Features |
Key |
Built In Network for Signage |
| Special |
Anti Retention, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (3W + 3W), Plug and Play (DDC2B, DDC / CI), Pivot Display, Button Lock, Windows XP embedded, Magicinfo Pro |
| Certification |
Safety |
UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1 |
| EMC |
FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea) : KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS / NZS3548 (CISPR22) CCC (China) :GB 9254-2008, GB 17625.1-2003 |
| Accessories |
Included |
Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batterie |
| Media Player |
CPU |
Athlon X2 Dual-Core 4450e (2.3GHz) |
| N/B |
AMD RS780 |
| S/B |
AMD SB700 |
| GPU |
AMD RS780 (IGP) |
| FDM/HDD |
HDD 40GB |
| Memory |
DDR2 1GB |
| Ethernet |
Marvell 88E8055 Gigabit LAN |
| Connectivity |
USB |
4EA |
| Output |
D-SUB (RGB OUT) |
| Others |
LAN RJ45 |
