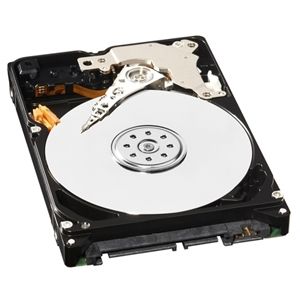

Western Digital 500GB 5400rpm 2.5" Mobile SATA-II 3Gbps HDD w. 8MB Cache (WD5000BPVT) Blue Series

IMG 1 of 5
No Longer Available
Part Number:
140215
(?) Brand:
Western Digital Web Site
Manuf No:
WD5000BPVT
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
9/4/2010
Details Files Images & Video
All stock codes associated to this product
WD5000BPVT, 06WD5000BPVT
Mobile 2.5-inch Hard Drives

WD Blue

Features

Interface:
SATA 6 Gb/s, SATA 3 Gb/s

Capacity:
250 GB - 1 TB

New ultra-slim design.

Accomplishing unprecedented feats in engineering at only 5 mm thin, these drives enable a world of possibilities and applications. (MPCK models)


Low power consumption.

State-of-the-art seeking algorithms and advanced power management features ensure low power consumption and long battery life.

NoTouch Ramp Load technology.

The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

The original.

WD Blue drives are designed and manufactured with the proven technology found in WDs original award-winning desktop and mobile hard drives.


Quiet.

In a notebook drive, silence is golden. WD's exclusive noise reducing technologies yield one of the quietest 2.5-inch hard drives on the market.

Available SATA 6 Gb/s interface.

The SATA 6 Gb/s interface provides greater flexibility for use with the latest operating systems as well as backwards compatibility to legacy systems with SATA 3 Gb/s requirements. (xPVX models only).

WD quality.

Built to the highest standards of quality and reliability, these drives offer the features and capacity ideal for your everyday computing needs.


Upgrading your drive is easy.

WD Acronis True Image, available as a free download on the WD Support site, enables you to copy all your data to a new drive so you don't have to reinstall your operating system to get all the benefits of a new drive.

Compatible.

Our latest generation of 7 mm 2.5-inch mobile drives is designed for thin and light mobile applications, and is also compatible with most standard 9.5 mm bays. (LPVX models).

Did you know...

It's easy to install an internal hard drive in your computer.

The WD advantage.

WD puts our products through extensive Functional Integrity Testing (F.I.T) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.

Specifications:

WD Blue 500 GB SATA Hard Drives ( WD5000BPVT)

Product Specifications
Interface SATA 3 Gb/s
Performance Specifications
Rotational Speed 5,400 RPM (nominal)
Buffer Size 8 MB
Average Latency 5.50 ms (nominal)
Seek Times
Read Seek Time 12.0 ms
Track-To-Track Seek Time 2.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Physical Specifications
Formatted Capacity 500,107 MB
Capacity 500 GB
User Sectors Per Drive 976,773,168
Physical Dimensions
English
Height 0.374 Inches
Depth 3.94 Inches
Width 2.75 Inches
Weight 0.26 Pounds
Metric
Height 9.5 mm
Depth 100.2 mm
Width 69.85 mm
Weight 0.117 kg
Environmental Specifications
Acoustics
Idle Mode 24 dBA (average)
Seek Mode 0 26 dBA (average)
Temperature (English)
Operating 32 F to 140 F
Non-operating -40 F to 149 F
Temperature (Metric)
Operating -0 C to 60 C
Non-operating -40 C to 65 C
Humidity
Operating 8% to 95% Non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating 0.00459 g/Hz (10 to 500 Hz)
Non-operating 0.05102 g/Hz (10 to 500 Hz)
Electrical Specifications
Current Requirements
5 VDC
Read/Write 500 mA
Idle 400 mA
Standby 50 mA
Sleep 20 mA
Power Dissipation
Read/Write 2.50 Watts
Idle 0.85 Watts
Standby 0.25 Watts
Sleep 0.10 Watts
