The Addonics RAID Rack is a family of Rackmount chassis with built-in Port Multipliers and removable drive systems for easy addition and removal of hard drives. Comes bundled with all the connecting cables to attach to your system, these RAID Racks are designed to accommodate as many as twenty SATA hard drives in 3.5" or 2.5" form factor, for a total storage capacity of a whopping 40TB per Rack using today's largest 2TB hard drive! It is an ideal storage solution for video storage, storage farm or any applications that require a high capacity reliable storage system.

You can start your RAID Rack with as little as one hard drive and expand by adding more hard drives as your storage requirement grows. Depending on the model, the 20 hard drives are set up as 4 RAID groups that connect to the system with 4 eSATA cables or a single Multilane cable. There is also choice of models with hot swappable redundant power supply for mission critical applications.



RAID Rack basic specification

  • Rackmount chassis
    • 4U height
    • Constructed in heavy duty cold rolled electroplated steel
    • Choice of standard ATX power supply or Redundant power supply
    • Integrated dual 90x90mm cooling fans (51CFM each)
  • Intelligent Thermal Management Card
    • Supports connection of up to 8 cooling fans
    • Two ambient temperature detect terminals
    • Built-in overheat buzzer
    • LED connectors for fan, temperature, and power
    • On / Off control for each cooling fan and temperature setting (40C, 50C, 60C)

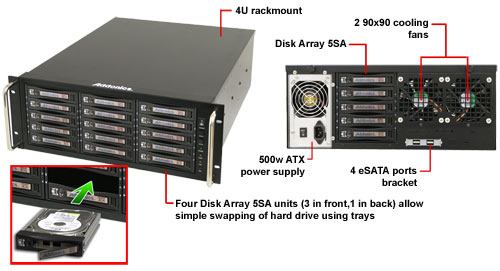

    • Detailed diagram and specifications
  • Front Panel
    • LED displays - Power, HDD Activity, Fan, and Temperature
    • Front accessible switches - Power On / Off, System Reset, Buzzer Reset
    • Three Disk Array 5SA with 15 removable drive trays
  • Rear panel
    • Choice of 4 eSATA connectors or one Multilane connector
    • One Disk Array 5SA with 5 removable drive trays
  • Hardware Port Multiplier (HPM) - model: AD5SAHPMXA), 4 units included.
    • 5 drives are connected to each HPM which connects to the eSATA port or multilane connector mounted on the back panel
    • Each set of 5 drives can be configured as RAID0 (Striping), RAID1 (Mirroring), RAID5 (Parity), RAID10 (Mirrored Striped), JBOD (Concatenation), Clone Mode (N-Way Mirror) using the built-in hardware RAID.
    • Drives can also be set to appear as individual drive (JBOD) when the RAID Rack is attached to a PM compatible controller.
    • RAID configuration can be set via included software utility (for Windows OS only) or onboard jumper
    • Compatible with any OS.

*Note: The RAID RACK must be connected to a SATA controller with hot swap capability in order to add and remove drive without rebooting. Please consult your motherboard or the add-in card manufacturer to determine hot swap support on your SATA controller. All of the Addonics SATA Host Controllers are hot swap capable.

Model #: RR2035AXHES


  • Connect to system via four eSATA ports (connecting cable included).
  • Install up to twenty 3.5" SATA hard drives of any capacity (drives not included). The drives in a group of 5 are connected to 4 PMs inside. Each PM is connected to one of the eSATA port on the back panel.
  • 3.5" SATA Drives are added or removed via a removable drive tray like a tape cartridge
  • Drives can be configured as RAID0 (Striping), RAID1 (Mirroring), RAID5 (Parity), RAID10 (Mirrored Striped), JBOD (Concatenation), Clone Mode (N-Way Mirror) using built-in hardware RAID.
  • OS independent, can be used on any system when all drives are configured as a single RAID volume.
  • For Windows operating systems, RAID set up can be configured with the included software utility or the onboard jumpers..
  • For Linux and Mac operating systems, RAID set up is configured using onboard jumpers.
  • Power supply - standard ATX 500W

Components list made up this model:
Storage Rack DA base unit with ATX power supply (SRDA460S), four Disk Array 5SA (AE5RCS35NSA), four 5X1 HPM-XA System Version (AD5HPMSXA), one 4 eSATA ports bracket (AD4ESASB), four 6-foot eSATA cable (AAESATA200C).

Optional eSATA-USB adapter (AAU2ESA) for USB connection
