• LED Backlight • Ultra-Slim, Ultra-Light • Clear Picture Quality • High Speed Video with 120 Hz

The Samsung EX-Series professional LCD displays (400EX, 400EXn, 460EX, 460EXn, 550EX, 550EXn) are an incredible 1.6" thin. They’re the thinnest, lightest 40", 46" and 55" professional LCD displays from Samsung, thanks to LED backlight technology. LED is also more energy-efficient, consuming 30% - 50% less energy than a similarly sized conventional CCFL backlight display. A 120 Hz panel refresh rate enables sharp scrolling type, while 10,000:1 dynamic contrast ratio delivers deeper, more dramatic dark tones and brighter, more striking light tones.

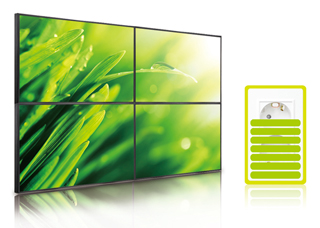

Eco-Friendly Display with LED Backlight

Eco-Friendly Display with LED Backlight

The Samsung EX Series LED LCD displays reduce energy consumption from 30 - 50% (depending on screen size) compared to conventional CCFL backlit LCD displays. Samsung's state-of-the-art LED BLU (Back Light Unit) technology has facilitated this breakthrough in Green Technology Solutions by eliminating mercury, reducing energy consumption and making it easier to recycle.

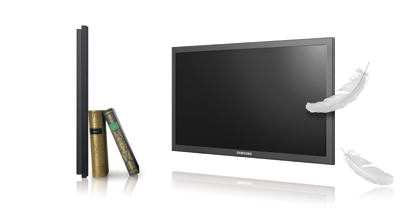

Ultra-Slim, Ultra-Light

Ultra-Slim, Ultra-Light
The ultra-slim, ultra-light design of the Samsung LCD LED commercial displays provide a new era of elegance and efficiency. The 460EX has an ultra-slim style that effortlessly draws your eyes to the screen and its ultra-light design enables easier installation and maintenance. It’s a high-impact display that saves space with style.

High Speed Video with 120 Hz

High Speed Video with 120 Hz
Operating at twice the speed of conventional 60 Hz displays, our 120 Hz displays are ideal for high-speed video and scrolling text, delivering advertising and information with complete clarity and seamless speed.

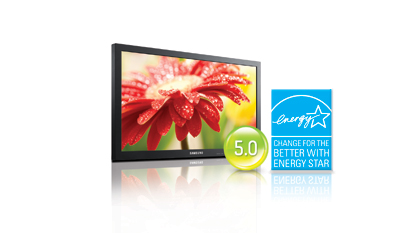

Efficient and Reliable

Efficient and Reliable
Samsung's revolutionary EX Series LED LCD Displays are easier for integrators and customers to install with its 1.6" ultra-slim design and reduced weight. The EX Series is Energy Star 5.0 compliant (excluding embedded PC models) and conforms to the ADA standards for wall mounting.

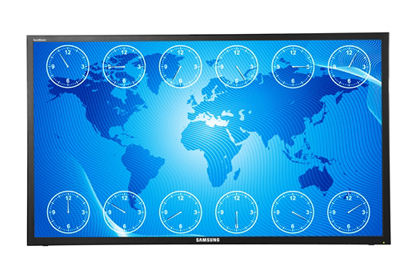

Clear Picture Quality

Clear Picture Quality
Samsung's LED backlight technology provides clear picture quality with high contrast levels and 80% color gamut, providing clear images and improved color saturation.

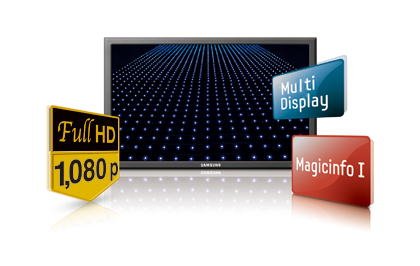

Full HD Images

Full HD Images
The 460EX is designed to be adaptable to any public display usage. Featuring Full HD images, expanded digital connectivity and multi-display control, it allows you to create a digital display environment that is always clear and displaying the highest resolution images.

Total Cost of Ownership

The EX Series LED LCD Displays are ultra-slim and lightweight. Samsung's LED edge-lit backlight technology allows for an ultra-slim 1.6" chasis depth (including embedded PC), providing significant weight savings of 35 - 40% (depending on screen size) compared to conventional CCFL LCD displays.
Panel Diagonal Size 46"
Type 120 Hz LED BLU
Resolution WXGA 1,920 x 1,080 (16:9)
Pixel Pitch(mm) 0.17675 (H) x 0.53025 (V)
Active Display Area(mm) 1,018.08 (H) x 572.67 (V)
Brightness(Typ.) 450 cd/m
Contrast Ratio 5,000:1
Viewing Angle(H/V) 178 / 178
Response Time(G-to-G) 9 ms
Display Colors 10 bit Dithering ~ 1.07 Billion
Color Gamut 80%
Display Dynamic C/R 10,000:1
H-Scanning Frequency 30 kHz ~ 81 kHz
V-Scanning Frequency 56 Hz ~ 85 Hz
Maximum Pixel Frequency 148.5 MHz
Connectivity Input RGB Analog D-SUB
Video HDMI
Audio Stereo mini Jack
Output RGB DVI-D (Loop-out)
Audio Stereo mini Jack
External Control RS232C (in / out), LAN RJ45
Power Type Internal
Power Supply AC 100 ~ 240 V ~ (+ / - 10%), 50 / 60 Hz
Power Consumption On Mode 160 W (max) / 140 W (typ)
Sleep Mode Less than 2 W
Off Mode Less than 1 W
Mechanical Spec Dimension (mm) Set 42.61" x 25.77" x 1.57"
Package 47.6" x 30.35" x 7.83"
Weight (kg) Set 37.48 lbs
Package 45.19 lbs
VESA Mount 400 x 400 mm
Protection Glass Optional
Stand Type Foot Stand (optional)
Operation Operating Temperature 32 F ~ 104 F
Humidity 10 ~ 80 %
Features Special Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C / RJ45 MDC, Built in Speaker (10 W + 10 W), Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Button Lock, Digital Daisy Chain
Certification Safety UL (USA): UL 60950-1CSA (Canada): CSA C22.2 No. 60950-1 TUV (Germany): EN60950-1NEMKO (Norway): EN60950-1 KC (Korea): K60950-1 CCC (China): GB 4943-2001PSB (Singapore): IEC60950-1GOST (Russia): IEC60950-1, EN55022SIQ (Slovenia): IEC60950-1, EN55022PCBC (Poland): IEC60590-1, EN55022NOM (Mexico): NOM-019-SCFI-1993IRAM (Argentina): IEC60950-1SASO (Saudi Arabia): IEC60950-1
EMC FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC(China): GB 9254-2008, GB 17625.1-2003
Environment ENERGY STAR 5.0 (USA)
Accessories Included Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries
Optional Mount WMN4270SWMN1000B (Ultra Slim type)
Specialty CML500D (ceiling mount), STN-520WE (welcome Board)
Features and specifications are subject to change without prior notification.
