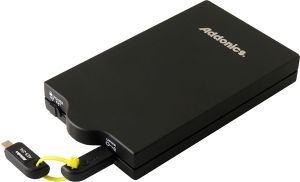

Addonics RCED256EU3 HDD Enclosure - Black
  • 1x 2.5" SATA HDD, AES 256-bit Cipher ExDrive USB3.0, eSATA

IMG 1 of 6
No Longer Available
Part Number:
150484
(?) Brand:
Addonics Web Site
Manuf No:
RCED256EU3
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
17/8/2010
Details Files Images & Video
All stock codes associated to this product
RCED256EU3
Ruby Drive Enclosure

RCSACS256
 Ruby 256-bit Cipher key
Pair of Saturn Cipher key 64-bit
AAENKEY256-2
(256-bit version)
power adapter

AAPAC5V
eSATA - eSATA data cable 6 ft. click for large image
AAESATA200C
USB 3.0 to eSATAp Adapter
click for large image
ADU3ESA
USB power cable

AAUSBPCP24

Ruby Cipher ExDrive - introducing new AES 256-bit hardware encryption

The Ruby Cipher ExDrive Kit (RCED) features the new generation of eSATA hard drive enclosures with the 256-bit AES hard encryption to ensure absolute data security should the drive get stolen or lost. The crypto engine inside the Ruby Cipher enclosure handles all the encryption and decryption on the fly with no detectable performance degradation on data transfer. Using native eSATA interface, the Ruby Cipher ExDrive supports the highest performance possible today through an externally connected hard drive enclosure.

The RCED features the new generation of eSATA hard drive enclosures using native eSATA interface for the highest performance possible today through an externally connected hard drive enclosure. Designed for accommodating any standard 2.5" SATA or SATA II or SATA III hard drive, the RCED provides data transfer speeds approximately three times the maximum throughput of traditional drive enclosures utilizing the standard USB or Firewire interfaces. When connected via eSATA interface, drives contained inside the durable and heat resistant Ruby Cipher enclosures are even capable of booting Operating Systems through a compatible eSATA port on a motherboard or add-in card. The shock absorption technology in the drive enclosure together with a rugged anodized housing also provides strong protection to the hard drive against drop and vibration.

The RCED is the ideal external drive solution for large capacity data storage requirements. When connected to Host Controllers with RAID capability, multiple Ruby Cipher enclosures can be implemented with fault-tolerance and increased data throughput RAID configurations. The Ruby Cipher enclosure, small enough to fit easily in the palm of your hand, is designed to handle shocks and perform reliably in mobile application or rough environment with a patented shock proof rugged anodized aluminum housing. The Ruby Cipher drive enclosure comes with Addonics SATA direct interface design that provides an eSATA connector for high speed eSATA interface, as well as an additional SATA connector on the back. This SATA connector allows the Ruby Cipher drive enclosure to be used as a removable cartridge via an optional Ruby Cipher drive cradle installed inside the 3 1/2" drive bay of any computer.

Features

Encryption features (for Ruby Cipher only)

  • Full disk encryption via a hardware-based NIST & CSE certified cryptographic AES engine
  • High performance - Data is encrypted and decrypted on the fly by a certified cryptographic engine inside an ASIC without taking any CPU resources
  • Encryption / Decryption via a hardware key , just like using a regular key to open a door.
    To enable the encryption and access the drive, simply insert the Cipher key into the keyhole of the Ruby Cipher enclosure prior to turning on the power.
  • Simple to deploy with no training required, no software to install and no password to remember
    Platform independen
    cy - There is no software or driver to install to use Addonics encryption products. As a result, it can be deployed in any systems running any OS. This is important in organization with multi platform computing and legacy systems
    Drive Enclosure features
    • Stylish and rugged black anodized aluminum
    • Compact size - fits inside a pocket
    • Light weight
    • Shock proof - up to 3 feet drop damage protection for the hard drive
    • Compatible with any 2.5" SATA 1.5Gbps or SATA 3.0Gbps hard drive with height of 10 mm or less
    • Compatible with 2.5" SATA SSD or Addonics SATA CF hard disk adapter (ADSAHDCF)
    • eSATA connector for external eSATA connection
    • Optional eSATA - USB 2.0 Adapter to connect through USB 2.0 connection
    • Optional USB 3.0 to eSATAp adapter for USB 3.0 connection.
    • Regular SATA connector for use as an internal hot-swap removable hard drive in a 3 1/2 " drive bay with optional Ruby Cipher Drive Cradle
    • Hard drive connectors are isolated by a SATA direct bridge from wear and tear in removable drive application
    • Support large hard drive beyond 137G with single partition.
    • No interface cabling between drive and enclosure for reliable connection.
    • LED for both power and drive access
    • OS support in external hard drive mode
      • eSATA - DOS, Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista, Windows 7, Mac, Linux and Solaris
      • USB - Windows 98SE, Me, 2000, XP, Vista, Windows 7, Mac, Linux and Solaris

    Specifications

    Encrpytion type 256-bit AES hardware encryption via a hardware-based NIST & CSE certified cryptographic AES engine
    Material construction Rugged anodized aluminum
    Supported Drive Type
    • 2.5" SATA 1.5Gbps or 3Gbps hard drive
    • 2.5" SDD with SATA interface
    Supported Interface for Drive Cradle
    • Ruby SATA Drive Cradle
    • Ruby IDE Drive Cradle
    • Ruby USB 2.0/1.1Drive Cradle
    • Ruby SCSI LVD160 Drive Cradle
    Supported interface for Drive Enclosure eSATA, USB 2.0 (with optional USB 2.0 - eSATA Adapter)
    Large hard drive support YES
    Power source: External application: USB port* or 110/220 AC/DC 5V power adapter
    Internal application: 15-pin SATA or 4-pin Molex power from PC power supply
    * power from USB port varies from among different computers and hardware configuration. Large capacity (>80 G) hard drive may also require more power. As a result, USB power on certain system may not be adequate to power the hard drive. In such cas, an external power adapter will be the only option
    Dimensions:
    Drive enclosure: 3.27 x 5.87 x .83 in. (83 x 149 x 21 mm.)
    Drive Cradle: 4.02 x 7.15 x 1 in. (102 x 182 x 25 mm.)
    Weight: 7.3 oz (enclosure without hard drive)
    5.6 oz (drive cradle)
    File Systems: FAT, FAT32, NTFS and HPFS
    Supported OS
    • USB 2.0/1.1 - DOS, Windows 98SE, Me, 2000, XP, 2003, Vista, Windows 7, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
    • SATA - DOS, Windows NT4(SP6), 98SE, Me, 2000, XP, 2003, Vista, Windows 7, Mac OS X, Linux Kernel 2.4 and above*
    *Windows and Mac OS have been tested to hot swap drives using our SATA Host Controllers. Linux may not be able to hot swap without loading an additional module.
    Warranty: One Year

    System Requirements

    • PC/AT or Compatible System
    • One available 3 1/2" drive bay or one of the following ports: USB 2.0, USB 1.1, eSATA
    • Pentium or greater
    • Minimum 32 MB RAM
    • 10 MB minimum free hard disk space
    • One of the following operating systems: DOS, Windows NT(SP6), Windows 98SE / 2000, 2003, Me, XP, Vista, Windows 7, Mac OS, Linux, Solaris

    • No additional files, specification sheets, guides or documentation found for product.

    Warranty: 1 Year Return to Base

    Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
