DS Vision 3000The ultimate in player-to-screen distribution and control
The most comprehensive solution available

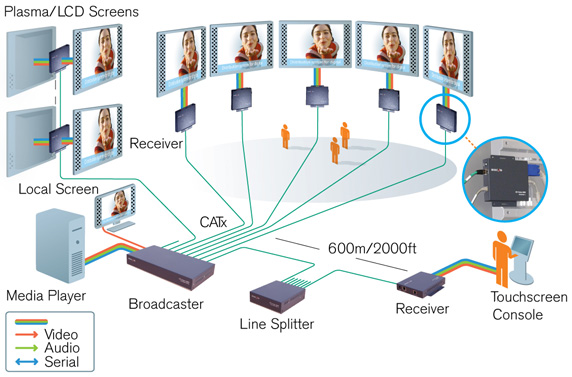

The test of any leading DS last mile network is whether it can deliver high-definition video and stereo-audio from a single player, over CAT5/6/7 cable, to multiple plasma/LCD screens located up to 600m/2000ft away. The most comprehensive system of its kind, DS Vision combines the longest range available with full bi-directional control and the industries only GUI based management program.
Monitor and maximize screen life
The only system on the market to include fully bi-directional RS-232 communication, DS Vision enables you to not only send a command but also query the screen and get a response. No more walking from screen to screen. Remotely monitor screen operation time, view screen status, adjust volume and brightness and turn screens on/off all from your own console. Monitoring screen time helps you to minimize screen wear and tear allowing you to double or even triple the life of your digital signage network.
Freedom to put screens and players where you need them
Place your screens in the most optimal locations to achieve the widest public coverage. Keep your players out of sight and harms way where they can easily be used, serviced and maintained, significantly reducing network downtime. The Dual Cascade Receiver Unit (DCL) for the DS Vision that significantly expands the system's potential by supporting not only star configurations, but also daisy chains. With the DCL you can cascade up to ten units in a row enabling easier positioning of screens and reduced cable clutter. In addition, the DCL has double the power of a regular video receiver allowing you to put two back-to-back screens on a single unit while still controlling each screen separately.
Best return on investment (ROI)
The DS Visions modular design lets you mold the system exactly to your network requirements without superfluous hardware. Combined with the ability to extend screen life and reduce downtime the DS Vision gives you a superb return on your investment. To bring your message alive in the most efficient manner possible, the choice is easy DS Vision 3000.
Technical Specifications
|
|
|
|
|
Resolution
|
|
Up to 1920x1440 @ 60Hz (depending on the cable length)
|
|
|
|
Input/Output Video Signals
|
|
Analog signal red, green, blue 0.7v p-p 75 Ohm
|
|
|
|
Sync
|
|
TTL compatible
|
|
|
|
Horizontal/Vertical Sync
|
|
Positive/Negative
|
|
|
|
System Cable
|
|
CAT5,5e,6,7 UTP/ FTP cable 2x4x24 AWG Solid Wire
|
|
|
Maximum Distance
|
|
600m / 2000ft
|
|
|
|
Skew Compensation
|
|
Up to 63 n sec
|
|
|
|
DDC
|
|
Complies with VESA DDC-2 specification
|
|
|
|
RS-232 Connection
|
|
Full serial = RXD, TXD, DTR, DSR, RTS, CTS
|
|
|
|
Serial baud rate
|
|
57,600
|
|
|
|
Audio
|
|
Stereo
|
|
|
|
Operating Temperature
|
|
5C to 40C / 41F to 104F
|
|
|
|
Storage Temperature
|
|
-40C to 70C / -104F to 158F
|
|
|
|
Warranty
|
|
3 Years
|
|
|
|
|
|
|
|
|
Broadcaster 1/8/16
|
|
Line Splitter Long
|
|
Receiver/ Receiver Long
|
|
Receiver DCL
|
|
Video Tuner
|
|
|
|
Cables & Connectors
|
|
VGA In - HDD15M VGA Local - HDD15F Stereo audio In/Out - Jack PL 3.5mm Serial In - DB9F Serial Local - DB9M System Out -1/8/16 RJ45 Control - RJ11 Power LED-Green (in front)
|
|
System In - RJ45 System Out - RJ45 Control - RJ11 Power LED - Green (in front)
|
|
System In - RJ45 Screen - HDD15F Audio Out - 3.5 Jack L,R, L&R Serial Out - DB9M Tuning- potentio meter/ RJ11 Power LED-Green(on RJ45)
|
|
System In - RJ45 System Out - RJ45 Screen - 2 x HDD15F Audio Out -2 x 3.5 Jack 2 L&R Serial Out- DB9M Tuning- potentio meter/ RJ11 Power LED-Green (on RJ45)
|
|
To Receiver - RJ11 Tuning - 3 button
|
|
|
|
Dimensions
|
|
292.5x153.6 x41.5mm Transmitter 156x143 x40mm
|
|
138x153.7 x41.5mm
|
|
147x145 x26mm (including mounting)
|
|
152x145 x26mm (including mounting)
|
|
93.7x62.1 x28mm
|
|
|
|
Power
|
|
External Adaptor 5VDC 2.5A
|
|
External Adaptor 5VDC 2.5A
|
|
External Adaptor 5VDC 1/2.5A
|
|
External Adaptor 5VDC 2.5A
|
|
From Receiver
|
|
|
