With the Samsung MAX range of air conditioners you can create a comfortable environment at home regardless of the weather outside. Through the use of efficient inverter technology, a Samsung reverse cycle air conditioner can cool or warm your home quickly and then maintain an even temperature with a minimum of fuss.

A filter straight from nature.

 A filter straight from nature.
Samsungs Catechin Filter harnesses the power of Catechin, a bioflavonoid found in green tea that contains helpful antioxidant qualities. Not only does it absorb and decontaminate the air you breathe capturing harmful bacteria and tiny dust particles in the process it helps remove unpleasant odours. So your home stays cool, clean and fresh-smelling. Breathe a sigh of relief thanks to Samsungs innovative air conditioners.

A cool way to keep your air clean.

 A cool way to keep your air clean.

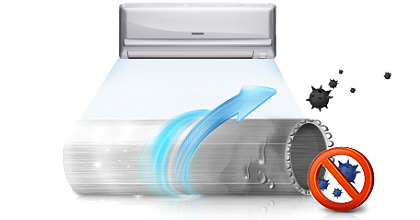

You might not know it, but an air conditioner can produce mold and spread germs. Thats because the difference between internal and external air temperatures causes moisture to form inside the unitand moisture equals bacteria. Our solution? Samsung air conditioners feature auto cleaning, which automatically runs the fan at a low speed, even after you turn it off, keeping everything dry and odour-free while preventing germs from spreading.

Easy to use. Easy to master.

 Easy to use. Easy to master.

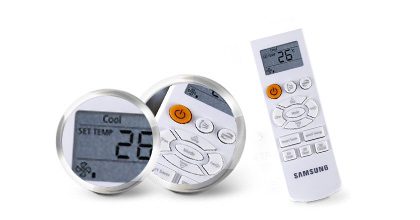

Samsungs ergonomic, innovative remote control was designed for everyone, whether youre in the first grade or celebrating your 81st birthday. With bigger numbers, soft-touch buttons, an easy-view display and a comfy grip, youre always in control. And its circular navigation keypad truly brings power to the people.

Waterfall Heating Air Flow

 Waterfall Heating Air Flow
In conventional models, the indoor units blade could only open up to 70 degrees, which made it difficult to direct heated airflow to the lower spaces of the room. The wide-angle blade system can open the blades to an angle of 90 degrees.
Good Sleep Mode to maximise comfort

Good Sleep Mode to maximise comfort

Samsungs Good Sleep Mode is designed to maintain your optimum skin temperature while you sleep. It gradually lowers the temperature as you are falling asleep, then raises it slightly for the sound sleep stage. Just before your alarm goes off in the morning, the temperature will automatically rise in order to increase your body temperature for a refreshing start to the day.
More precise temperature control to maximise relaxation

More precise temperature control to maximise relaxation

The intelligent S-Inverter Technology in the Samsung Max Range varies power output to maintain the temperature more precisely. By contrast, a non inverter model maintains the temperature by switching the compressor On and Off which means more electricity is used and the temperature control is uneven.
4-step filter system for cleaner and fresher air

4-step filter system for cleaner and fresher air

Via the use of green tea extract and activated carbon particles, the Max Range Air Conditioners are able to filter smoke and unpleasant odours, which helps keep the air in your home cleaner and fresher.
5 Year Warranty to maximise peace of mind

5 Year Warranty to maximise peace of mind

Rest assured that you are buying quality appliances with Samsungs 5 Year Warranty on their Max Air Conditioning Range on parts and labour.

Other Key Features of Samsung MAX Range

Auto Change Over
Turbo Mode
Twin Rotary Compressor (5KW and above)
Automatic restart in the event of power failure
Automatic air flow adjustment to maintain temperatures

Features and specifications are subject to change without prior notification.

Performance Capacity (Cooling, kW) 2.5
Capacity (Heating, kW) 3.2
Moisture Removal (l/hr) 1.0
Noise Level (Indoor High/Low, dB) 43 / 25
Noise Level (Outdoor High, dB) 53
Energy Efficiency EER (Cooling, W/W) 4.31
COP (Heating, W/W) 4.57
Electrical Data Power Source (V/Hz/) 220 ~ 240 / 50 / 1
Power Consumption (Cooling, W) 580
Power Consumption (Heating, Watts) 700
Operating Current (Cooling, A) 2.8
Operating Current (Heating, A) 3.4

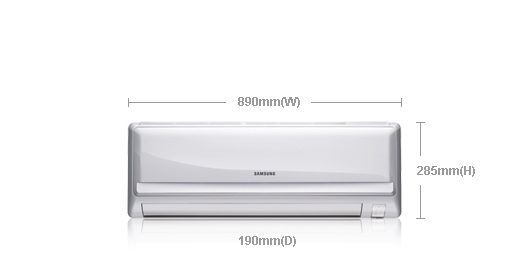

Dimension Net (WxDxH, mm) 890 x 190 x 285
Weight Net (Indoor, kg) 9.2
Net (Outdoor, kg) 36.0
Technical Information SVC Valve (Liquid, OD*L) 6.35mm x 7.5m
SVC Valve (Gas, OD*L) 9.52mm x 7.5m
Piping Length (STD, m) 7.5
Piping Length (Max, m) 15
Piping Height (Max, m) 8
Features Refrigerant Type R410a
Smart Inverter Yes
Good'sleep Mode Yes
Compressor Type ROTARY
Silver Coated Health System Silver Coated Filter Yes
Pure & Clean Air Deodorizing Filter Yes
Catechin Filter Yes
Operating Mode Dehumidification Yes
Turbo Mode Yes
Sleep Mode Yes
Timer Yes
Energy Saving Mode Yes (Smart Saver)
Auto Restart Yes
Auto Changeover Yes
Convenience Auto Wind Yes
Air Flow Control Step (Cool/Fan) 4 / 3
Air Direction Control (Up/Down) AUTO
Air Direction Control (Left/Right) MANUAL
Remote Controller Yes
Low Ambient Cooling () -10 ~ 46
Heating () -15 ~ 24
