Netstor NS-370S RAID System - Black
  • 4x3.5" SAS/SATA HDD, RAID Chassis JBOD, 2x75x75x28mm Fan

IMG 1 of 0
No Longer Available
Part Number:
159688
(?) Brand:
Netstor Web Site
Manuf No:
NS-370S
NS370S
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Date Added:
25/11/2010
Details Files Finance Images & Video
All stock codes associated to this product
NS370S, NS-370S
NS370S
1U 4-bay SAS/SATA JBOD Chassis

NS370Sis a1U4 Bay Hot-Swap Serial Attached SCSI(SAS) or SATA6GbpsEnclosure. It provides users a low cost and high performance external data backup solution.The convenience ofminiSAS(SFF8088) interface brings users an easy installation and a fast data transmission experience.

Features

  • Supports SAS/SATA (3/6 Gbps)
  • Host Connection by high speed 12Gbps of miniSAS(SFF8088)
  • Backplane design for four removable SAS/SATA drive trays
  • Two quiet hotswap blowersfor self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with Power/FAN/TEMP LEDs andmutable buzzer alarm.
    •
    Specifications

    HostInterface SAS/SATA 3/6 Gbps withone miniSAS(SFF8088) x 1
    HDDInterface SAS/SATA 3.0 /6.0 Gbps

    Data Transfer Rate

    		 SASor SATA 3.0/6.0 Gbps
    LED Display

    White- Power on indicator
    Blue - Busy (HDD Accessing) indicator
    LED Display for Environmental Monitoring

    POWER on LED - white
    FAN normal green; fail red (too slow rpm or stop)
    TEMP normal green; over 55C red
    Dimension

    (W):48.2cm (H):4.4cm (D):45.3cm

    Material
    Heavy-duty cold-rolled steelhosing,front panel & Plastic tray face
    Power Supply 220W
    Input: 90 230 VAC 50- 60 Hz
    Output: +5V and +12V DC
    Cooling Two 75 x 75 x28 mmHot-Swappble Blowers
    O.S. support OS Independent

    Application Diagram

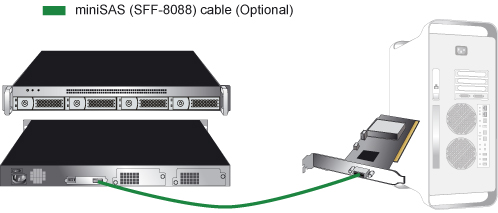

    External SAS Connection Diagram

    Package Content

    Enclosure x 1
    HDD Tray x 4
    mini SASCable x 1 (Optional)
    Power Cord x 1
    Manual CD-ROM x1
    Hard Disk Drive mounting screw x 16
    Key for HDD tray x 2
