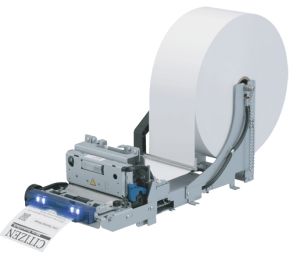

Citizen PPU231R Thermal Kiosk Printer - (Serial Compatiable)

IMG 1 of 1
No Longer Available
Part Number:
15992
(?) Brand:
Citizen
Manuf No:
PPU231R
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
7/8/2001
Details Files Finance Images & Video
All stock codes associated to this product
PPU231R
CITIZEN PMU-2300III Thermal Kiosk printer, fast printing, multiple paper widths, LED lighted bezel and Presenter options, Easy Recovery from Paper jam and Head cleaning.

Features
  • Small foot print compact design
  • 150mm/sec high-speed printing
  • Easy recovery from paper jam and easy head cleaning owing to removable head design
  • Serial, Parallel, USB interfaces available
  • 203mm diameter roll paper holder PHU-203T available (option)
  • Wide variety of paper holding positions (with the optional paper holder PHU-102S)
  • Black mark sensor available (option)
  • Barcode and 2D barcode printing
  • Wider operation temperature range -10C~60C
  • Wider storage temperature range -25C~65C

Specifications

PMU-2300III



Printing Method

Line Thermal Printing

Printing Width

80mm/640 Dots (83mm Paper), 72mm/576 Dots (80mm Paper), 60mm/480 Dots (67mm Paper), 54mm/432 Dots (58mm Paper)

Dot Pitch

8 Dots/mm, 203dpi

Printing Speed

150 mm/sec (max.), 35.4 lines/sec

Number of Columns

80mm Paper: 48 columns (Font A), 64 Columns (Font B), 72 Columns (Font C)

Font Size

1.50mm x 3.00mm (Font A: 12 x 24 dots)

1.13mm x 3.00mm (Font B: 9 x 24 dots)

1.00mm x 2.00mm (Font C: 8 x 16 dots)

Fonts

Alphanumeric, International characters

Barcode type

UPC-A/E, JAN (EAN) 13/8, ITF, CODE39, CODE128, CODABAR, Code 93

Logo Registration/Print

Capable of registering user defined characters and logos into flash memory, 256 K Bytes

Line Spacing

4.23mm (1/6") Selectable by command set (Min. 1/203 inch).

Printing Paper

Thermal Roll Paper width: 58/60/80 mm

External diameter: 102mm max. (with paper holder unit)

Internal diameter: 25.4mm

Paper thickness: 65 to 150 m

Recommended paper: TF-50KS-E-2D, TF-62KS-E (Nippon Paper Industries)

Interface

Parallel

IEEE1284 compliant

Serial

RS-232C

USB



Input Buffer

4K or 45 Bytes (Dipswitch selectable)

Sensors

Paper near end sensor

Paper end sensor

Black mark sensor (option)

Power Source Voltage

24V 7%

Current Consumption

1.9A (peak 6A)

Weight

1.1.kg

External Dimensions

118 x 179 x 96mm

Operating Temperature/Humidity

-20 to 60C, 35 to 85% RH (No condensation)

Storage Temperature/Humidity

-25 to 65 C, 10 to 90% RH (No condensation)

Reliability

Head:

100,000,000 pulses or 100 km

Auto Cutter:

1,000,000 cuts

Safety Standards

UL, C-UL, FCC class A, TUV-CE marking

No additional files, specification sheets, guides or documentation found for product.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
