IDE-CF Adapter PRO

The IDE-CF Adapter PRO enables any CF media to be used as a removable storage media without the need to restart the system, just like using a regular floppy disc. Designed for IDE connection, the IDE-CF Adapter PRO supports all IDE modes and maximum throughput of UDMA6 (133MB/sec). There is no driver to install the IDE-CF Adapter PRO and it is compatible with practically any OS. Once installed, the CF instantly behaves like a SSD (solid state drive) to the OS and can be used as a bootable device. The IDE-CF Adapter PRO is an ideal solution for small industrial PC, Kiosk or any system with IDE interface to utilize CF for data storage or as a high performance boot device.

The IDE-CFAdapter PRO comes with upgradeable firmware to ensure compatibility with future new Flash standard. There is also choice of a READ only model, an ideal solution for the forensic application.

Key Features

  • High Speed IDE connection supporting up to UDMA6 (133 MB/sec) data transfer
  • Direct access of Compact Flash Type I / II
  • Choice of Read/Write or READ only models

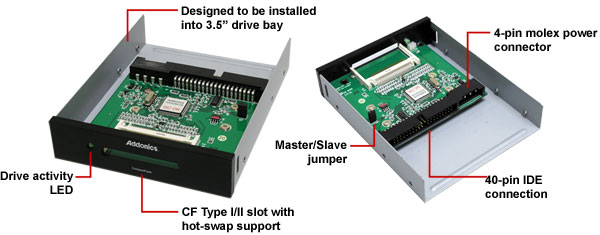

  • Install into standard 3.5" drive bay
  • Master and slave jumper configuration
  • Maximum data transfer rate depends on the speed of the flash media
  • Supports hot swap
  • Single drive icon to access one media at a time
  • upgradeable firmware to ensure future compatibility
  • Green LED to indicate media access
  • Complete Plug and Play
  • No software driver to install. Compatible with practically any OS.

IDE-CF Adapter PRO READ only

Content: IDE-CF Adapter PRO Read only firmware , installation guide


Master / Slave setting via onboard jumper
Maximum Read / Write Speed: all PIO modes, all UDMA modes up to UDMA6 (133MB/s)
Supported media Compact Flash Type I / II
Hot swap media Yes. Media can be removed and added without restarting the system
Supported OS DOS, Windows 7, 2000, XP, 2008, Vista, Mac OS X or higher, Linux
Dimensions: 4 in (W) x 5.5 in (D) x 1 in (H)
Weight: 5.6 oz (159g) (approx. )
Operating Tempera tire & Humidity : 0 C to + 60C, 5 - 95 % RH non condensing
Storage Temperature & Humidity: -20 C to + 60 C , 5 - 90% RH
Warranty: One Year
