Kyman
Hand Held/Pistol Grip
HIGHLIGHTS
RUGGED

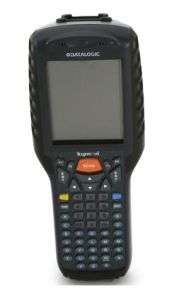

The Kyman™ rugged mobile computer is designed to survive demanding environments and provide ergonomics that reduce operator fatigue. A sturdy outer case with overmold protection ensures reliability and robustness. Kyman™ resists harsh environments, multiple drops, strong shocks, repetitive tumbles and freezing temperature.
FLEXIBLE
Kyman™ is available in hand-held and pistol grip models. Its detachable handle provides maximum flexibility switch between hand-held and pistol grip operations, without affecting Kyman’s™ intrinsic robustness.
VERSATILE
Kyman™ offers a wide range of Data Capture options including bar code and Voice Recognition. Standard laser, high performance laser and extra long range laser options provide data capture from near contact to several meters away. A vast variety of symbologies enable Kyman™ to meet every market and application objective. Kyman™ simultaneously supports WLAN and Personal Area Networks. 802.11 b/g CCX V4 certified offers all the advantages of the Cisco WLAN infrastructure and the latest in security protocols, WPA™ and WPA2™.
STANDARD
Kyman™ maximizes operations for the enterprise using the powerful X Scale PXA270 series processor. The standard Windows Mobile and Windows CE operating systems increase the
return on investment through seamless integration and ease of deployment.
FEATURES
- Laser scanner with “Green spot”, providing good read feedback (Datalogic patent), Standard, High Performance and Extra Long Range Laser reading options
- Microsoft Windows Mobile 6.0 and Microsoft Windows CE 5.0 operating system
- Bluetooth® wireless technology
- Summit embedded 802.11 b/g radio for enterprise-class mobile connectivity with CCX V4 certification
- 1.8 m (6 ft) drop resistance
- IP64 protection class
- Large high visibility color graphic display with touchscreen
- Voice and VoIP support
- Wavelink Powered™ with pre-installed and pre-licensed Wavelink® Avalanche™ and Terminal Emulation
APPLICATIONS
- Warehouse management
- Inventory/picking
- Shipping/receiving
- Shelf replenishment
- Price management
- Field service automation
- Parcel Pick-up and delivery
- Proof of delivery
- Route accounting
- Meter reading
Specifications
PHYSICAL CHARACTERISTICS
DIMENSIONS - 238 x 91 x 55 mm (9.3 x 3.5 x 2.2 in) without handle 238 x 91 x 162 mm (9.3 x 3.5 x 6.3 in) with handle
WEIGHT - 550 - 630 g (19.3 - 22.1 oz) without handle incl. battery 660 - 690 g (23.1 x 24.2 oz) with handle incl.battery
DISPLAY - 64K color TFT LCD with 320 x 240 pixel resolution, with LED backlight and touch screen, 89mm (3.5 in) diagonal
KEYBOARD - 53 full alphanumeric or 36 numeric keys with navigation keys, backlit
OPERATING TEMPERATURE - -20 º to +50 ºC (-4 º to 122 ºF)
STORAGE TEMPERATURE - -20 ºC +70 ºC (-4 º to 158 ºF)
DROP RESISTANCE - Withstands drops from 1.8 m (6 ft) onto concrete
ENVIRONMENTAL SEALING - IP64 standard for water and dust resistance
SYSTEM
OPERATING SYSTEM - Microsoft Windows Mobile 6.0 / Microsoft Windows CE 5.0
MICROPROCESSOR - XScale PXA270 @ 520 MHz SYSTEM RAM MEMORY 128 MB SYSTEM FLASH MEMORY 128 MB (including Backup directory for user data & permanent program storage)
EXPANSION SLOTS - User-accessible mini-SD slot POWER SUPPLY Removable battery pack with rechargeable Li-Ion batteries; 2 cell Li-Ion 2,200 mAh @ 7.4 V (16.3 Watt-hrs); Local connection for fast battery charging
COMMUNICATIONS
INTERFACES - Electrical: 3-pin RS232 up to 115.2 Kbps USB: integrated high speed USB (USB 1.1) Ethernet via multiple cradle desk
LOCAL AREA NETWORK - IEEE 802.11b/g CCX V4 Certified Frequency range: Country dependent, typically 2.4 - 2.5 GHz
PERSONAL AREA NETWORK - IEEE 802.15 Bluetooth® wireless technology (optional) Integrated module
READING OPTIONS - (xxx-9xx/xxx-1xx/xxx-6xx Laser models)
SCANNING RATE - 105 ± 12 scan/s (xxx-9xx); 35 ± 5 scans/s (xxx-1xx); 40 ± 6 scan/s (xxx-6xx)
MAX. RESOLUTION - 0.10 mm/4 mils (xxx-9xx); 0.13 mm/5mils (xxx-1xx); 0.20 mm/7.5 mils (xxx-6xx)
DEPTH OF FIELD - 5 to 64 cm (1.97 to 25.2 in), depending on bar code density (xxx-9xx); 5 to 74 cm (1.97 to 29.1 in), depending on bar code density(xxx-1xx); 15 to 380 cm (5.9 to 149.6 in), depending on bar code density (xxx-6xx)
LASER CLASSIFICATION - VLD - Class 2/II EN 60825-1/CDHR
SOFTWARE
DEVELOPMENT
Windows SDK™
DL Mobility Developer Assistant™
MCL-Collection™
CONFIGURATION & MAINTENANCE
Wavelink® Avalanche™
Datalogic Firmware Utility
Datalogic Desktop Utility
Datalogic Configuration Utility
TERMINAL EMULATION
Wavelink® Terminal Emulation™
UTILITIES
Wavelink® Remote Control
Wavelink® TermProxy
Wavelink® Communicator
Wavelink® SpeakEasy
Vo-CE™
