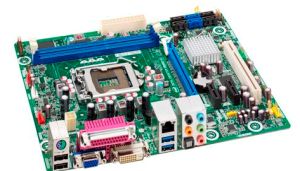

The Intel Desktop Board DH61BE delivers high-end features like USB 3.0, SATA 6 Gb/s, PCIx16 along with VGA and DVI to provide multiple display capabilities, in the MicroATX form factor while supporting the 2nd generation Intel Core processors in the LGA1155 package giving you best-in-class features in a cost effective platform. You can now enjoy surround sound and multi-streaming capability along with integrated Intel PRO 10/100/1000 Network Connection in a low-power design.
This board is equipped with DVI-D and VGA ports to support flexible, dual independent display for processors with Intel HD Graphics delivering superb visual performance for sharper images, richer color, and lifelike video.
Features and configurations
| Form factor |
MicroATX |
| AA# ( Altered Assembly) |
G14062-xxx |
| BIOS ID string |
BEH6110H.86A |
| Processor |
At product launch, this desktop board supports:
- Intel Core i7 processor series in an LGA1155 socket
- Intel Core i5 processor series in an LGA1155 socket
- View all compatible Intel processor numbers
|
| Memory |
- Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
- Support for DDR3 1333 /1066 MHz DIMMs
- Support for up to 16 GB2 of system memory
|
| Chipset |
- Intel H61 Express Chipset
|
| Audio |
Intel High Definition Audio (Intel HD Audio)3 subsystem in the following configuration:
- 8-channel audio subsystem with three analog audio outputs using the Realtek ALC892* audio codec
|
| Graphics |
DVI-D and VGA connectors for processors with Intel HD Graphics |
| LAN support |
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82579V Gigabit Ethernet Controller |
| Peripheral interfaces |
- Two USB 3.0 ports
- Up to ten USB 2.0 ports
- Two Serial ATA 3.0 Gb/s ports
- Two Serial ATA 6.0 Gb/s ports
- One Serial header
- One parallel port
|
| Expansion capabilities |
- One PCI Express* 2.0 x 16 bus add-in card connector
- Two PCI Express 2.0 x 1 connectors
- One PCI Conventional bus connector
|
