These fast and efficient hard drives with 7200 RPM spin speed, 16 MB cache, and SATA 3 Gb/s interface are sure to satisfy even the most demanding notebook users.
Low power consumption.
With 5400 RPM-equivalent power consumption there is no compromise in battery life.
Advanced Format (AF)
Technology being adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities. (BPKT models only)
Reliable and rugged.
WD's ShockGuard technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Tested for compatibility.
We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab and Mobile Compatibility Lab to give WD customers confidence that our drives will work in their systems.
Quiet.
In a notebook drive, silence is golden. WD's exclusive WhisperDrive combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market.
Ideal for:
Portable digital devices of all kinds including notebook computers, external storage, and digital media players.
Specifications

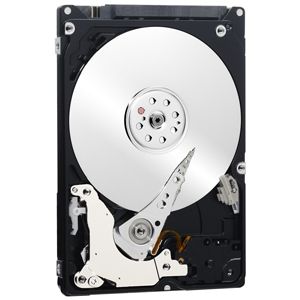

WD Scorpio Black 500 GB SATA Hard Drives ( WD5000BPKT)
| Performance Specifications |
|
 |
Rotational Speed |
7,200 RPM (nominal) |
|
Buffer Size |
16 MB |
| |
| Transfer Rates |
|
Buffer To Host (Serial ATA) |
3 Gb/s (Max) |
| |
| Physical Specifications |
|
|
Formatted Capacity |
500,107 MB |
|
Capacity |
500 GB |
|
Interface |
SATA 3 Gb/s |
| |
| Physical Dimensions |
|
| English |
|
Height |
0.374 Inches |
|
Depth |
3.94 Inches |
|
Width |
2.75 Inches |
|
Weight |
0.25 Pounds |
| |
| Metric |
|
Height |
9.5 mm |
|
Depth |
100 mm |
|
Width |
69.85 mm |
|
Weight |
0.155 kg |
|
| Environmental Specifications |
|
| Acoustics |
|
Idle Mode |
28 dBA (average) |
|
Seek Mode 0 |
28 dBA (average) |
| |
| Temperature (English) |
|
Operating |
32 F to 140 F |
|
Non-operating |
-40 F to 158 F |
| |
| Temperature (Metric) |
|
Operating |
-0 C to 60 C |
|
Non-operating |
-40 C to 70 C |
| |
| Humidity |
|
Operating |
8% to 95% Non-condensing |
|
Non-operating |
5-95% RH non-condensing |
| |
| Altitude (English) |
|
Operating |
-1,000 feet to 10,000 feet |
|
Non-operating |
-1,000 feet to 40,000 feet |
| |
| Altitude (Metric) |
|
Operating |
-305M to 3,050M |
|
Non-operating |
-305M to 12,200M |
| |
| Vibration |
|
Operating |
0.00459 g/Hz (10 to 500 Hz) |
|
Non-operating |
0.05102 g/Hz (10 to 500 Hz) |
| |
| Electrical Specifications |
|
| Current Requirements |
|
Power Dissipation |
|
Read/Write |
1.75 Watts |
|
Idle |
0.80 Watts |
|
Standby |
0.40 Watts |
|
Sleep |
0.40 Watts |
| |
| As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second. |
