The AVerComm H300 is an HD videoconferencing system integrated with all the functions needed for effective conferencing over any distance. At a surprisingly competitive price, the AVerComm H300 is equipped with Multipoint conferencing up to 4 sites, two-way Content Sharing, Snapshot Sharing, Meeting Recording and more, making it ideal for use in large offices and company headquarters.

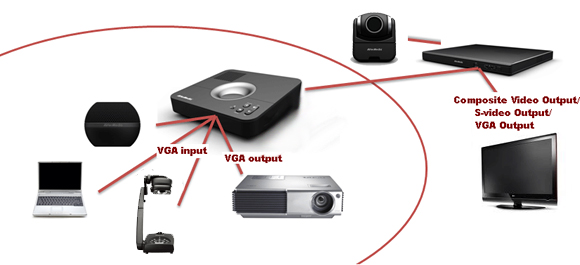

Put it on your table and connect everything fast, easily, and tidily.

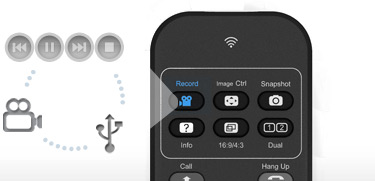

The unprecedented one-touch meeting recording feature helps to keep meeting minutes by recording whatever audio, video and shared content there is during the video conference. Simply press one button to record the meeting and play it back afterward using the H300; no other equipment is required.

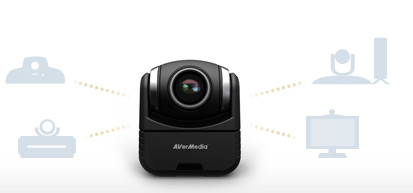

Support H.323 and H.239 protocol
The AVerComm 300 is compatible with any far-site device supporting H.323 protocol, and H.239 for content sharing.

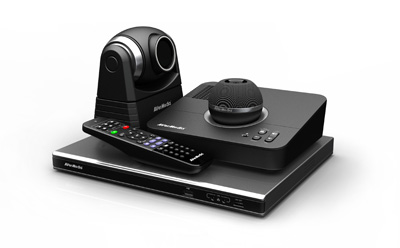

Package Included
- AVerComm H300 codec
- HD quality PTZ camera
- Table Hub with Embedded 10W Speaker
- Microphone pod (omnidirectional)
- Remote control
- Manual CD
- Power adapter
- Power cord
- 26pin DSub cable for camera
- 26pin DSub cable for hub
- 6P4C microphone pod cable
- RGB cable
- S-Video cable
- RCA cable
- Phone to RCA audio cable
- Camera mount for LCD TV
The AVerComm H300, with its great performance and integrated functions, can serve the needs of many different office scenarios, such as the following examples:

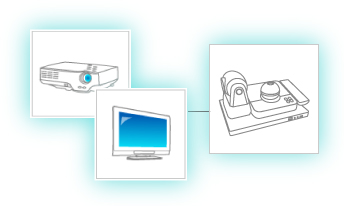

1. Routine daily meetingspoint to point
Many businesses desire a simpler way to hold their routine daily meetings. Simply connect your AVerComm H100 to any kind of display device and hold your meeting quickly and easily.

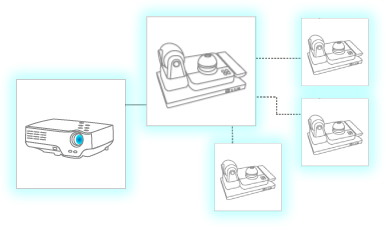

2. Emergent decision making Multipoint communication
AVerComm H300 supports up to 4 sites multipoint communication. Thus, with one AVerComm H300, you can connect to any other three H.323 supported end-points and bring in experts and decision makers from different locations in a minute, accelerating the decision making process.
3. Monthly report—dual screen display supported
To keep employees across the globe closely connected, frequent face-to-face meetings are necessary. The AVerComm H300, supporting dual screen display capabilities, allows you to project shared content on one screen and live video feed on the other, presenting everything at the same time.
4. Demonstration—(visualizer) document camera applications
Connecting a visualizer (document camera) to your AVerComm H300 allows you to display your real-life products, models, and/or documents to everyone in the meeting. While displaying the content from the visualizer (document camera), the live camera images are still present, making communication more interactive and more natural.

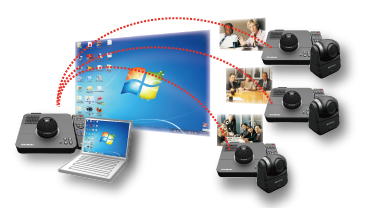

5. Quarterly training—content sharing
Connecting a laptop to an AVerComm H300 allows you to share the content from your PC with everyone in the conversation. Thus, a training session can be delivered to multiple branches simultaneously, which allows you to leverage your talent pool and save lots on training costs.

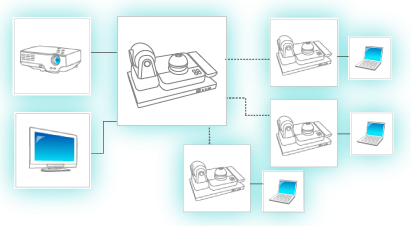

6. Annual eventmultipoint presentation
Supporting dual monitor display makes the AVerComm H300 a suitable choice for larger conference rooms. By holding an annual event via the AVerComm series, anyone can share content with the other participants or see presentations being displayed from one of the far sites. With the AVerComm H300 you can get everyone together easily without the trouble and high costs of business travel.
Specifications
System Includes
AVerMedia Main System
HD Quality PTZ Camera
Table Hub
Microphone
IR Remote Control
Connection cables
Communications
H.323 standard
128Kbps ~ 4Mbps
1xRJ-45 network LAN (10/100Mbps)
Manual bandwidth setting
Display
Support NTSC/PAL/XGA(4:3 RGB)/720p(16:9 RGB) display
Support single and dual monitor display
Multiple meeting video and content layout styles
Simple, friendly, and stylish User Interface
Site-name edit/display
Video Standards
H.264, H.263, H.263+, H.261
H.239 dual video streams
Video Features
Support meeting video resolutions:
- QSIF(176x120)
- QCIF(176x144)
- SIF(352x240)
- CIF(352x288)
- 4SIF(704x480)
- 4CIF(704x576)
- 720p(1280x720)
Support content video resolutions:
- VGA(640x480)
- SGA(800x600)
- XGA(1024x768)
Support robust rate control mechanism
Support H.239 dual video stream shared from local or remote side
Camera
AVerMedia-designed
7X Optical zoom camera
PTZ function
Resolution up to 5 Mega-pixels
Video Inputs
PTZ Camera input
Composite video Input
S-video Input
VGA Input (For dual stream content)
Video Outputs
VGA video Output *2
Composite video(RCA) Output
S-video Output
Audio Features
Echo Cancellation
Auto Gain Control
Noise Suppression
Audio Standards
G.711, G.722, G.722.1, G.728, G.722.1C
Audio Inputs
RCA Audio Input
Audio Outputs
RCA Audio Output
Multi-sites Features
H.323 Standard
MCU up to 4 sites
Content sharing from any sites
Video Conference Auxiliaries
Meeting Recording Function
- Store meeting record in your USB drive
- Support playback and layout function as live meeting

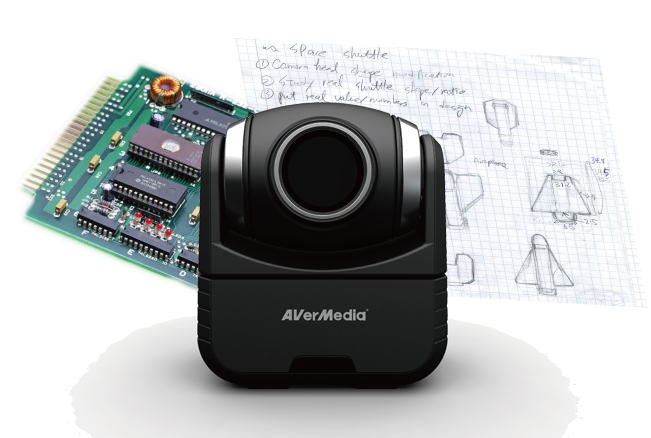

Snapshot function
- With 5M pixel camera, snap- shot image and share with meeting members
- Zoom/Pan the captured images
Others
Embedded 10W speaker
Programs updatable from Ethernet or USB drive
Upload and manage phone book by internet
