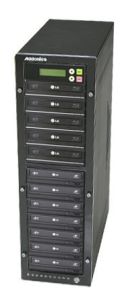

Addonics DigiCopier B4D11 BR-DVD Duplicator - 4xSATA Blu-Ray, 7xSATA DVD-DL, 1xeSATA Port

IMG 1 of 1
No Longer Available
Part Number:
170747
(?) Brand:
Addonics Web Site
Manuf No:
DGBR4DR11
Shipping Weight:
40 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
DGBR4DR11
***Please Note: It is required that the Unit be connected to a Port Multiplier compatible eSATA Host Controller for the System to see all drives. It is assumed that the driver for the eSATA Host Cotroller is correctly installed.***

BR-DVD DigiCopier B4D11 - duplicate up to 4 Blu-Ray, 11 DVD or 11 CD disc at one time.
Package content: 1:11 duplicator with one 10X Blu-Ray/DVD source drive, four 10X Blu-Ray/DVD combo & seven 22X- Dual layer DVD+/-R/RW target drives installed, user manual



1,2,3! That is how easy it is to copy a Blu-Ray, DVD or a CD with the Addonics family of Blu-Ray/DVD DigiCopier! You can copy any Blu-Ray, DVD or CD disc without a computer. All you need to do is place the master disc into the source drive located on the top of the unit and a blank media into the rest of the other drives below the source drive. Close all the drive doors and start the copying process, and within a few minutes your Blu-Ray, DVD or CD disc is copied.

Designed to take advantage of the high performance SATA technologies, all Addonics Digicopiers are equipped with the latest high speed SATA optical drives that are available in the market. There are choices of four models to offer disc duplication of 1 copy, 3 copies, 7 copies or up to 11 copies at one time depending on your volume requirement. Each model is equipped with a user friendly LCM control module that provides a rich set of option configuration choices.

An eSATA port is also available on the back of each DigiCopier for attaching an optional external eSATA hard drive. With the additional of an eSATA hard drive, CD or DVD image can be copied onto the hard drive to use as a source. You can store as many images as needed depending on the compactly of your hard drive. By using the hard drive as a source, all optical drives in the Digicopier are now available to use as the target drive, further increase the copying capacity. So for the 1:1 DigiCopier, instead of making only 1 copy at a time, you can now double the volume by making 2 copies at a time when using the hard drive as the image source.

Operation illustration ( 1:3 Blu-Ray/DVD/CD DigiCopier is shown)

Features

  • Choice of models for 1 to 11, 1 to 7, 1 to 3, or 1 to 1 Blu-Ray/DVD duplicator
  • Choice of models with mixed Blu-Ray/DVD combo and DVD-RRW drives or customize your own combination
  • Operate as stand alone appliance. No computer required
  • User-friendly interface and intuitive message display on the LCM control module
  • High speed 10X Blu-Ray / 22X SATA DVD target drive for maximum throughput
  • Support copying* of Blu-Ray, CD, DVD, DVD dual layer
  • High-speed simultaneous recording
  • Copy per cycle completes in as little as 6 minutes or less for a 4.5G DVD source image when copying onto 16X DVD media.
  • Built-in eSATA port on the back for attaching an optional 3.5" or 2.5" eSATA hard drive to use as the source drive for storing disk images (.ISO format). When using the eSATA hard drive as the source drive, all optical drives in the unit can be used as target drives to increase copying capacity
  • Edit track feature collects audio tracks on a number of CDs and merges them onto a single CD compilation (or a partition on the optional external eSATA hard drive)
  • LCM control module provides a rich set of robust advanced configuration options (diagram of duplicator features can be viewed here) accessible via the
    • Configure burn speed
    • Auto verify/compare/prescan
    • Burn on the fly (or copy to hard drive first)
    • Disk At Once or Track At Once burn modes
    • DVD disc full/quick erase
  • firmware update using DVD-ROM disc
  • 110/240V universal power supply for worldwide use

*Note: copy-protected material may not duplicate succcessfully in these duplicators

Specifications

Model DGBRC1 DGBRC3 DGBRC7, DGBR3DR7 DGBRC11, DGBR4DR11

Source and Destination Drives

Blu-Ray Read/Writer + DVD+/-R/RW/DL combo drive

Write Speed

BD-R (SL/DL) 2x, 4x CLV, 6x, 8x PCAV / 2x,4x CLV, 6x PCAV, 8X CAV
BD-R (SL L to H) 2x CLV
BD-RE (SL/DL) 2x CLV/ 2x CLV

DVD-R 2x, 4x CLV, 8x ZCLV, 8x, 12x PCAV, 16x CAV
DVD-R DL 2x, 4x CLV
DVD-RW (SL/DL) 1x, 2x, 4x, 6x CLV / Not support
DVD-RAM 2x, 3x CLV, 3-5x PCAV

DVD+R 2.4x, 4x CLV, 8x ZCLV, 8x, 12x PCAV, 16x CAV
DVD+R DL 2.4x, 4x CLV
DVD+RW (SL/DL) 2.4x, 4x, 6x CLV, 8x ZCLV / Not support
CD-R 8x, 16x CLV, 24x, 32x, 40x PCAV, 48x CAV
CD-RW 4x, 10x, 16x CLV, 24x ZCLV

Read Speed

BD-ROM (SL/DL) 8x / 8x CAV
BD-R (SL L to H) 4x CAV
BD-R (SL/DL) 8x / 8x CAV
BD-RE (SL/DL) 4.8x / 4.8x CAV

BDMV (AACS Compliant Disc) 4.8x CAV

DVD-ROM (SL/DL) 16x / 12x CAV
DVD-R (SL/DL) 16x / 8x CAV
DVD-RW (SL/DL) 10x CAV / Not support
DVD+R (SL/DL) 16x / 8x CAV
DVD+RW (SL/DL) 10x CAV / Not support
DVD-RAM 2x, 3x CLV, 3x-5x PCAV
DVD-Video (CSS Compliant Disc) 4.8x CAV (SL/DL)

CD-R/RW/ROM 48x / 40x / 48x CAV
CD-DA (DAE) 40x CAV
80 mm CD 16x CAV
Read / Write Format (1) Reads data in BD-ROM
(2) Reads and write in each BD-R SL/DL, BD-RE SL/DL
(3) Reads data in each DVD-ROM,DVD-R(Ver.1.0,Ver.2.0 for Authoring)
(4) Reads and writes in each DVD-R (Ver.2.1 for General), DVD-R DL, DVD-RW, DVD+R,
DVD+R DL,DVD+RW and DVD- RAM
(5) Reads data in each CD-ROM, CD-ROM XA, CD-I, Video CD, CD-Extra and CD-Text
(6) Reads data in Photo CD (Single and Multi session )
(7) Reads standard CD-DA
(8) Reads and writes CD-R discs conforming to Orange Book Part 2
(9) Reads and writes CD-RW discs conforming to Orange Book Part 3
(10) Reads DVD-RAM with CPRM ,DVD-R with CPRM, and DVD-RW with CPRM
(11) LightScribe MV1.2-N Single Layer DVD +/- R Media Specification
(12) LightScribe MV1.2-N CD-R Media Specification
Access Time BD-ROM 180 ms typ
DVD-ROM 160 ms typ.
DVD-RAM 180 ms typ.
CD-ROM 150 ms typ.

Power Supply (110/240 AC)

80 watts Max

320 watts Max 400 watts Max 500 watts Max

Product Weight

~ 7.4 lb (3.36kg)

 ~ 15.5 lb (7.03kg) ~ 21 lb (9.53kg) ~ 47lb (21.32 Kg)

Product Dimensions
(w x d x h inches)

~ 7.5 x 10.5 x 6.5

~ 7.5 x 16 x 10.4 ~ 7.5 x 16.7 x 17.2 ~ 7.5 x 15.8 x 24.4
Operating Temperature (C)

0C - 50 C
Operating Humidity (RH) 5 - 90%
Storage Temperature (C) 0C - 50 C
Storage Humidity (RH) 10% - 90%

Warranty:

One Year



No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
