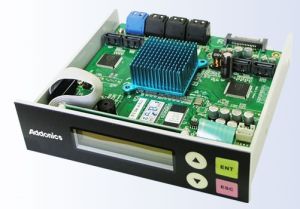

HDU11SAS | Addonics HDD Duplicator SubSystem - 1xSATA Source + 12xSATA Destination, LCD Display, Up to 1.5Gbps

The Addonics family of hard drive duplicator controllers provide a simple fast drive copying solution without using a computer. Designed to install into standard 5 1/4" drive bay of any computer chassis and be powered by a standard PC power supply, any SATA hard drive or SSD, from 1.8" to 3.5" form factor, can be connected to the source and target port of the duplicator controller. There are choices of three models to offer duplication of 1 copy, 5 copies, or 11 copies at one time depending on your volume requirement. It is an ideal solution for making back up copy of hard drives or for transferring OS and software between different type of hard drives. Together with Addonics family of Storage Tower and Mobile Racks, you can custom build your own hard disk duplicator solution with unlimited possibilities.



• Choice of models for 1 to 11, 1 to 5, or 1 to 1 duplicator
• Install into any 5 1/4" drive bay

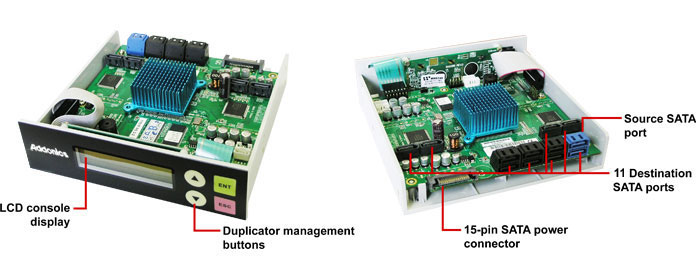

• Standard SATA ports for connecting the source drive and destination drive
• Maximum transfer rate:
  • 1:1 duplicator - up to 1.5 Gbps*
  • 1:5 duplicator and 1:11 duplicator - up to 3.0 Gbps*
• Supported maximum drive capacity:
  • 1:1 duplicator - up to 2TB (new firmware for larger capacity is expected to be available in 30 days)
  • 1:5 - 1:11 duplicator - no capacity limitation
• Power connector onboard for connecting to standard PC power supply
• Make exact copy of any SATA hard drive or SDD to any SATA hard drive or SSD.
• Can also copy IDE hard drive attaching optional IDE- SATA converter (model #: ADIDESA) to the hard drive.
• Great for cloning another hard drive or for making a back up hard drive.
• OS independent
• LCM control module provides a rich set of robust advanced configuration options
• Operate as a stand alone appliance. No computer or software needed
• Self diagnostics when power on
• Easy operation without software and training are required
• Full LCD console feature list
  * Actual transfer rate depends on the speed of the source and destination drive

Specification

• Writing mode : Sector to Sector
• LCD display with functional control panel
• 8MB SDRAM for data buffer
• 2 independent SATA interface channels on HDUSAS
• 6 independent SATA interface channels on HDU5SAS
• 12 independent SATA interface channels on HDU11SAS
• Support Device : Hard Disk / SSD
• Power Source : 4P power connection from standard PC power supply
• Dimensions: 5.87 x 5.67 x 1.73 inch (149 x 144 x 44 mm) (W x D x H)
• Weight: 6.95oz (197g)
• Operating environment: 0 - 60 degree C, 15% - 90% RH
• Storage environment: (- 20) - (65) degree C, 0% - 95% RH non-condensing

Specification subject to change without notice
