All stock codes associated to this product
HBA92114iSGL, HBA-9211-4i-SGL

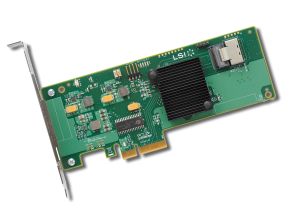

The LSI SAS 9211-4i host bus adapter provides the greatest available throughput to internal server storage arrays through four internal 6Gb/s ports, driving up to 256 SAS and SATA physical devices. This HBA offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. Utilizing one internal x4 SFF8087 Mini-SAS connector, the low-profile SAS 9211-4i is an excellent fit for 1U and 2U servers.
The SAS 9211-4i utilizes the embedded CPU in the LSISAS2008 controller to perform Integrated RAID 0, 1, 1E and 10 operations for reliable data protection with high-availability. The result is an ultra-thin, low-overhead device driver communicating over the x4 PCI Express 2.0 host interface. By reducing RAID code overhead, this HBA delivers high-speed READ/WRITE performance, making it perfect for medium to high-capacity internal storage applications.
Features
-
6Gb/s data transfer rate per port
-
One x4 internal SFF8087 Mini-SAS connector
-
x4 5GT/s PCI Express 2.0 host interface
-
MD2 low-profile form-factor design
-
Maximum power usage of 9W
-
Integrated RAID 0, 1, 1E, and 10
-
Connects to SAS and SATA HDDs, SSDs, and tape drives
-
Support for up to 256 physical devices
-
Fusion-MPT architecture can achieve more than 290,000 I/Os per second
-
Consistency Check
-
Hot Spare Support
-
SMART error detection
-
PowerPC 440 @533MHz
-
Supports all major operating systems
-
RoHS compliant
-
Three-year standard warranty
Benefits
-
Flexible SATA+SAS array architecture optimizes cost
-
4 internal high-speed SAS ports for maximum storage connectivity
-
6Gb/s per port delivers 2400 MB/s full duplex
-
SATA+SAS interconnect proven through the LSI robust serial technology
-
Environmentally friendly due to low-power consumption
-
Integrated RAID avoids additional host CPU overhead
