• Compliance with the newest Intel standard ATX 12V V2.3
  • Support dual +12V1 and +12V2 outputs for higher power usage

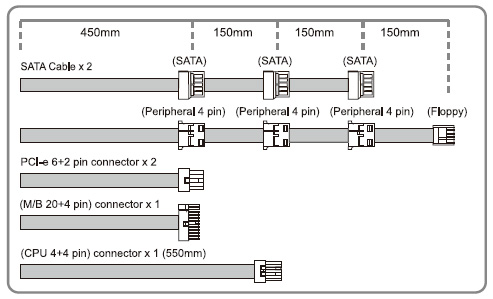

  • SATA Connector x 6
  • Two-year warranty
  • High reliability (MTBF > 100,000 hours
  • Protection design (OVP/OCP/OPP/SCP)
  • More than 70% better efficiency at typical load operation
  • 6+2Pin PCI-e Connector x 2 Connector x 6

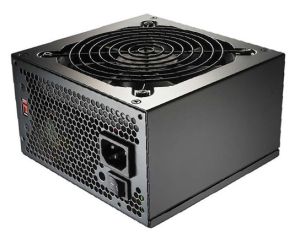

Model RS600-PCARE3-AU
Type Intel Form Factor ATX12V V2.3
Dimension 150 x 140 x 86 mm
5.91 x 5.52 x 3.39 inches
Input Voltage 110 ~ 115V / 220 ~ 230V
Input Current [email protected] / [email protected]
Input Frequency Range 47 ~ 63Hz
Power Good Signal 100 ~ 500ms
Hold Up Time >17ms
Efficiency 70% Typically
MTBF >100,000 Hours
Protection OVP / OPP / SCP
Operation Temperature 5~40 C (Nominal Input Voltage)
Fan 120mm fan
Certification Nemko / TUV / UL / CE / BSMI / FCC / GOST / C-tick
Warranty 2 years
UPC Code 884102003066

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
