All stock codes associated to this product
G410GD04S000020, GD04S
Introduction
The Grandia GD04 is an incredible product that combines years of SilverStone expertise in SFF (Small form factor) and HTPC (Home Theater Personal Computer) chassis design. It has a beautifully proportioned exterior and powerful thermal capability that rivals the best tower chassis. From the front, the GD04 is shaped similarly to most home theater components, but the depth was reduced to a mere 323mm. This overall size of 21.5 liters in volume actually makes the case one liter smaller than SilverStones own Micro-ATX Sugo cases! Even though GD04s diminutive size allows it to easily integrate into any home theater cabinet, it can still accommodate an impressive list of standard components such as 5.25 optical drive, two 3.5 hard drives, a 2.5 SSD, a standard ATX power supply, and two high-end graphics cards up to 11 inches. Cooling duty in the GD04 is handled by three filtered 120mm fans designed with the same positive air pressure as the Fortress FT01, this enables class-leading cooling efficiency, reduced dust buildup, and silent operation. To make installation simpler, there is even enough space for cable management to be easily accomplished without the need for short cabled or modular power supply. Coupled with special attention given to the order of installation, any user can quickly assemble or upgrade the GD04 and devote more time to enjoying a personalized digital life with an HTPC.
Special Features
Three silent 120mm fans included
Positive air pressure design for excellent cooling/quietness and dust-prevention
Thick 8.0mm aluminum front panel with premium styling
Incredible 323mm depth to fit comfortably inside home theater cabinet
Designed with cable routing for easy installation
Support power supply up to 180mm long
Support expansion cards up to 11 inches
Support 2.5 hard drive or SSD (Solid-state drive)
Remark
Graphic card length reference:
AMD Radeon HD 5870 11"
NVIDIA GeForce GTX295/280/260/275 - 10.5"
NVIDIA GeForce 9800GTX/9800GTX+ - 10.5"
AMD Radeon HD 4870X2 - 10.5"
AMD Radeon HD 5850 - 9.5"
NVIDIA GeForce 9800GTX/9600GT/GTO - 9"
AMD Radeon HD 4870/4850 - 9"

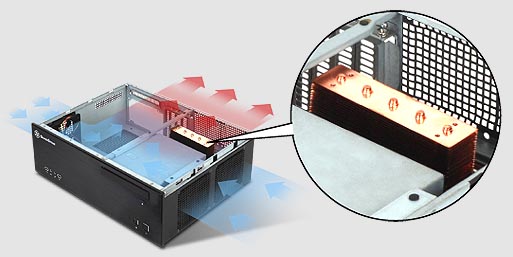

SilverStone NT01-E CPU cooler insinde GD04.
Specifications
|
Model No.
|
SST-GD04B(Black)
|
|
SST-GD04S(Silver)
|
|
--
|
|
--
|
|
Material
|
8.0mm aluminum front panel, 0.8mm SECC body
|
|
Motherboard
|
Micro ATX
|
|
Multimedia
|
--
|
|
Drive Bay
|
External |
5.25" x 1
|
|
--
|
| Internal |
3.5" x 2 , 2.5 x 1 or 3.5" x 1 , 2.5 x 2
|
|
Cooling System
|
Front |
--
|
| Rear |
2 x 80mm fan slots (optional mounting)
|
| Side |
Right: 2 x 120mm intake fans, 1200rpm, 20dBA Left: 1 x 120mm intake fan, 1200rpm, 20dBA
Also compatible with 80mm fan
|
| Top |
--
|
| Bottom |
--
|
| Internal |
--
|
|
Expansion Slot
|
5
|
|
Front I/O Port
|
USB2.0 x 2
audio x 1
MIC x 1
|
|
Power Supply
|
Support standard PS2 (ATX)
|
|
Expansion Card
|
Support graphic cards up to 11 inches.
|
|
Net Weight
|
5.54kg
|
|
Dimension
|
440 mm (W) x 150 mm (H) x 323 mm (D)
|
|
Extra
|
--
|
| Remark |
| |
CPU cooler height limitation
When optical drive is used, the GD04 has 70mm height limitation for CPU cooler. If no optical drive is installed, the height limit for CPU cooler increases to 120mm
If a silent CPU cooling solution is required, we recommend using the SilverStone NT01-E in fanless configuration for 65W rated or lower CPUs. |
