All stock codes associated to this product
WD10JPVT
WD10JPVT
Mobile Hard Drives
WD Scorpio Blue
Interface:
SATA 3 Gb/s, SATA 1.5 Gb/s, PATA 100 MB/s
Capacity:
80 GB - 1 TB
Massive 1 TB capacity.
Storage capacity for 2.5-inch form factor drives with standard 9.5 mm height has arrived at a realm once thought to be impossible - up to 1 TB - giving you all the capacity you need to keep your photos, music and files right there on your notebook.
Low power consumption.
State-of-the-art seeking algorithms and advanced power management features ensure low power consumption and long battery life.
Ultra quiet.
In a notebook drive, silence is golden. WD's exclusive WhisperDrive technology yields one of the quietest 2.5-inch hard drives on the market.
Did you know...
It's easy to install an internal hard drive in your computer.
Reliable.
WD's SecurePark parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Rugged.
WD's ShockGuard technology protects the drive mechanics and platter surfaces from shocks.
Advanced Format (AF).
Technology being adopted by WD and other drive manufacturers to continue growing hard drive capacities. New drives featuring AF are optimized for operation with Windows 7, Windows Vista and Mac OS X Tiger, Leopard, Snow Leopard. For older operating systems such as Windows XP, users must run the free WD Align software utility to achieve the full performance of the drive.
Tested for compatibility.
We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab and Mobile Compatibility Lab to give our customers confidence that our drives will work in their systems.
Ideal for:
Portable digital devices of all kinds including notebook computers, external storage, and digital media players.

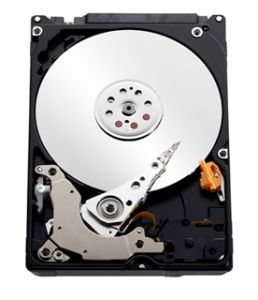

WD Scorpio Blue 1 TB SATA Hard Drives ( WD10JPVT)
| Performance Specifications |
|
| |
Rotational Speed |
5,400 RPM (nominal) |
| |
Buffer Size |
8 MB |
| |
Average Latency |
5.50 ms (nominal) |
| |
| Transfer Rates |
| |
Buffer To Host (Serial ATA) |
3 Gb/s (Max) |
| |
| Physical Specifications |
|
| |
Formatted Capacity |
1,000,204 MB |
| |
Capacity |
1 TB |
| |
Interface |
SATA 3 Gb/s |
| |
User Sectors Per Drive |
1,953,525,168 |
| |
| Physical Dimensions |
|
| English |
| |
Height |
0.374 Inches |
| |
Depth |
3.94 Inches |
| |
Width |
2.75 Inches |
| |
Weight |
0.27 Pounds |
| |
| Metric |
| |
Height |
9.5 mm |
| |
Depth |
100.2 mm |
| |
Width |
69.85 mm |
| |
Weight |
0.11 kg |
| |
| Environmental Specifications |
|
| Acoustics |
| |
Idle Mode |
22 dBA (average) |
| |
Seek Mode 0 |
25 dBA (average) |
| |
| Temperature (English) |
| |
Operating |
32 F to 140 F |
| |
Non-operating |
-40 F to 149 F |
| |
| Temperature (Metric) |
| |
Operating |
-0 C to 60 C |
| |
Non-operating |
-40 C to 65 C |
| |
| Humidity |
| |
Operating |
8% to 95% Non-condensing |
| |
Non-operating |
5-95% RH non-condensing |
| |
| Altitude (Metric) |
| |
Operating |
-305M to 3,050M |
| |
Non-operating |
-305M to 12,200M |
| |
| Electrical Specifications |
|
| Current Requirements |
| |
Power Dissipation |
| |
Read/Write |
1.4 Watts |
| |
Idle |
0.59 Watts |
| |
Standby |
0.18 Watts |
| |
Sleep |
0.18 Watts |
| |
| As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second. |
